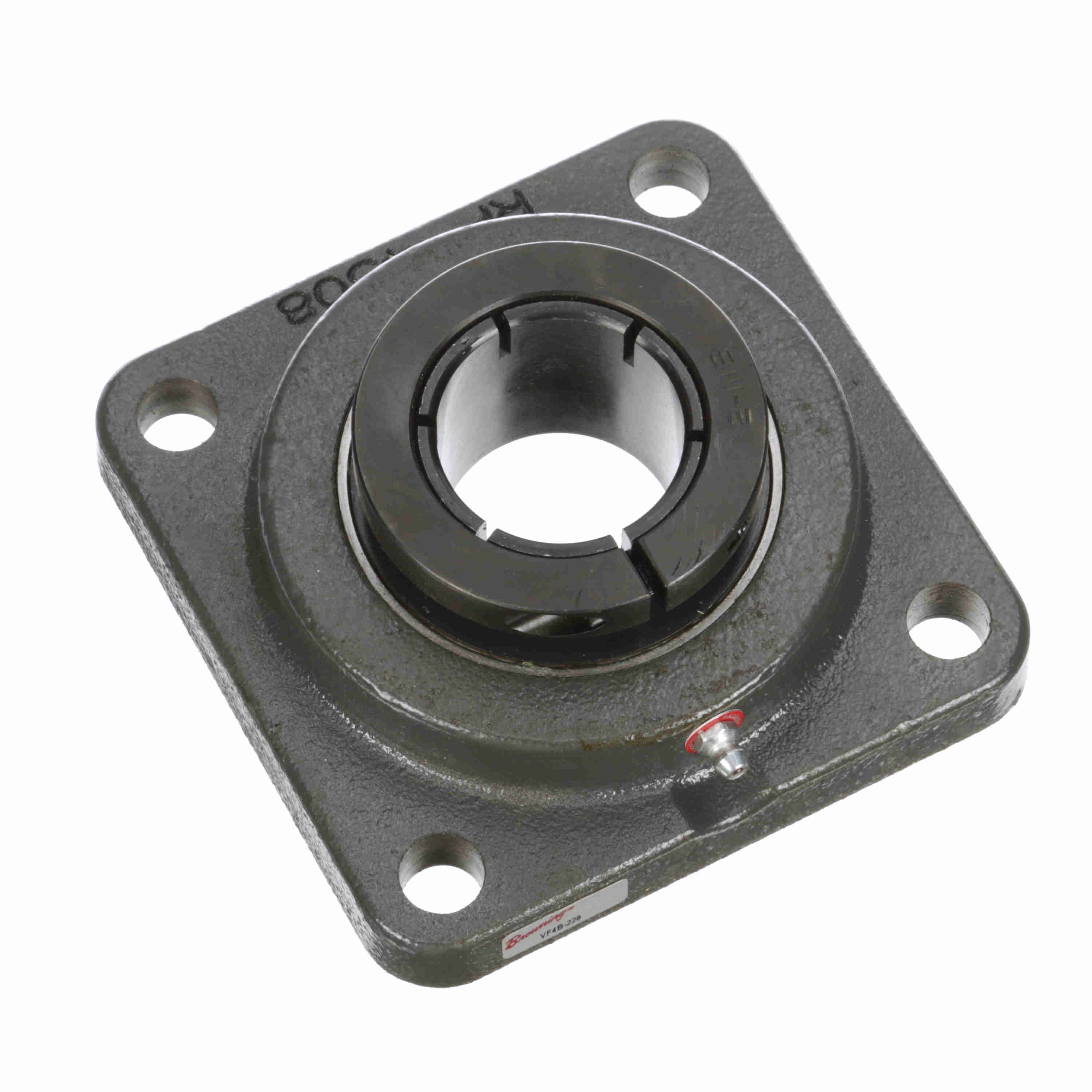

BROWNING VF4B-228 766237 Ball Bearing Unit, 1-3/4 Inch Bore, 4-Bolt Flange Mount, Concentric Collar Locking
Get it by Monday, Aug 17
€218.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 4 1/8" |
| Bore Dia. | 1 3/4" |
| Duty Type | Standard Duty |
| Family Series | Browning Bearings |
| Housing Material | Cast Iron |
| Inner Ring Width | 2." |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Length Through Bore | 2" |
| Locking Device | Boa Concentric |
| Max. Operating Temp. | 200°F |
| Max. Speed | 3000 RPM |
| Operating Temp. Range | -20°F to +200°F |
| Overall Height | 2.109" |
| Replacement Bearing | VB-228 |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 3/4" |
| Static Radial Load Capacity | 5139 lbf. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 5.41 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Duty Type | Overall Height | Bolt Center To Center Length | Shaft Dia. | Length Through Bore | Dynamic Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF4B-223 | 1 7/16" | 3493 lbs. | Standard Duty | - | - | - | 1 3/4" | 5782 lbs. | €165.19 | |
 |
VF4B-235 | 2 3/16" | 6601 lbf. | Standard Duty | 2 3/8" | 5 1/8" | 2 3/16" | - | - | €278.74 | |
|
VF4B-224 | - | 4467 lbf. | Standard Duty | 5 1/8" | - | 1 1/2" | 2" | - | €177.67 | |
 |
VF4B-332 | - | 5216 lbf. | Medium Duty | 2 3/8" | 5 1/8" | - | - | - | €292.62 | |
|
VF4B-222 | 1 3/8" | 3493 lbf. | Standard Duty | 1.813" | 3.625" | 1 3/8" | - | - | €170.14 | |
|
VF4B-232 | - | 6601 lbs. | Standard Duty | - | 5 1/8" | - | 2.094" | 9752 lbs. | €278.74 | |
|
VF4B-220 | 1 1/4" | 3493 lbf. | Standard Duty | 1.813" | 3.625" | 1 1/4" | - | 5782 lbf. | €165.19 |
