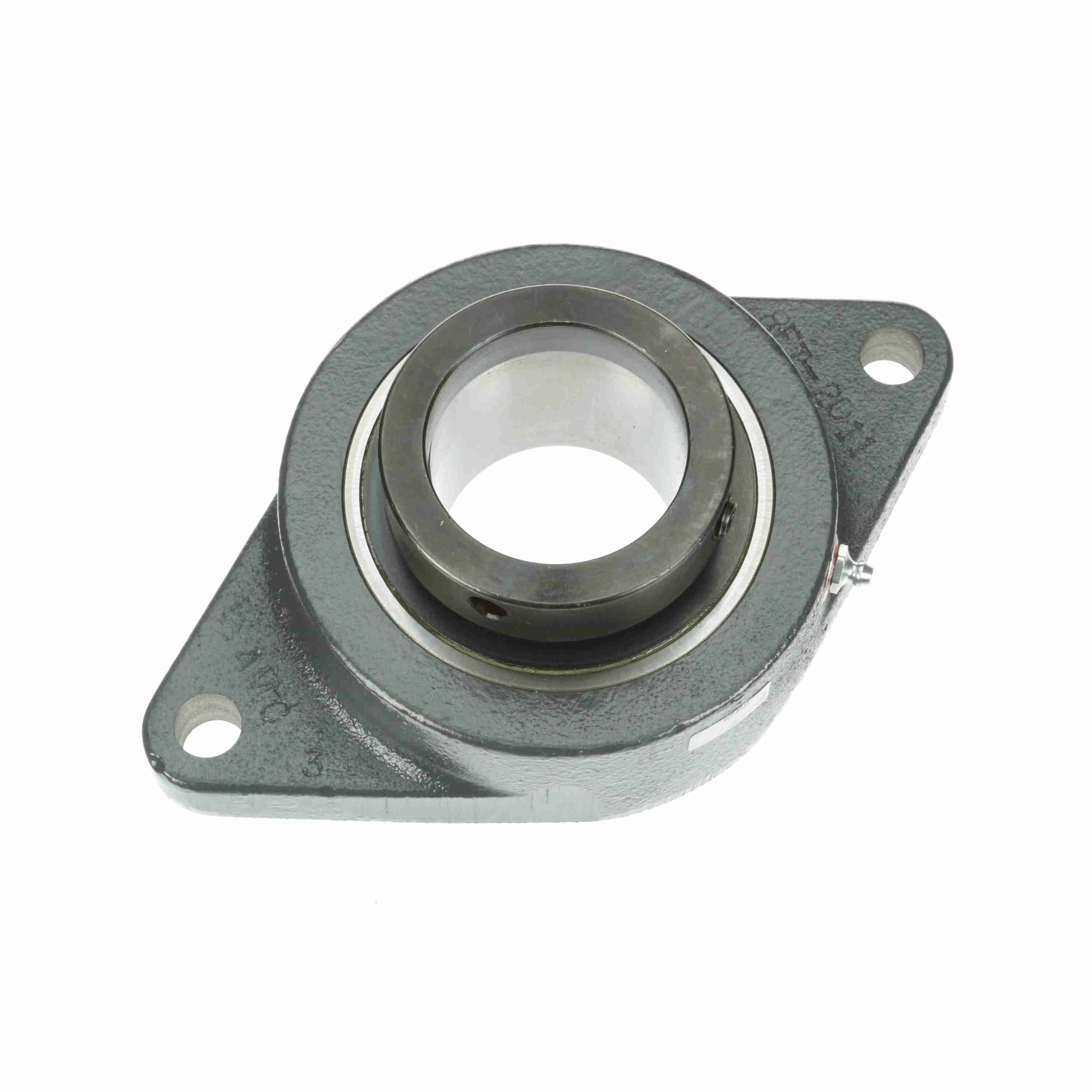

BROWNING VF2E-239 767987 Ball Bearing, 9-1/4 in OAL/Dia, 2-7/16 in Bore Dia, Gray Painted, Steel, Eccentric, Non-Expansion Normal Duty
Get it by Tuesday, Aug 18
€289.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Material | Steel |
| Bearing Type | Two Bolt Flange |
| Family Series | Browning Bearings |
| Finish | Gray Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Material | Cast Iron |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Inside Dia. | 2 7/16" |
| Load Capacity | 11789 Lbs. Dynamic, 8150 Lbs. Static |
| Locking Device | Eccentric |
| Max. Speed | 2500 RPM |
| Mounted | Yes |
| Overall Depth | 3 1/4" |
| Overall Height | 5 7/16" |
| Overall Length Dia. | 9 1/4" |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 2 7/16" |
| Temp. Rating | 200°F |
Shipping Info:
| Ship weight (kg) | 4.32 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 18.26 |
| Ship width (cm) | 17.78 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Dynamic Radial Load Capacity | Housing Width | Bolt Center To Center Length | Bolt Size | Foot Height | Duty Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF2E-116 | - | 1651 lbs. | 2801 lbs. | 0.9531" | 3.891" | 7/16" | 1/2" | Intermediate | €68.23 | |
 |
VF2E-223 | 1 7/16" | 3493 lbs. | 5782 lbs. | 1 1/4" | 5 1/8" | 1/2" | 5/8" | Normal | €124.01 | |
 |
VF2E-220 | - | 3493 lbs. | 5782 lbs. | - | 5 1/8" | 1/2" | 5/8" | Normal | €124.01 | |
 |
VF2E-224 | 1 1/2" | 4467 lbs. | 7340 lbs. | 1.4063" | 5.656" | 1/2" | 0.63" | Normal | €141.83 | |
 |
VF2E-236 | 2 1/4" | 8150 lbf. | - | 1.9688" | - | - | - | - | €287.28 | |
 |
VF2E-228 | - | 5139 lbs. | 7901 lbs. | 1 13/32" | 5.844" | 9/16" | 5/8" | Normal | €179.37 | |
 |
VF2E-232 | - | 6601 lbs. | 9752 lbs. | 1.7656" | 7 1/4" | 5/8" | 0.81" | Normal | €238.33 |
