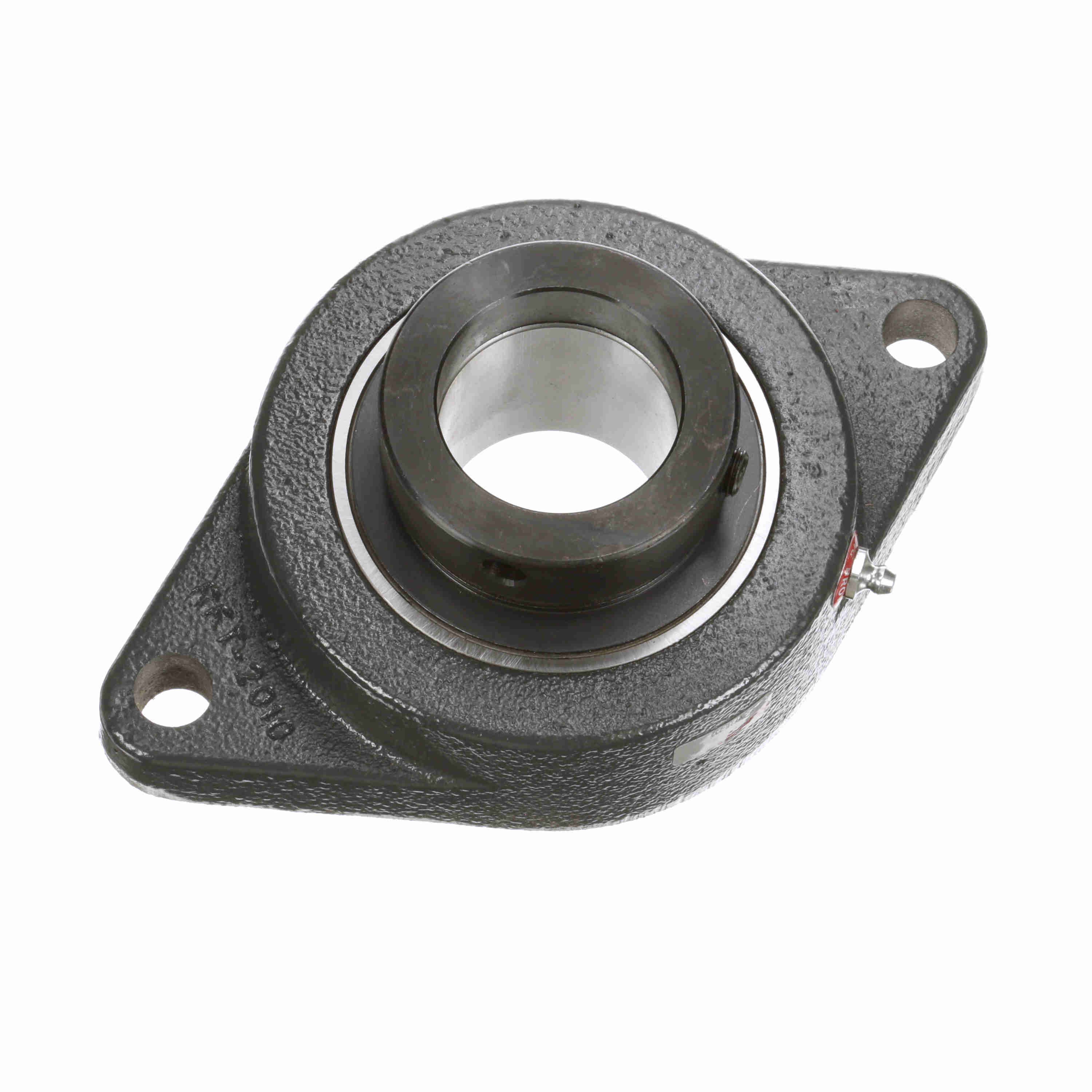

BROWNING VF2E-232 767932 Mounted Cast Iron Two Bolt Flange Ball Bearing
Get it by Tuesday, Aug 18
€238.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Steel |
| Bearing Type | Two Bolt Flange |
| Bolt Center To Center Length | 7 1/4" |
| Bolt Size | 5/8" |
| Centerline To Front Face | 1.719" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 9752 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Finish | Gray Painted |
| Flange Mounting Type | 2 Bolt |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.81" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1.7656" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Length Through Bore | 2.81" |
| Load Capacity | 7889 Lbs. Dynamic, 5216 Lbs. Static |
| Locking Device | Eccentric |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Depth | 2 31/32" |
| Overall Height | 5 1/4" |
| Overall Length Dia. | 8 1/2" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 6601 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 13.34 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Dynamic Radial Load Capacity | Housing Width | Bolt Center To Center Length | Bolt Size | Foot Height | Duty Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF2E-116 | - | 1651 lbs. | 2801 lbs. | 0.9531" | 3.891" | 7/16" | 1/2" | Intermediate | €68.23 | |
 |
VF2E-223 | 1 7/16" | 3493 lbs. | 5782 lbs. | 1 1/4" | 5 1/8" | 1/2" | 5/8" | Normal | €124.01 | |
 |
VF2E-220 | - | 3493 lbs. | 5782 lbs. | - | 5 1/8" | 1/2" | 5/8" | Normal | €124.01 | |
 |
VF2E-239 | - | - | - | - | - | - | - | - | €289.58 | |
 |
VF2E-224 | 1 1/2" | 4467 lbs. | 7340 lbs. | 1.4063" | 5.656" | 1/2" | 0.63" | Normal | €141.83 | |
 |
VF2E-236 | 2 1/4" | 8150 lbf. | - | 1.9688" | - | - | - | - | €287.28 | |
 |
VF2E-228 | - | 5139 lbs. | 7901 lbs. | 1 13/32" | 5.844" | 9/16" | 5/8" | Normal | €179.37 |
