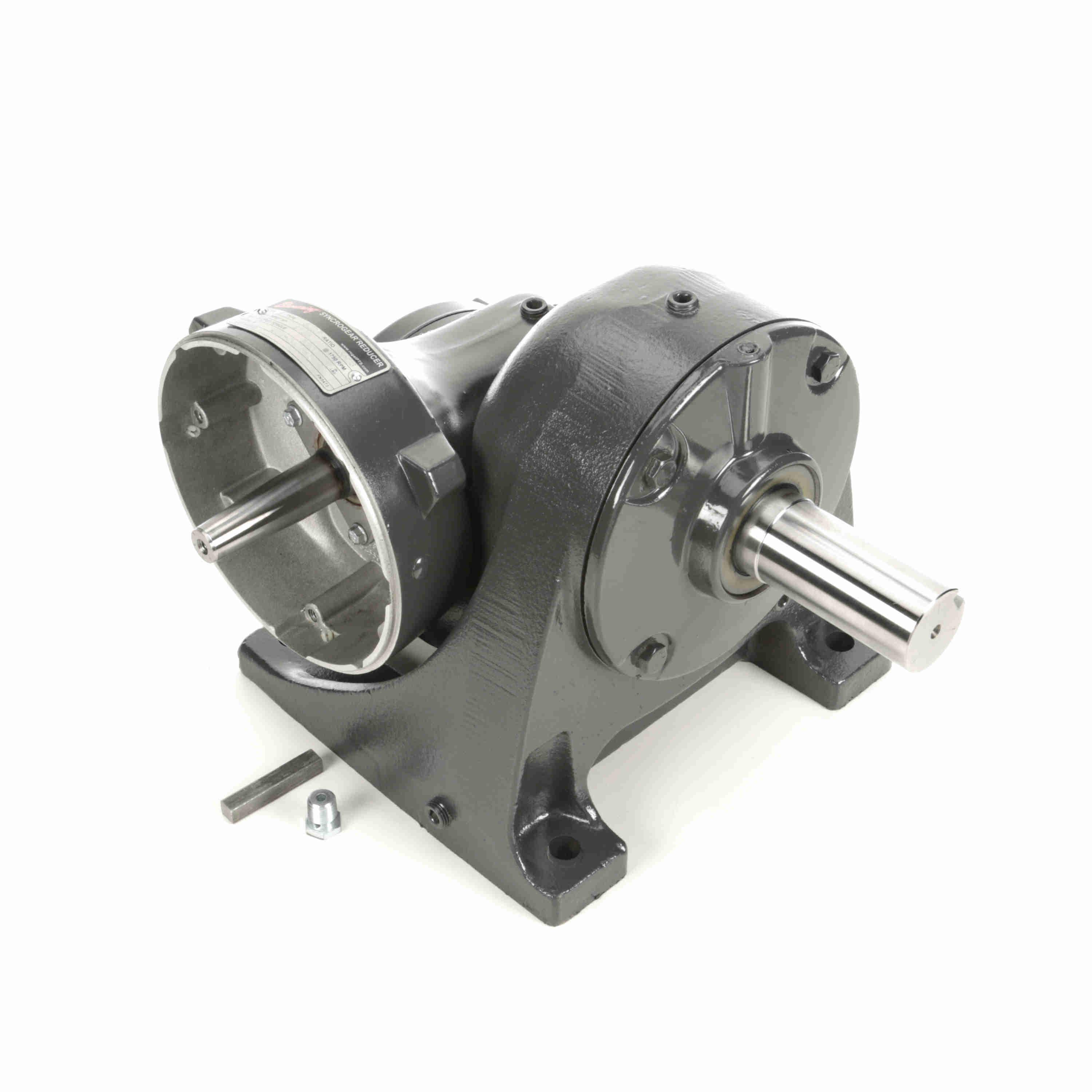

BROWNING G476 6GWBPF2 45.8 Worm Gear Reducer, Right Angle, Single-Reduction
Get it by Wednesday, Aug 26
€2,146.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Included | Yes |
| Base To Center Of Input Shaft | 5 7/8" |
| Base To Center Of Output Shaft | 6.313" |
| Bolt Hole Dia. | 0.563" |
| Center Distance | 0.438" |
| Fan Cooled | No |
| Gear Type | Helical Worm |
| Height | 9.69" |
| Housing Material | Cast Iron |
| Input Rating Value Plus Um | 1 13/20 hp |
| Input Style | C Face Quill |
| Max. Nominal Input Rating | 1 1/2 hp |
| Max. Overhung Load Value And Um | 913 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Rectangular |
| Mounting Frame | 145TY |
| Mounting Method | Direct Mounted |
| Mounting Position | Floor |
| Nominal Ratio | 45.8:1 |
| Output Shaft Dia. | 1 1/2" |
| Output Shaft Length | 3" |
| Output Speed | 37 RPM |
| Output Type | Right Hand |
| Overall Length | 12.81" |
| Overall Width | 13.344" |
| Product Series | GWB Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque | 2297 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 24.61 |
| Ship length (cm) | 32.54 |
| Ship width (cm) | 33.89 |
| Country of Origin | MX |
Product Variants
| Product | Model | Output Speed | Max. Input Hp | Height | Nominal Ratio | Torque | Max. Nominal Input Rating | Input Rating Value Plus Um | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E455 | 1780 RPM | - | 9.69" | 20.3:1 | 2212 lbs.-in. | 3 hp | 3 21/50 hp | 1 22/25" | €2,347.17 | |
 |
E467 | 7.5 RPM | - | 9.69" | 236:1 | 2378 lbs.-in. | 1/2 hp | 1/2 hp | 1 1/2" | €2,347.17 | |
 |
E469 | 5 RPM | - | 9.69" | 354:1 | 2416 lbs.-in. | 0.33 hp | 0.41 hp | 1 1/2" | €2,347.17 | |
 |
F334 | 11 RPM | - | 9.69" | 159:1 | 2342 lbs.-in. | 1/2 hp | 16/25 hp | 1 1/2" | €2,445.38 | |
 |
G471 | 100 RPM | - | 9.69" | 17:1 | 1969 lbs.-in. | 3 hp | 3.63 hp | 1 1/2" | €2,445.38 | |
 |
G474 | 56 RPM | - | 9.69" | 31:1 | 2317 lbs.-in. | 2 hp | 2 9/25 hp | 1 1/2" | €2,445.38 | |
|
G477 | 30 RPM | - | 9.69" | 57:1 | 2307 lbs.-in. | 1 hp | 1 19/50 hp | - | €2,445.38 |
