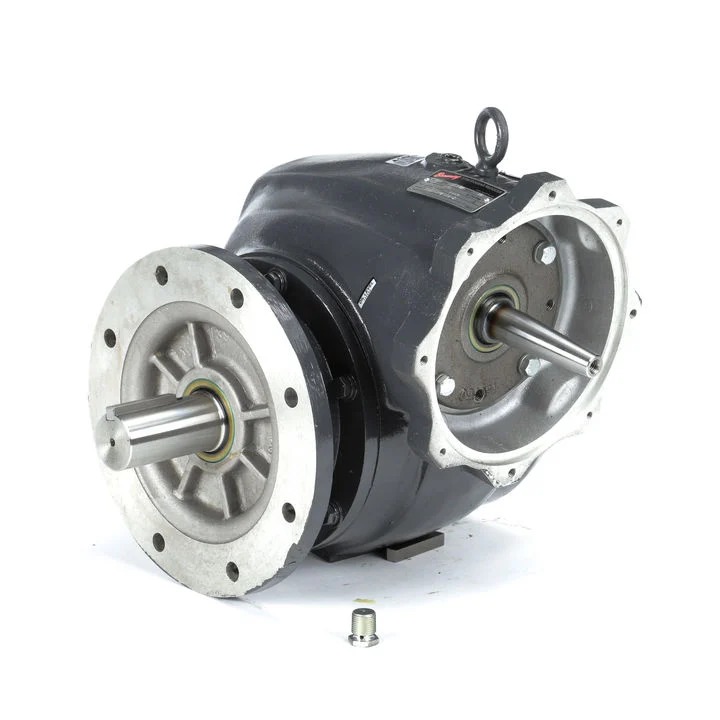

BROWNING F328 20GWVPW3 40 Worm Gear Reducer, Right Angle, Single-Reduction
Get it by Tuesday, Dec 23
€3,328.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Included | No |
| Base To Center Of Input Shaft | 8 3/4" |
| Base To Center Of Output Shaft | 5" |
| Bolt Hole Dia. | 0.563" |
| Center Distance | 3 3/4" |
| Fan Cooled | No |
| Gear Type | Worm |
| Height | 13 7/25" |
| Housing Material | Cast Iron |
| Input Rating Value Plus Um | 3 1/10 hp |
| Input Style | C Face Quill |
| Max. Nominal Input Rating | 3 hp |
| Max. Overhung Load Value And Um | 2850 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Square |
| Mounting Frame | 184T |
| Mounting Method | Direct Mounted |
| Mounting Type | Other Mount Flange Mounted |
| Nominal Ratio | 40:1 |
| Output Rpm | 45 RPM |
| Output Shaft Dia. | 1 5/8" |
| Output Shaft Length | 3.063" |
| Output Type | Shaft |
| Overall Length | 17.031" |
| Overall Width | 9.281" |
| Product Series | GWV Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 3368 lbs.-in. |
| Weight | 46.308 Kg |
Shipping Info:
| Ship weight (kg) | 45.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Gear Type | Output Type | Output Shaft Dia. | Housing Material | Overall Length | Mounting Type | Output Shaft Length | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

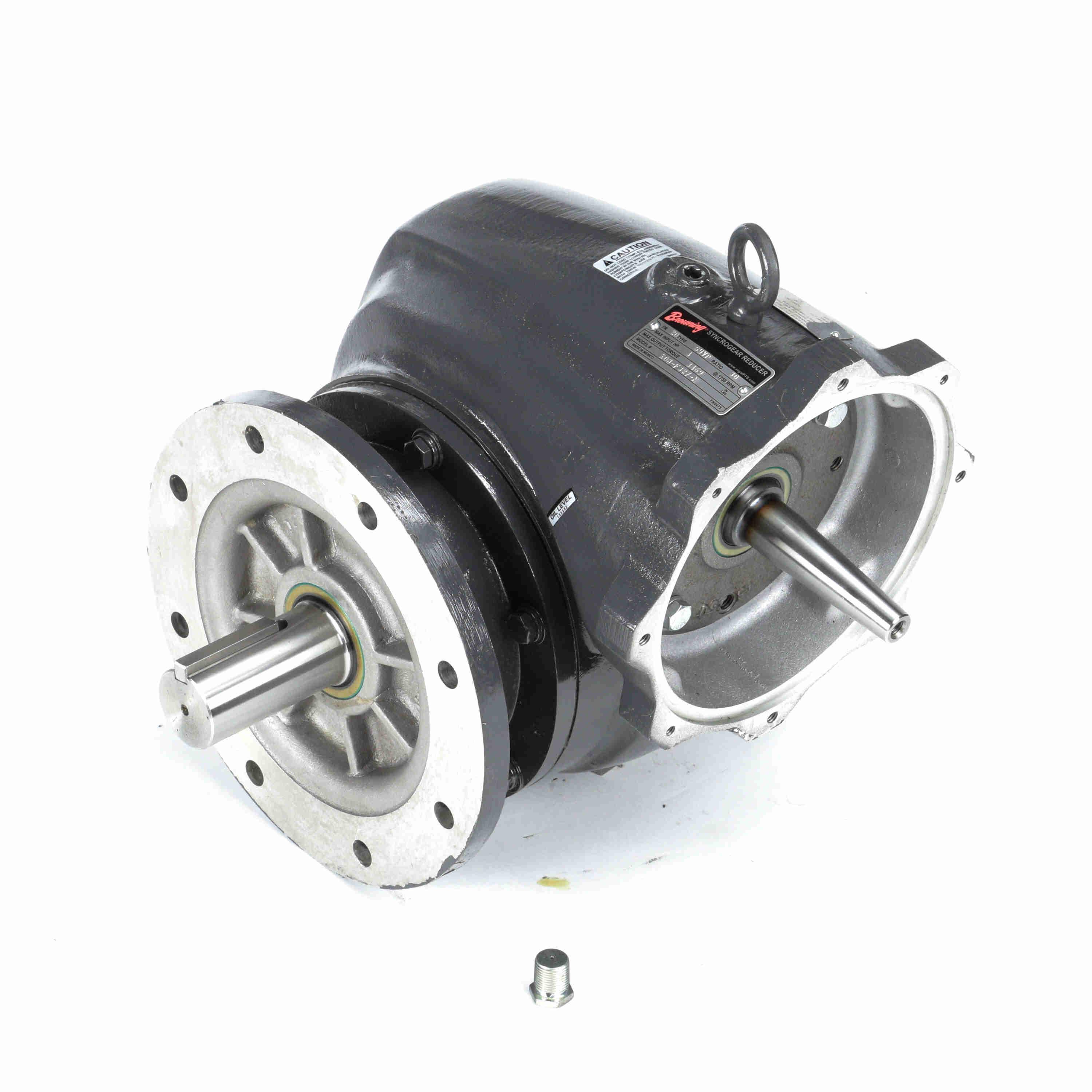

F327 | Worm | Shaft | 1 5/8" | Cast Iron | 17.031" | Other Mount Flange Mounted | 3.063" | 13 7/25" | €3,790.83 | RFQ
|
 |
F332 | Worm | Shaft | 1 5/8" | Cast Iron | 17.031" | Other Mount Flange Mounted | 3.063" | 13 7/25" | €3,790.83 | RFQ
|
 |

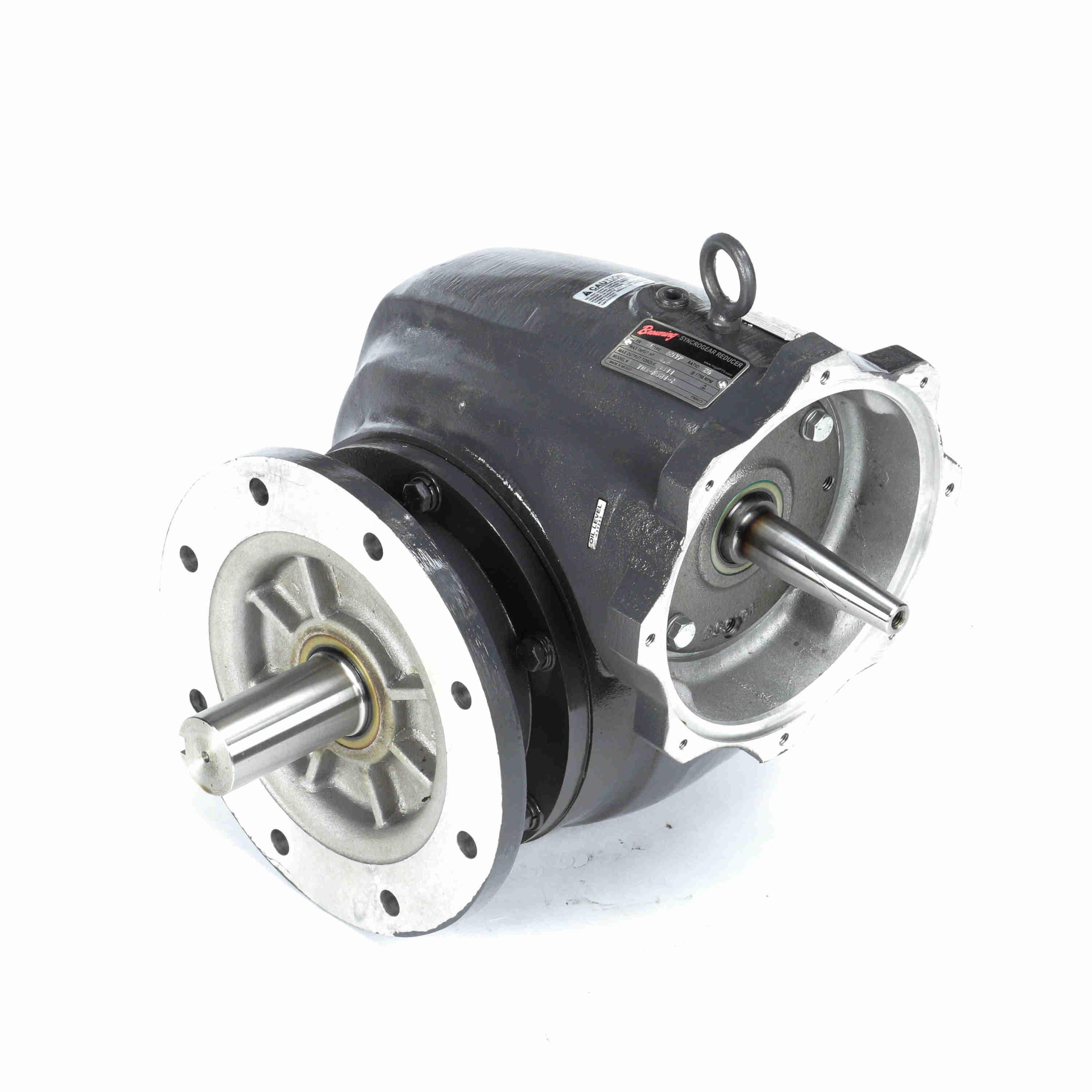

F481 | Worm | Shaft | 1 5/8" | Cast Iron | 17.031" | Other Mount Flange Mounted | 3.063" | 13 7/25" | €3,328.08 | |
|
G099 | - | - | - | - | - | - | - | - | €3,328.08 | |
|
F326 | Worm | Shaft | 1 5/8" | Cast Iron | 17.031" | Other Mount Flange Mounted | 3.063" | 13 7/25" | €3,328.08 | |
|
F330 | - | - | - | - | - | - | - | - | €3,328.08 | |
|
20GWVPW3 10 | - | - | - | - | - | - | - | - | €3,328.08 |
