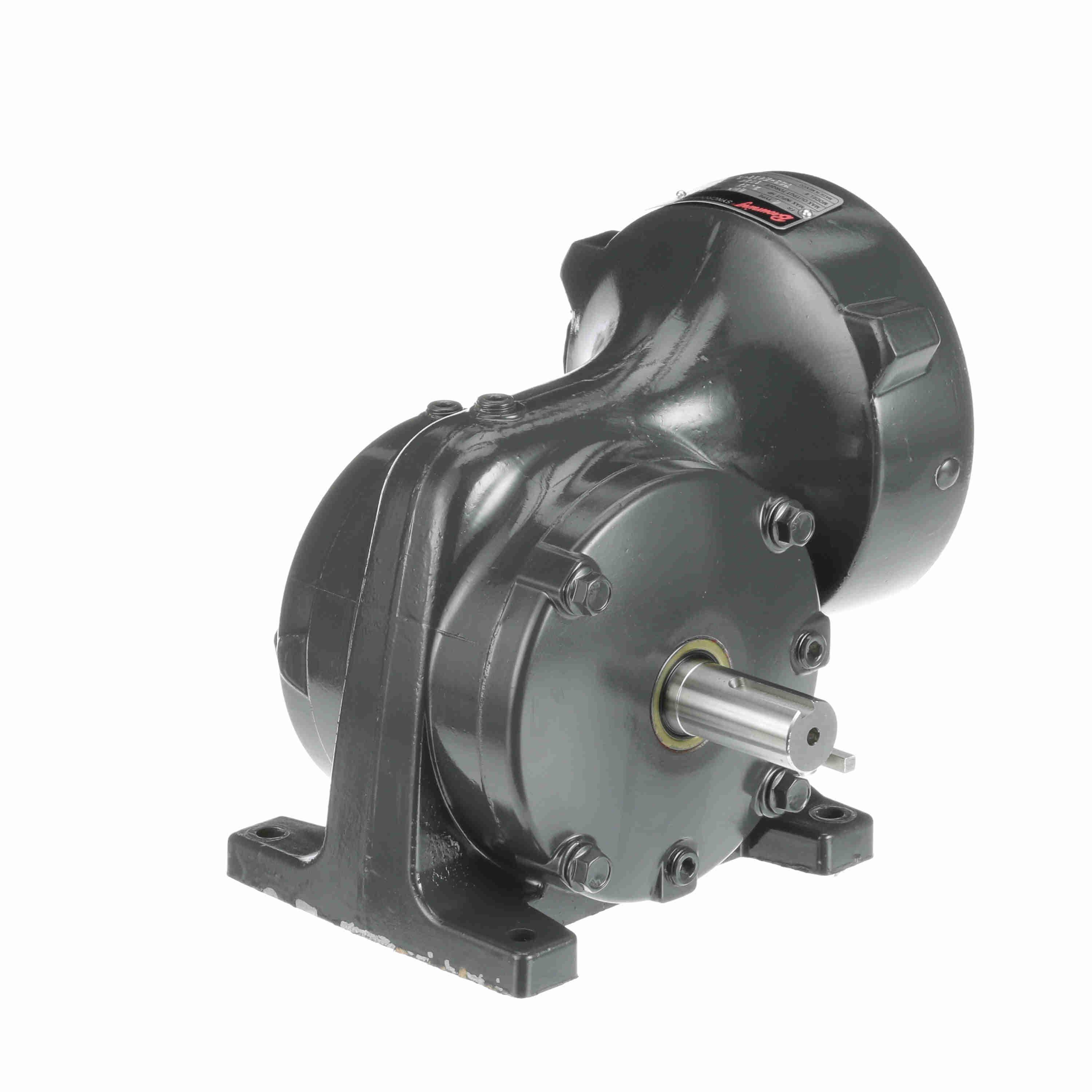

BROWNING E431 6GWPF1 14 Worm Gear Reducer, Right Angle, Single-Reduction
Get it by Monday, Dec 22
€1,125.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Included | Yes |
| Base To Center Of Input Shaft | 5.406" |
| Base To Center Of Output Shaft | 3 1/4" |
| Bolt Hole Dia. | 0.406" |
| Center Distance | 2.156" |
| Fan Cooled | No |
| Gear Ratio | 14:1 |
| Gear Type | Worm |
| Height | 9.09" |
| Hp | 2 hp |
| Input Rating Value Plus Um | 2.37 hp |
| Input Rpm | 1750/125 RPM |
| Input Style | C Face Quill |
| Length | 12.81" |
| Material | Cast Iron |
| Max. Nominal Input Rating | 2 hp |
| Max. Overhung Load Value And Um | 832 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Rectangular |
| Mounting Method | Direct Mounted |
| Mounting Position | Floor |
| Mounting Type | Footed, Floor, Direct |
| Nominal Ratio | 14:1 |
| Output Dia. | 1" |
| Output Rpm | 125 RPM |
| Output Shaft Dia. | 1" |
| Output Shaft Length | 2" |
| Output Type | Right Hand |
| Overall Length | 12.81" |
| Overall Width | 8.219" |
| Product Series | GW Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 1026 lbs.-in. |
| Type | Single Reduction |
| Weight | 9.516 Kg |
| Width | 8.219" |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Gear Ratio | Output Type | Type | Mounting Type | Hp | Input Rpm | Gear Type | Output Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XX6144 | 26:1 | Right Hand | Single Reduction | - | - | - | Worm | 2" | €1,281.61 | RFQ
|
 |
XX6120 | 3:1 | Right Hand | Single Reduction | Footed, Floor, Direct | 1 hp | 1750/56 RPM | Worm | 2" | €1,281.61 | RFQ
|
 |
E433 | 2:1 | Shaft | Single Reduction | Footed, Floor, Direct | 1 3/4 hp | 1750/84 RPM | - | 2" | €1,125.17 | |
 |
E436 | 39:1 | Right Hand | Right Angle | Direct, Floor | 1.09 hp, 1 hp | - | Worm | 2" | €1,125.17 | |
 |
G53973 | - | Shaft | - | - | - | - | Worm | 2" | €1,513.18 | |
 |
E428 | 7.5:1 | Right Hand | Right Angle | Direct, Floor | 3.63 hp, 3 hp | - | Worm | 2" | €1,125.17 | |
 |
E438 | - | Right Hand | - | - | - | - | Worm | 2" | €1,125.17 |
