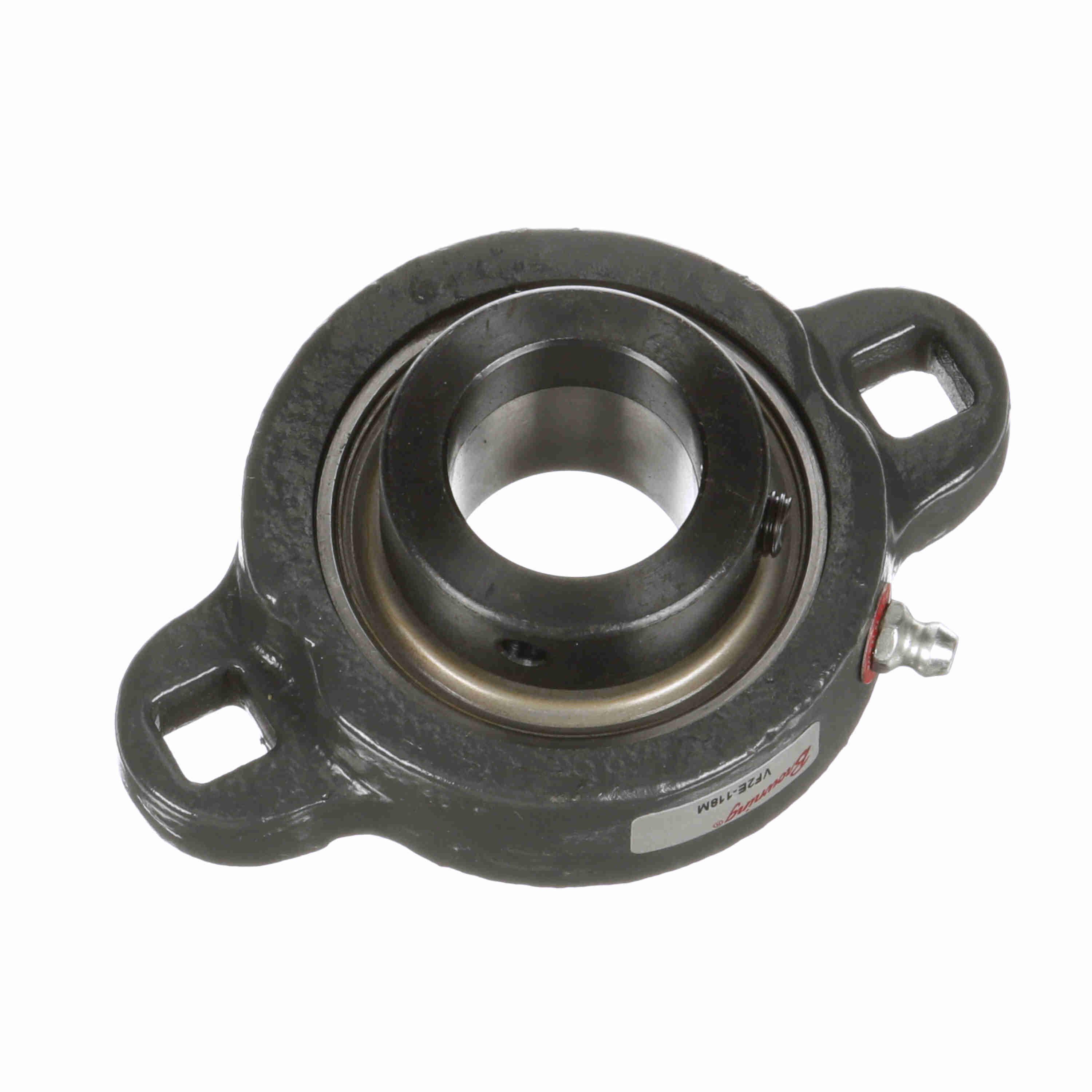

BROWNING 767300 VF2E-118M Ball Bearing, 2-15/16 in OAL/Dia, 1-1/8 in Bore Dia, Gray Painted, Steel, Eccentric Collar, Intermediate Duty Non-Expansion
Item: BF7DPHModel: 767300Cross Ref: VF2E-118M
7 In Stock
Ships within 2 days via
€146.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3 9/16" |
| Bolt Spacing | 3.563" |
| Bore Dia. | 1 1/8" |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VE-118 |
| Inside Dia. | 1 1/8" |
| Locking Device | Eccentric Collar |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting | Yes |
| Mounting Bolts | 13/32" |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Circle Dia. | 3 1/2" |
| Overall Depth | 1 17/32" |
| Overall Dia. | 2 15/16" |
| Overall Height | 4 7/16" |
| Overall Length | 2 15/16" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Product Type | Intermediate Duty Non-Expansion |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2E 100 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 11.28 |
| Ship length (cm) | 7.47 |
| Ship width (cm) | 3.89 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Overall Height | Dynamic Load Capacity | Static Load Capacity | Bore Dia. | Temp. | Bolt Center To Center Length | Overall Depth | Overall Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767796 | 1/2" | 5782 lbs. | 3493 lbs. | 1 3/8" | 200°F | 3 15/16" | 1 11/16" | 4 13/16" | €123.55 | |
 |
767325 | 7 7/16" | 7889 lbs. | 5216 lbs. | - | -20°F to +200°F | 6 3/16" | 2 5/32" | 4 9/16" | €289.99 | |
 |
767782 | 7/16" | 2801 lbs. | 1651 lbs. | 7/8" | 200°F | 3" | 1 11/32" | 3 3/4" | €98.98 | |
 |
767798 | 6 1/8" | 5782 lbs. | 3493 lbs. | 1 3/8" | -20°F to +200°F | 5 1/8" | 1 29/32" | 3 5/8" | €294.97 | |
 |
767871 | 7 1/16" | 7901 lbs. | 5139 lbs. | 1 3/4" | -20°F to +200°F | 5 27/32" | 2 5/32" | 4 3/8" | €290.54 | |
 |
767759 | 7/16" | 2611 lbs. | 1444 lbs. | 3/4" | 200°F | 2 13/16" | 1 21/64" | 3 9/16" | €85.02 | |
 |
767661 | 6 3/4" | 7340 lbs. | 4467 lbs. | 1 1/2" | -20°F to +200°F | 5 21/32" | 2 7/64" | 4 1/8" | €197.72 |
