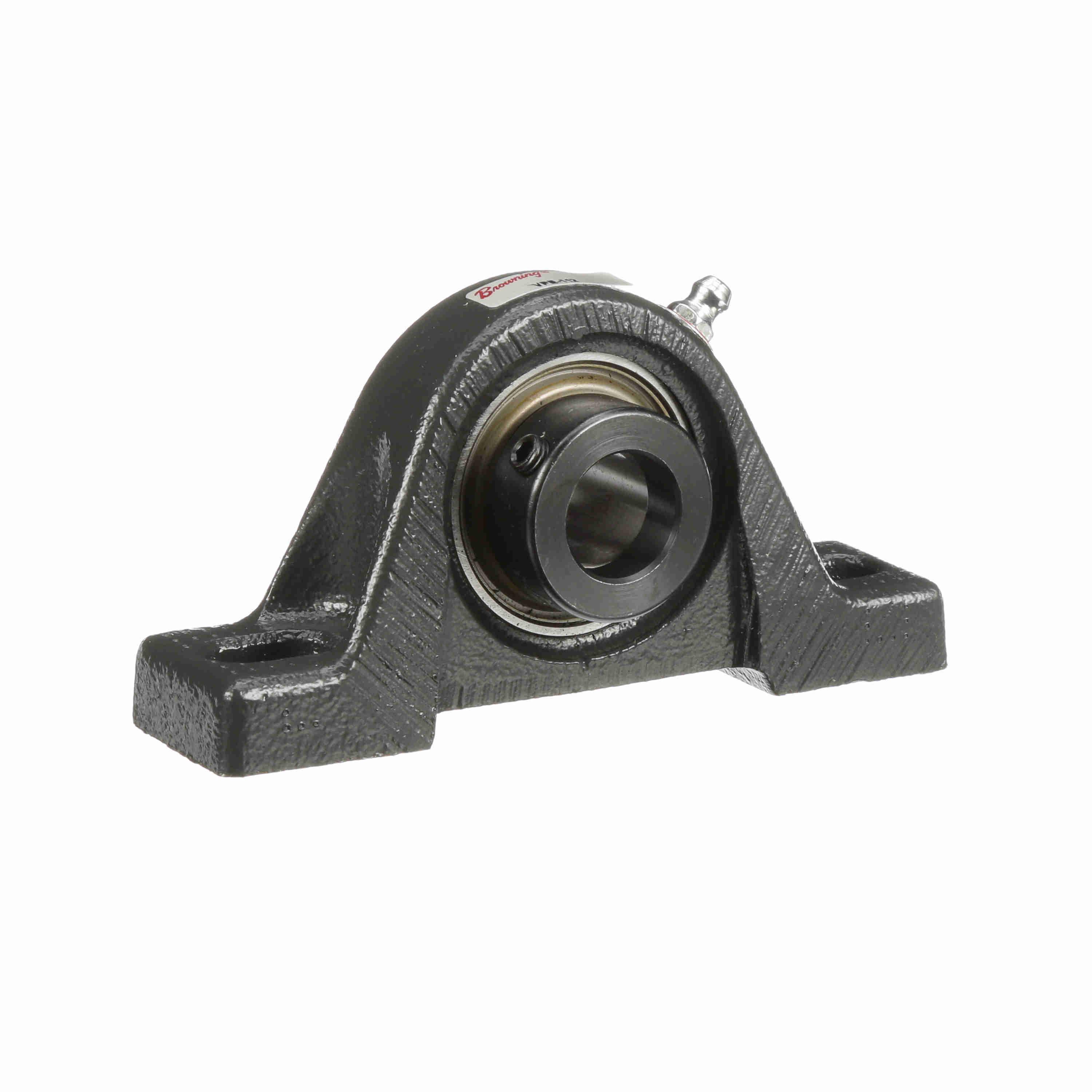

BROWNING 767764 VPE-112 Two Bolt Pillow Block Ball Bearing, Mounted, Cast Iron, Eccentric Lock
Item: BE7FFPModel: 767764Cross Ref: VPE-112
7 In Stock
Ships within 2 days via
€152.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 3 4/5" |
| Base To Bore Centerline | 1 5/16" |
| Base To Center Height | 1.311" |
| Base Width | 1 11/32" |
| Bolt Center To Center Length | 3 3/8" to 4 3/16" |
| Bore Dia. | 3/4" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 2611 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VE-112 |
| Inside Dia. | 3/4" |
| Length Through Bore | 1.266" |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 4000 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/8" |
| Mounting Method | Eccentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 3 4/5" |
| Number Of Rows | 1 |
| Other Features | Light Duty |
| Overall Height | 2 17/32" |
| Overall Length | 5" |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPE 100 Series |
| Static Load Capacity | 1444 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.671 Kg |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 6.43 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Overall Length | Overall Height | Max. Speed | Mounting Type | Base Width | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767649 | 1 3/16" | Cast Iron | 6 3/16" | 3 9/32" | 3000 RPM | 2 Bolt Base | 1 3/4" | 4 3/16" to 5 1/16" | €127.20 | |
 |
767768 | 15/16" | Ductile Iron | 5 1/2" | - | 3500 RPM | 2 Bolt High Base | 1 13/32" | 3 11/16" to 4 9/16" | €120.80 | |
 |
767637 | 1 1/4" | Cast Iron | 6 3/16" | 3 9/32" | 4500 RPM | 2 Bolt High Base | 1 3/4" | 4 5/32" to 5 3/32" | €357.90 | |
 |
767313 | 1 1/4" | Cast Iron | 6 3/16" | 3 9/32" | 3000 RPM | 2 Bolt High Base | 1 3/4" | 4 3/16" to 5 1/16" | €291.83 | |
 |
767319 | 1 1/2" | Cast Iron | 7 1/8" | 4" | 2500 RPM | 2 Bolt Base | 1 15/16" | 4 7/8" to 5 7/8" | €186.12 | |
 |
767323 | 1 15/16" | Cast Iron | 8" | 4 9/16" | 2000 RPM | 2 Bolt High Base | 2 3/16" | 5 7/8" to 6 1/2" | €216.36 | |
 |
767307 | 1 1/4" | Cast Iron | - | - | - | - | - | - | €150.40 |
