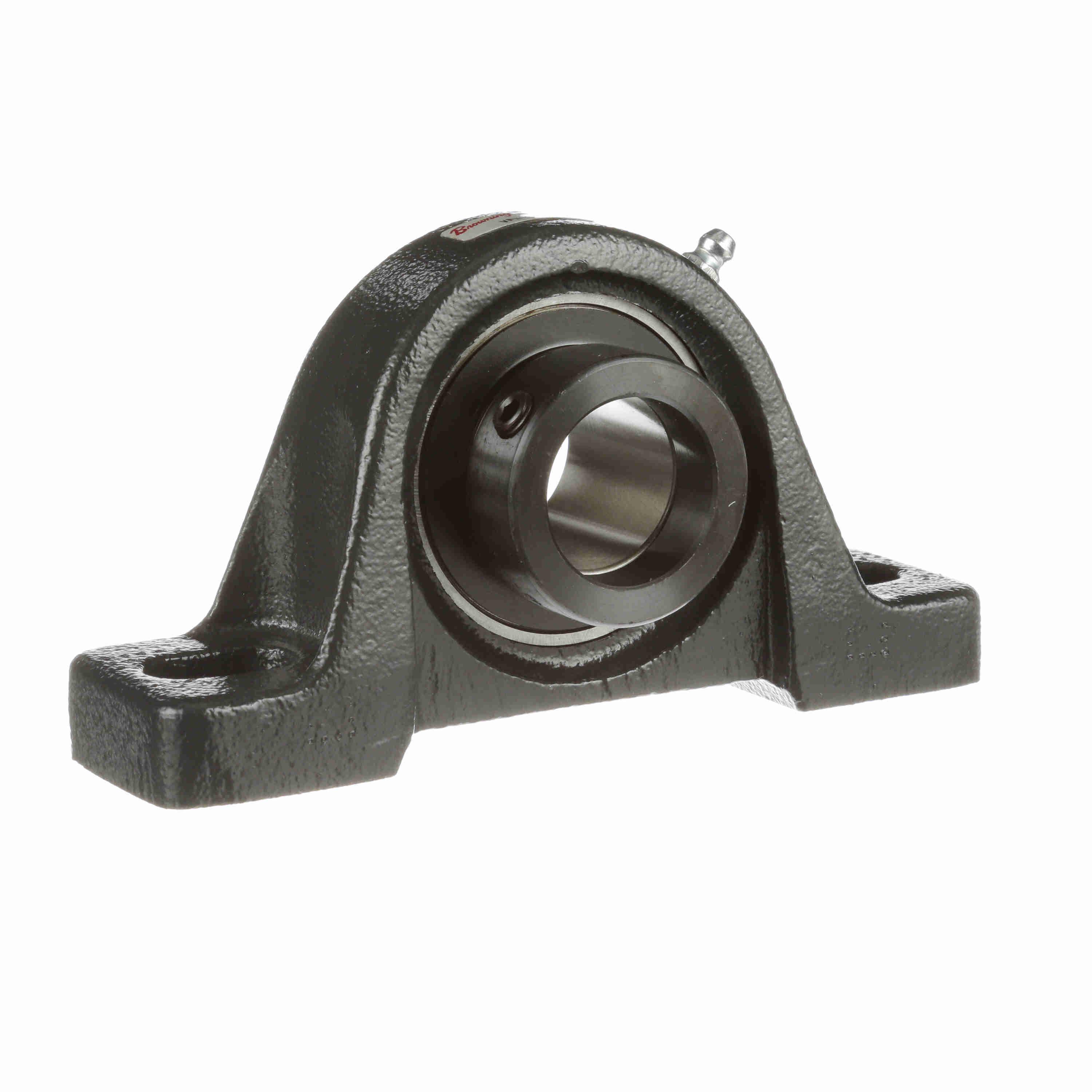

BROWNING 767637 VPE-220S Two Bolt Pillow Block Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Eccentric Lock
Item: BD7QCQModel: 767637Cross Ref: VPE-220S
7 In Stock
Ships within 2 days via
€357.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 4 3/5" |
| Base To Bore Centerline | 1 11/16" |
| Base To Center Height | 1.688" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 5/32" to 5 3/32" |
| Bore Dia. | 1 1/4" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VE-220S |
| Length Through Bore | 1.906" |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 4500 RPM |
| Mounting Bolts | 1/2" |
| Mounting Method | Eccentric Collar |
| Mounting Type | 2 Bolt High Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 4.7" |
| Number Of Rows | 1 |
| Overall Height | 3 9/32" |
| Overall Length | 6 3/16" |
| Product Type | Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPE 200 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | +200°F to +250°F |
| Weight | 1.32 Kg |
Shipping Info:
| Ship weight (kg) | 1.31 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 15.72 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Overall Length | Overall Height | Max. Speed | Mounting Type | Base Width | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767649 | 1 3/16" | Cast Iron | 6 3/16" | 3 9/32" | 3000 RPM | 2 Bolt Base | 1 3/4" | 4 3/16" to 5 1/16" | €127.20 | |
 |
767768 | 15/16" | Ductile Iron | 5 1/2" | - | 3500 RPM | 2 Bolt High Base | 1 13/32" | 3 11/16" to 4 9/16" | €120.80 | |
 |
767313 | 1 1/4" | Cast Iron | 6 3/16" | 3 9/32" | 3000 RPM | 2 Bolt High Base | 1 3/4" | 4 3/16" to 5 1/16" | €291.83 | |
 |
767319 | 1 1/2" | Cast Iron | 7 1/8" | 4" | 2500 RPM | 2 Bolt Base | 1 15/16" | 4 7/8" to 5 7/8" | €186.12 | |
 |
767323 | 1 15/16" | Cast Iron | 8" | 4 9/16" | 2000 RPM | 2 Bolt High Base | 2 3/16" | 5 7/8" to 6 1/2" | €216.36 | |
 |
767307 | 1 1/4" | Cast Iron | - | - | - | - | - | - | €150.40 | |
 |
767540 | 1 3/16" | - | 6 3/16" | 3 9/32" | 4500 RPM | 2 Bolt Base | 1 3/4" | 4 5/32" to 5 3/32" | €178.86 |
