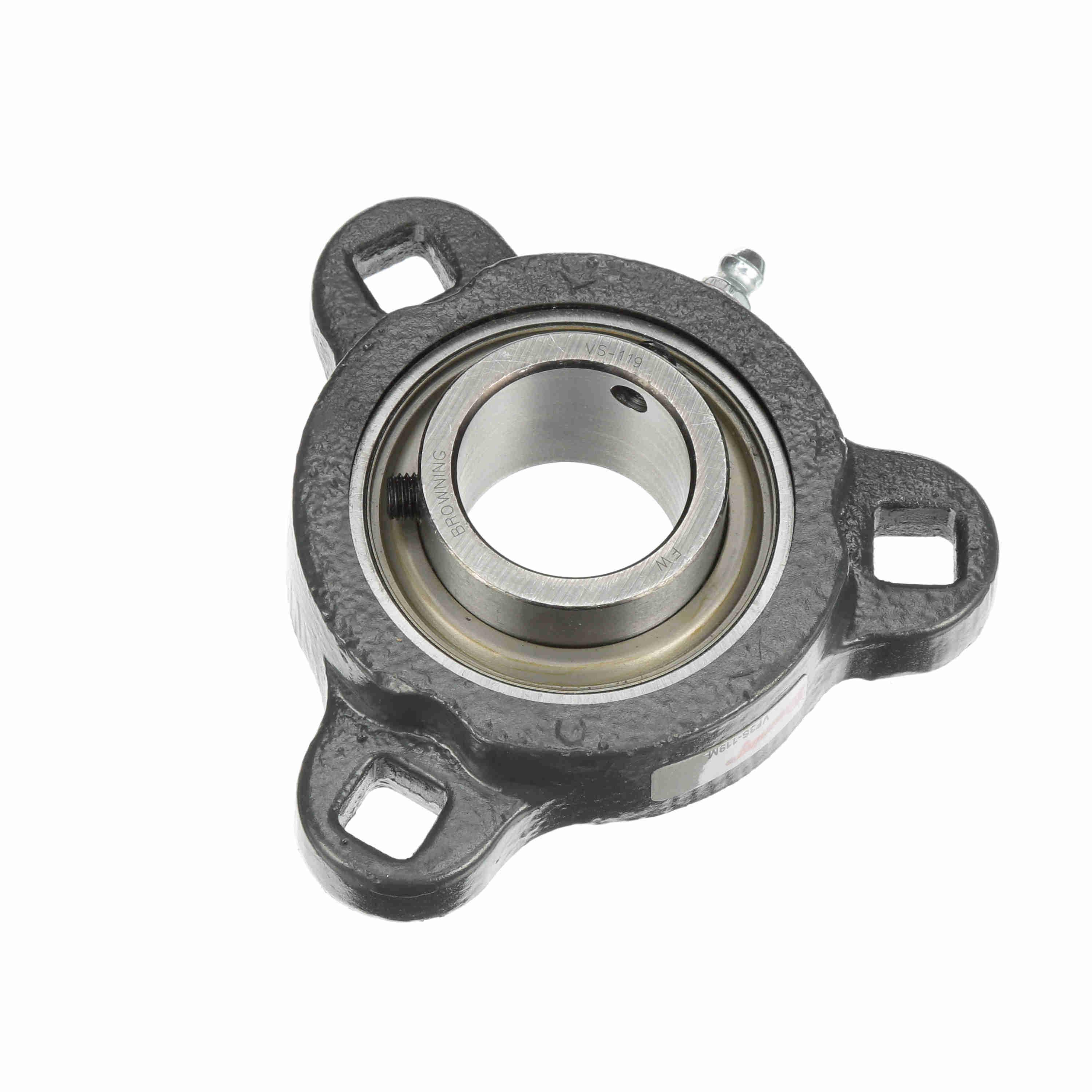

BROWNING 767598 VF3S-118M Ball Bearing, 4-7/16 in OAL/Dia, 1-1/8 in Bore Dia, Gray Painted, Steel, Setscrew, Light Duty Non-Expansion Round/Straight Bore
Item: BE3PZEModel: 767598Cross Ref: VF3S-118M
7 In Stock
Ships within 2 days via
€237.47 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Circle Dia. | 3 9/16" |
| Bolt Spacing | 3.1" |
| Bore Dia. | 1 1/8" |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 3 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 3 Bolt Flange Block |
| Insert Part Number | VS-118 |
| Length Through Bore | 1.156" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting | Yes |
| Mounting Bolts | 27/64" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 3 |
| No. Of Rows | 1 |
| Nominal Bolt Circle Dia. | 3 1/2" |
| Overall Depth | 1 17/64" |
| Overall Dia. | 4 7/16" |
| Overall Length | 4 7/16" |
| Pilot Configuration | No Pilot |
| Product Type | Light Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF3S 100-M Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 11.58 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 4.29 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Dynamic Load Capacity | Static Load Capacity | Temp. | Bolt Circle Dia. | Overall Depth | Overall Dia. | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

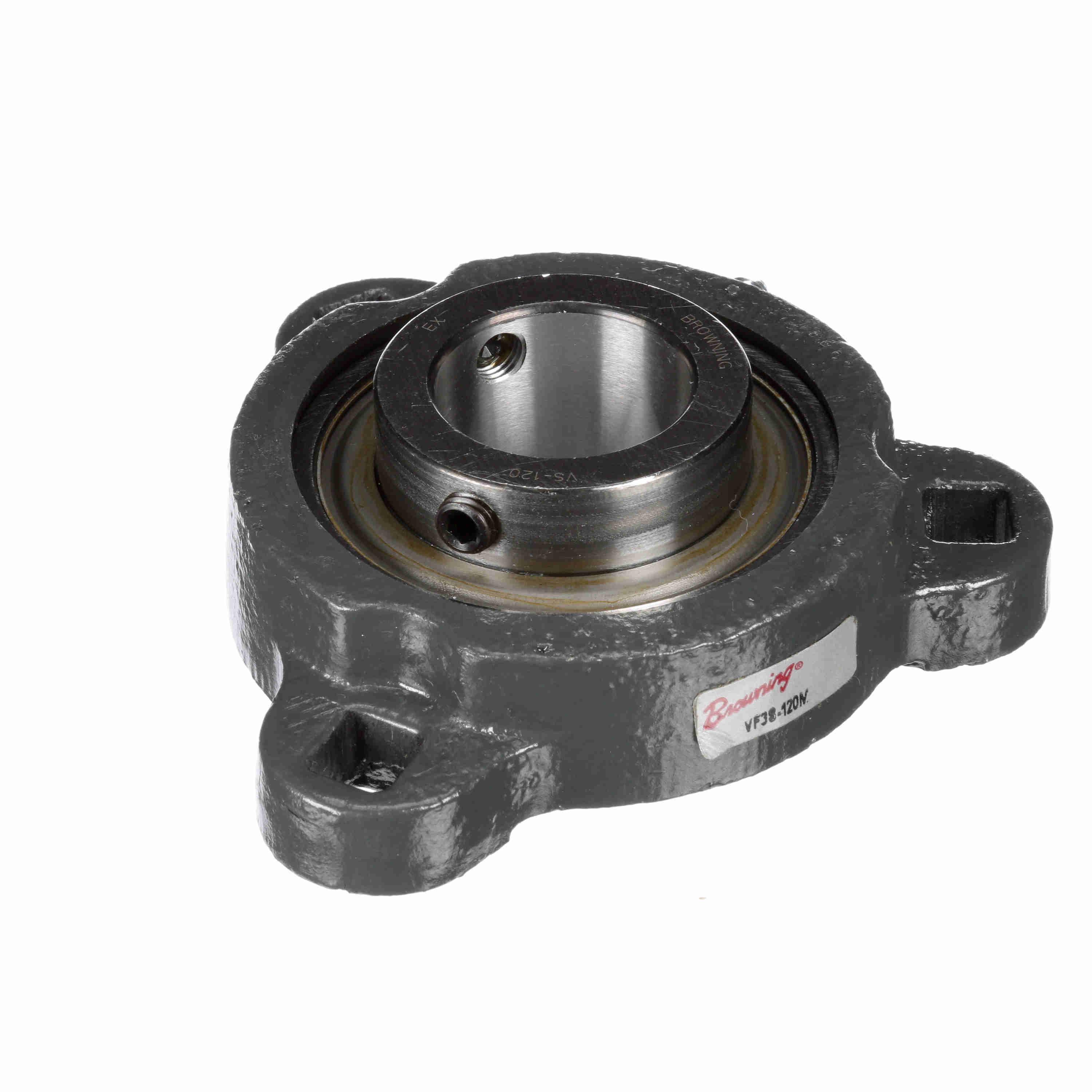

767748 | 1 1/4" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 3 15/16" | 1 25/64" | 4 13/16" | VF3S 100-M Series | €148.43 | |
 |
767736 | 7/8" | 2801 lbs. | 1651 lbs. | 200°F | 3" | 1 3/16" | 3 3/4" | VF3S 100 Series | €198.25 | |
 |

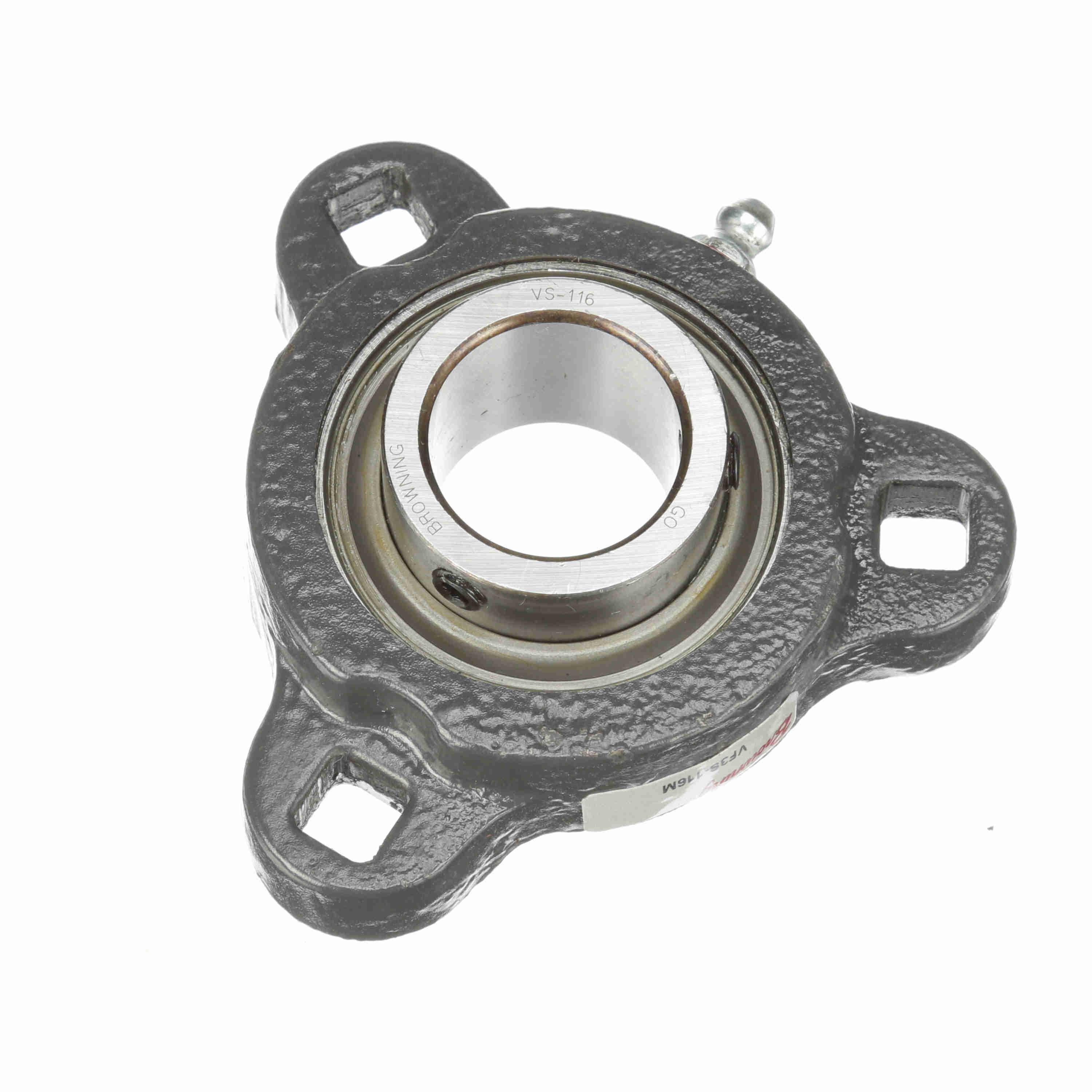

767597 | 1" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3" | 1 3/16" | 3 3/4" | VF3S 100-M Series | €96.62 | |
 |

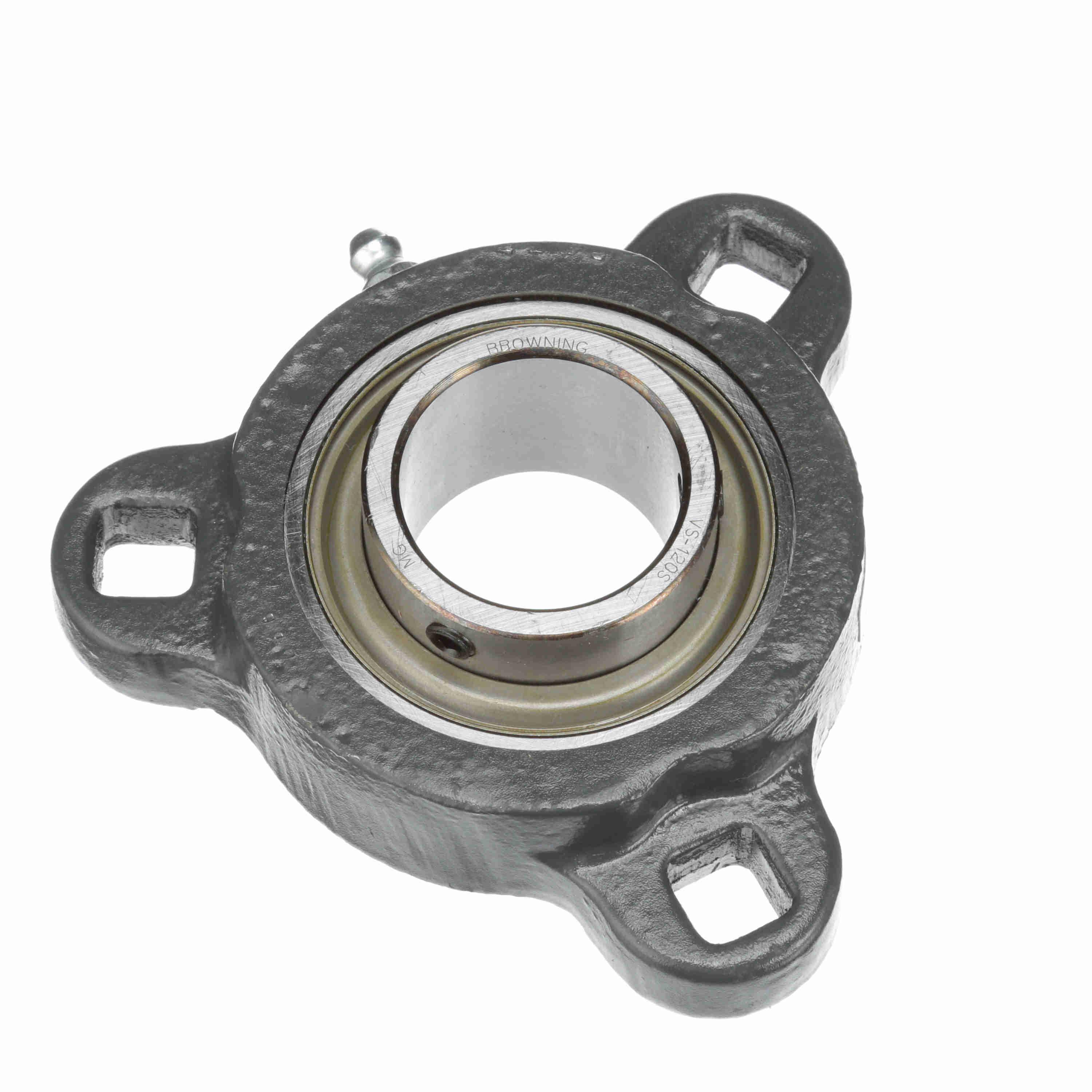

767746 | 1 1/4" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 3 9/16" | 1 17/64" | 4 7/16" | VF3S 100-M Series | €130.28 | |
|
767599 | 1 3/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 3 9/16" | 1 17/64" | 4 7/16" | VF3S 100-M Series | €130.28 | |
 |
767606 | 3/4" | 2611 lbs. | 1444 lbs. | -20°F to +200°F | 2 13/16" | 1 7/64" | 3 9/16" | VF3S 100-M Series | €109.49 | |
 |

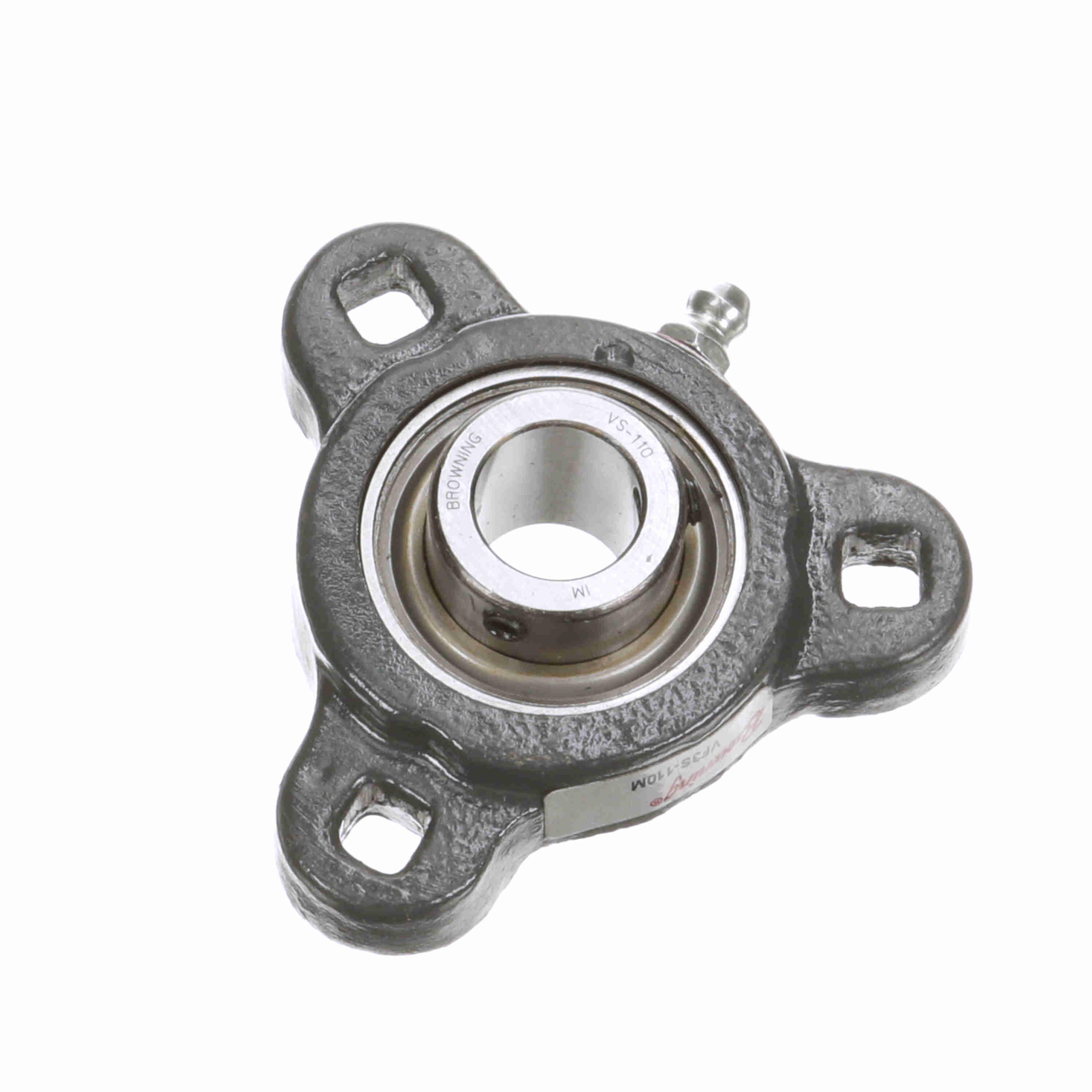

767841 | 5/8" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 2 1/2" | 31/32" | 3 3/16" | VF3S 100-M Series | €83.54 |
