BROWNING 767597 VF3S-116M Ball Bearing, 3-3/4 in OAL/Dia, 1 in Bore Dia, Gray Painted, Steel, Setscrew, Light Duty Non-Expansion Round/Straight Bore
Item: BD7GFEModel: 767597Cross Ref: VF3S-116M
7 In Stock
Ships within 2 days via
€96.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Circle Dia. | 3" |
| Bolt Spacing | 2 3/5" |
| Bore Dia. | 1" |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 3 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 3 Bolt Flange Block |
| Insert Part Number | VS-116 |
| Length Through Bore | 1.109" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 3500 RPM |
| Mounting | Yes |
| Mounting Bolts | 23/64" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 3 |
| Nominal Bolt Circle Dia | 3" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 1 3/16" |
| Overall Dia. | 3 3/4" |
| Overall Length | 3 3/4" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Product Type | Light Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF3S 100-M Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Overall Length | Max. Speed | Bolt Circle Dia. | Inside Dia. | Housing Material | Finish | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767748 | 1 1/4" | 4 13/16" | 3000 RPM | 3 15/16" | 1 1/4" | Cast Iron | Painted | Gray | €148.43 | |
 |
767736 | 7/8" | 3 3/4" | 3500 RPM | 3" | - | Cast Iron | Painted | Gray | €198.25 | |
 |
767746 | 1 1/4" | 4 7/16" | 3000 RPM | 3 9/16" | 1 1/4" | Cast Iron | Painted | Gray | €130.28 | |
 |
767599 | 1 3/16" | 4 7/16" | 3000 RPM | 3 9/16" | 1 3/16" | Cast Iron | Painted | Gray | €130.28 | |
 |
767606 | 3/4" | 3 9/16" | 4000 RPM | 2 13/16" | 3/4" | Cast Iron | Painted | Gray | €109.49 | |
 |
767841 | 5/8" | 3 3/16" | 5000 RPM | 2 1/2" | 5/8" | Cast Iron | Painted | Gray | €83.54 | |
 |

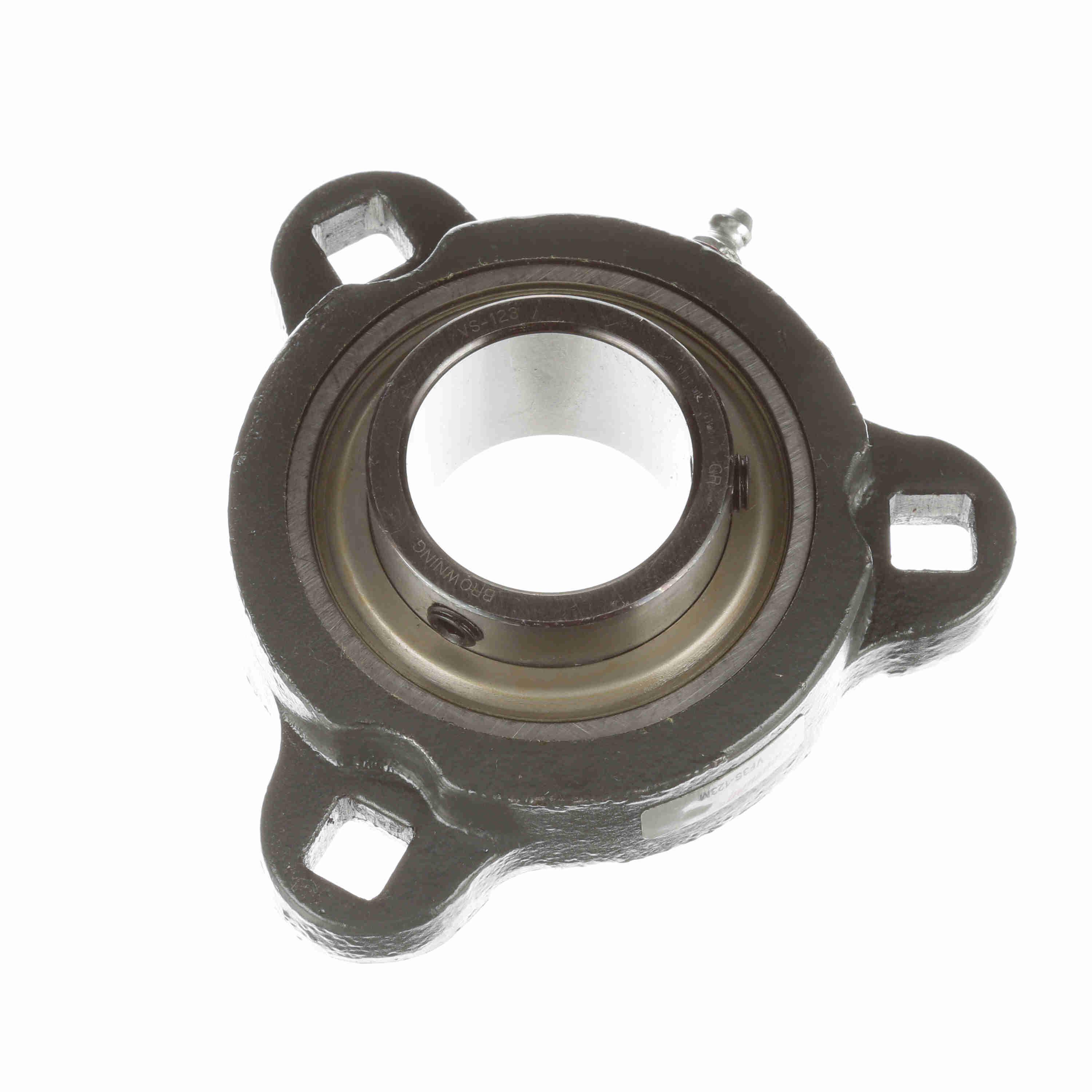

767756 | 1 7/16" | 4 13/16" | 2500 RPM | 3 15/16" | 1 7/16" | - | Painted | Gray | €148.43 |
