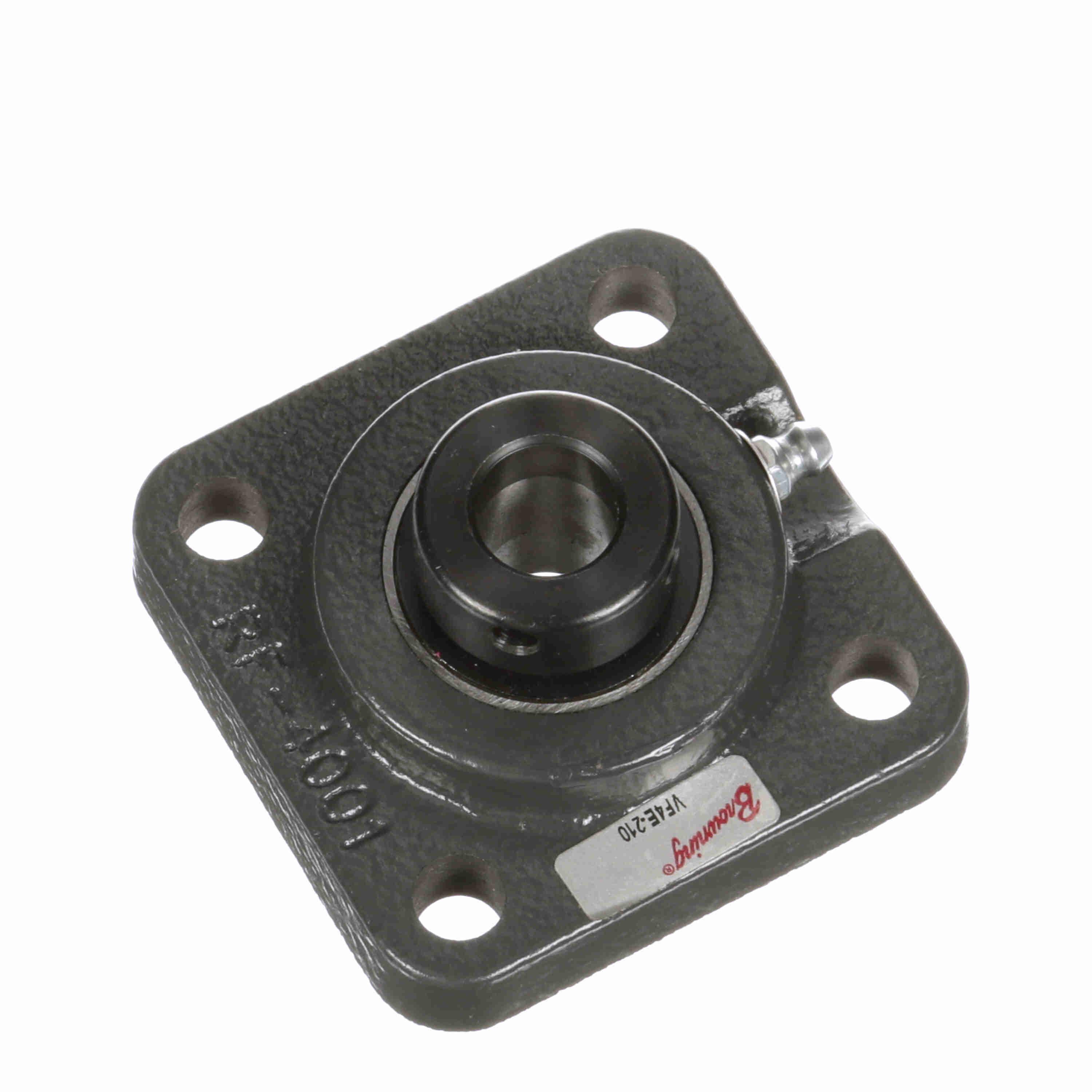

BROWNING 767356 VF4E-210 Four Bolt Flange Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Eccentric Lock
Item: BF6EPMModel: 767356Cross Ref: VF4E-210
7 In Stock
Ships within 2 days via
€101.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 2 1/8" |
| Bore Dia. | 5/8" |
| Color | Gray |
| Dynamic Load Capacity | 2108 lbs. |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Locking Device | Eccentric Collar |
| Material | Steel |
| Max. Speed | 7500 RPM |
| Mounting | Yes |
| Overall Depth | 1 33/64" |
| Overall Dia. | 3" |
| Overall Height | 3" |
| Overall Length | 3" |
| Product Type | Normal Duty Non-Expansion Round/Straight Bore |
| Seal Material | Nitrile Rubber |
| Series | VF4E 200 Series |
| Static Load Capacity | 1117 lbs. |
| Temp. Rating | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.86 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Finish | Locking Device | Bolt Center To Center Length | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767927 | - | - | - | - | - | - | - | - | €129.41 | |
 |
767362 | 1" | 3 3/4" | 3 3/4" | 5500 RPM | Painted | Eccentric Collar | 2 3/4" | - | €151.27 | |
 |
767957 | 1/2" | - | - | 7500 RPM | Black Oxide | - | - | 1.575" | €74.33 | |
 |
767635 | 1 1/4" | 4 1/4" | 4 1/4" | 4500 RPM | Painted | Eccentric | 3 1/4" | - | €127.73 | |
 |
767897 | 15/16" | 3 3/4" | 3 3/4" | 5500 RPM | Painted | Eccentric | 2 3/4" | - | €121.13 | |
 |
767367 | 1 1/8" | 4 1/4" | 4 1/4" | 4500 RPM | Painted | Eccentric | 3 1/4" | - | €143.22 | |
 |
767926 | 1/2" | 3" | 3" | 7500 RPM | Painted | Eccentric | 2 1/8" | - | €99.32 |
