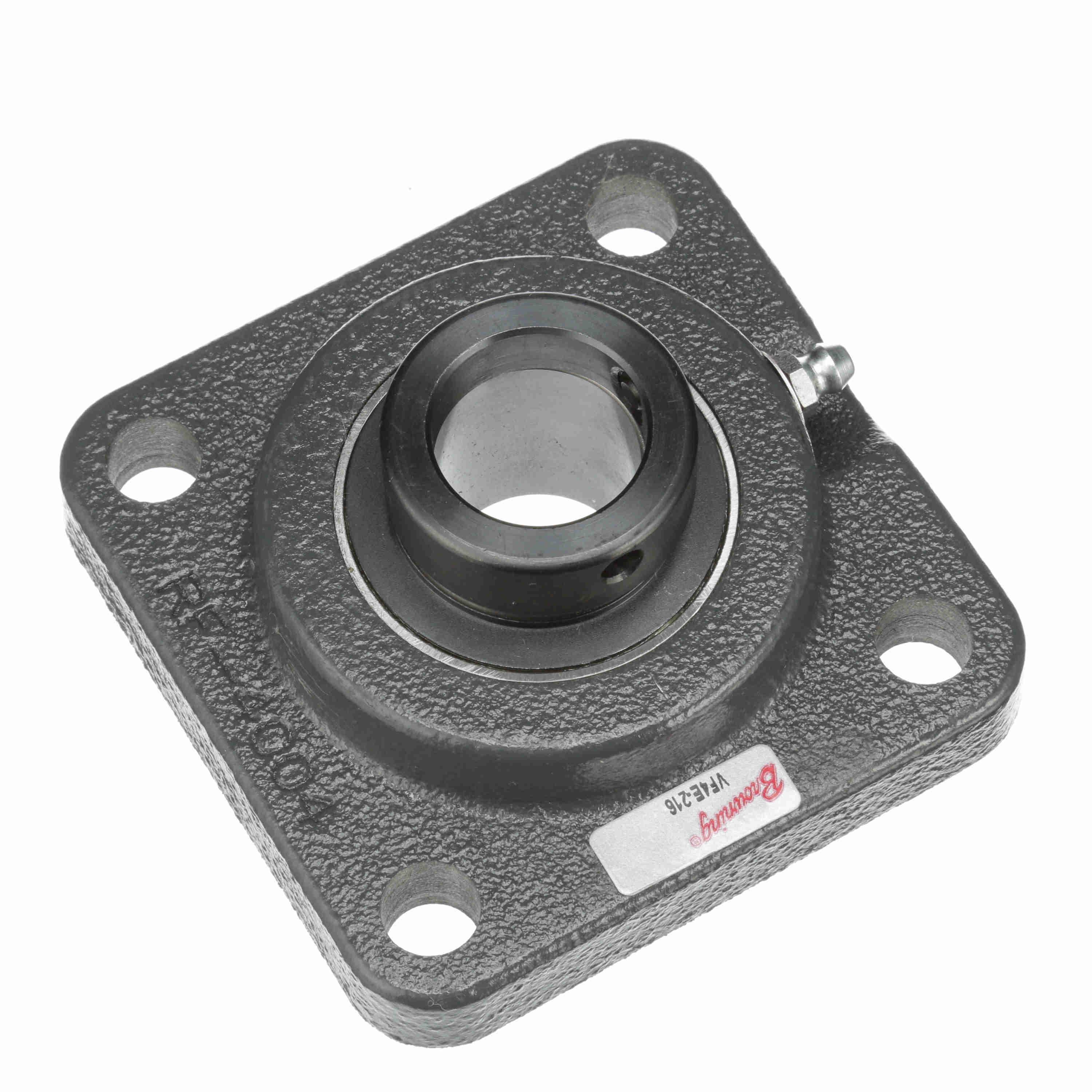

BROWNING 767362 VF4E-216 Four Bolt Flange Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Eccentric Lock
Item: BD8CRRModel: 767362Cross Ref: VF4E-216
7 In Stock
Ships within 2 days via
€151.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 2 3/4" |
| Bolt Spacing | 2 3/4" |
| Bore Dia. | 1" |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Insert Part Number | VE-216 |
| Inside Dia. | 1" |
| Length Through Bore | 1 3/4" |
| Locking Device | Eccentric Collar |
| Material | Steel |
| Max. Speed | 5500 RPM |
| Mounting | Yes |
| Mounting Bolts | 7/16" |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 4" |
| Number Of Rows | 1 |
| Other Features | Normal Duty |
| Overall Depth | 1 27/32" |
| Overall Dia. | 3 3/4" |
| Overall Height | 3 3/4" |
| Overall Length | 3 3/4" |
| Pilot Configuration | No Pilot |
| Product Type | Normal Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF4E 200 Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.987 Kg |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 4.67 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Finish | Locking Device | Bolt Center To Center Length | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767927 | - | - | - | - | - | - | - | - | €129.41 | |
 |

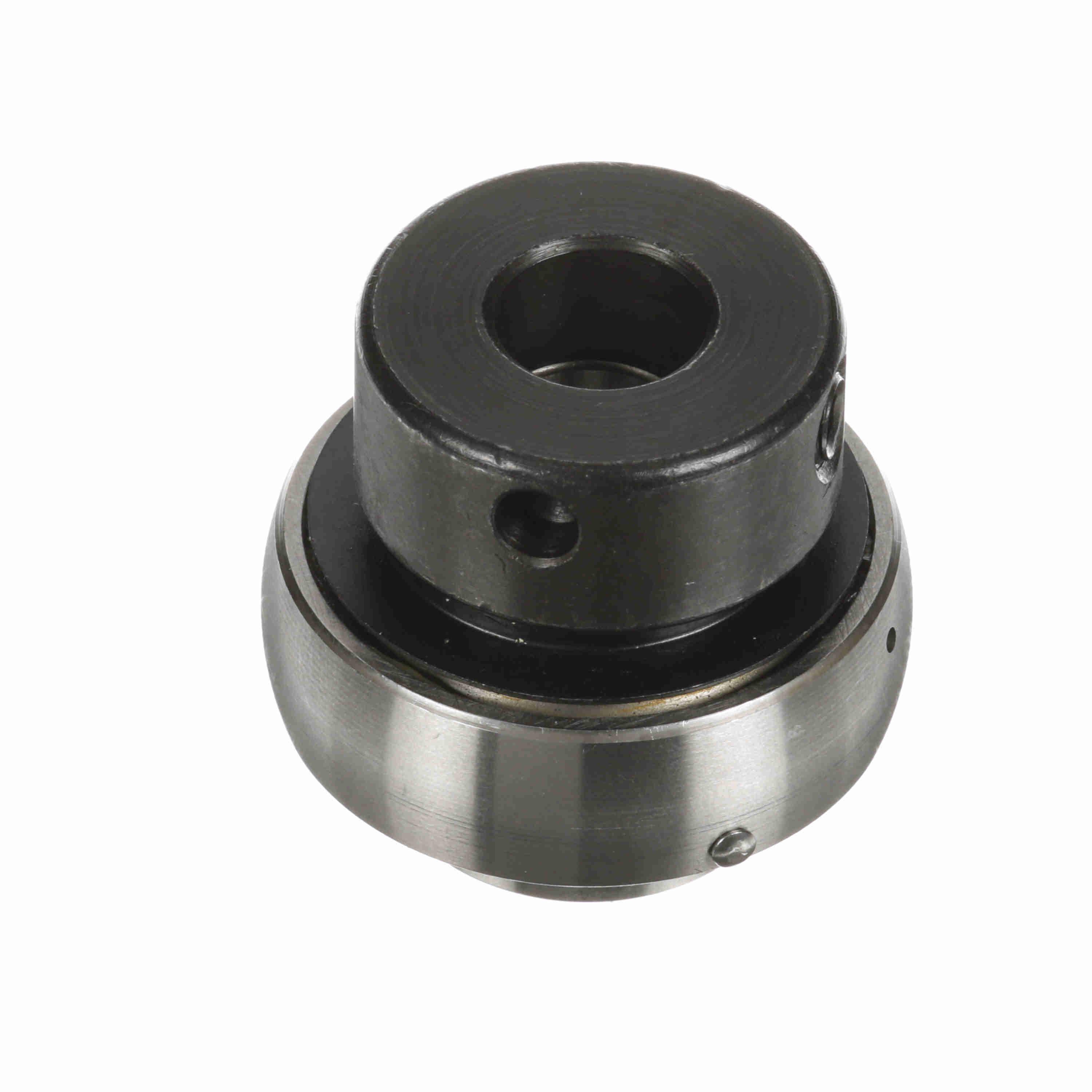

767957 | 1/2" | - | - | 7500 RPM | Black Oxide | - | - | 1.575" | €74.33 | |
 |

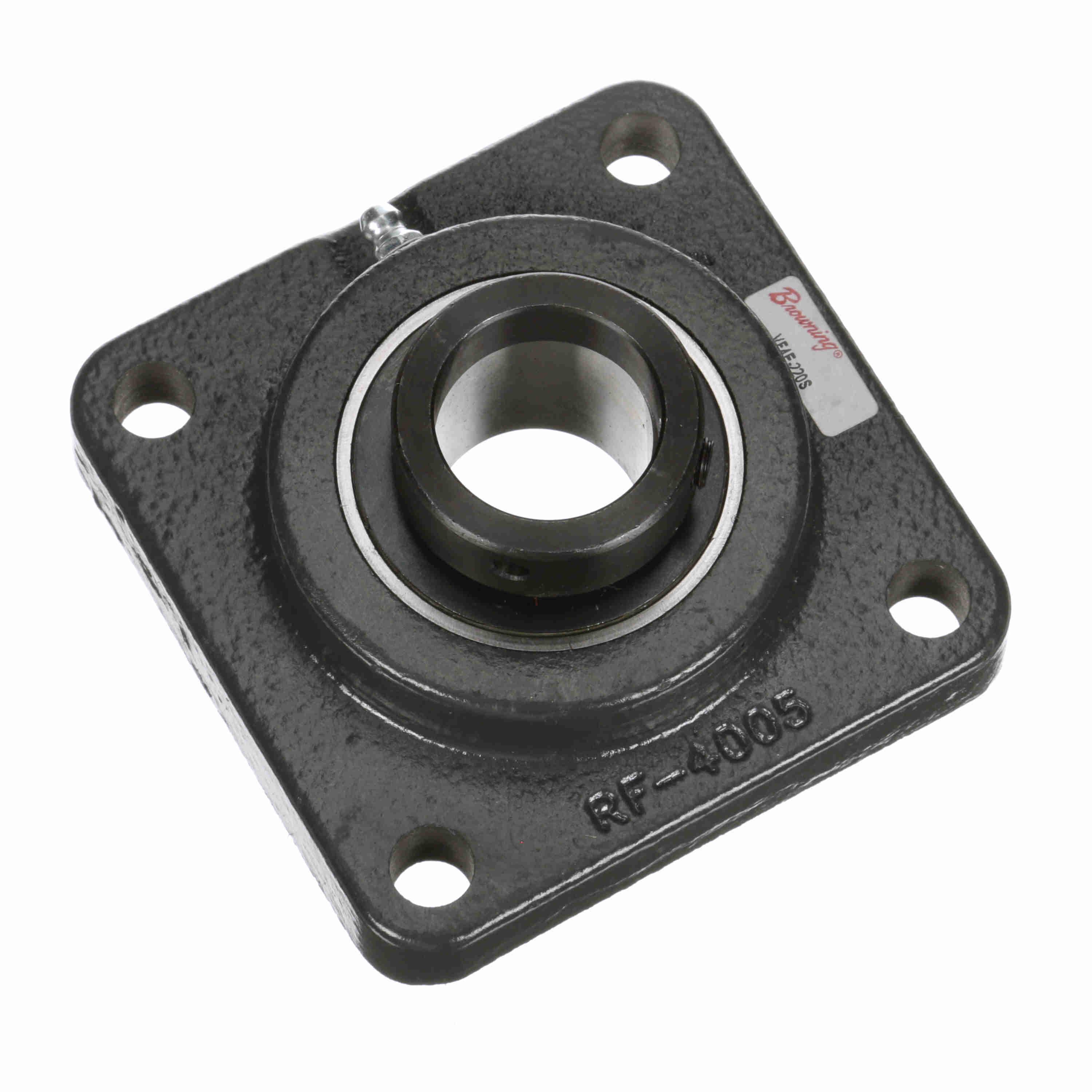

767635 | 1 1/4" | 4 1/4" | 4 1/4" | 4500 RPM | Painted | Eccentric | 3 1/4" | - | €127.73 | |
 |

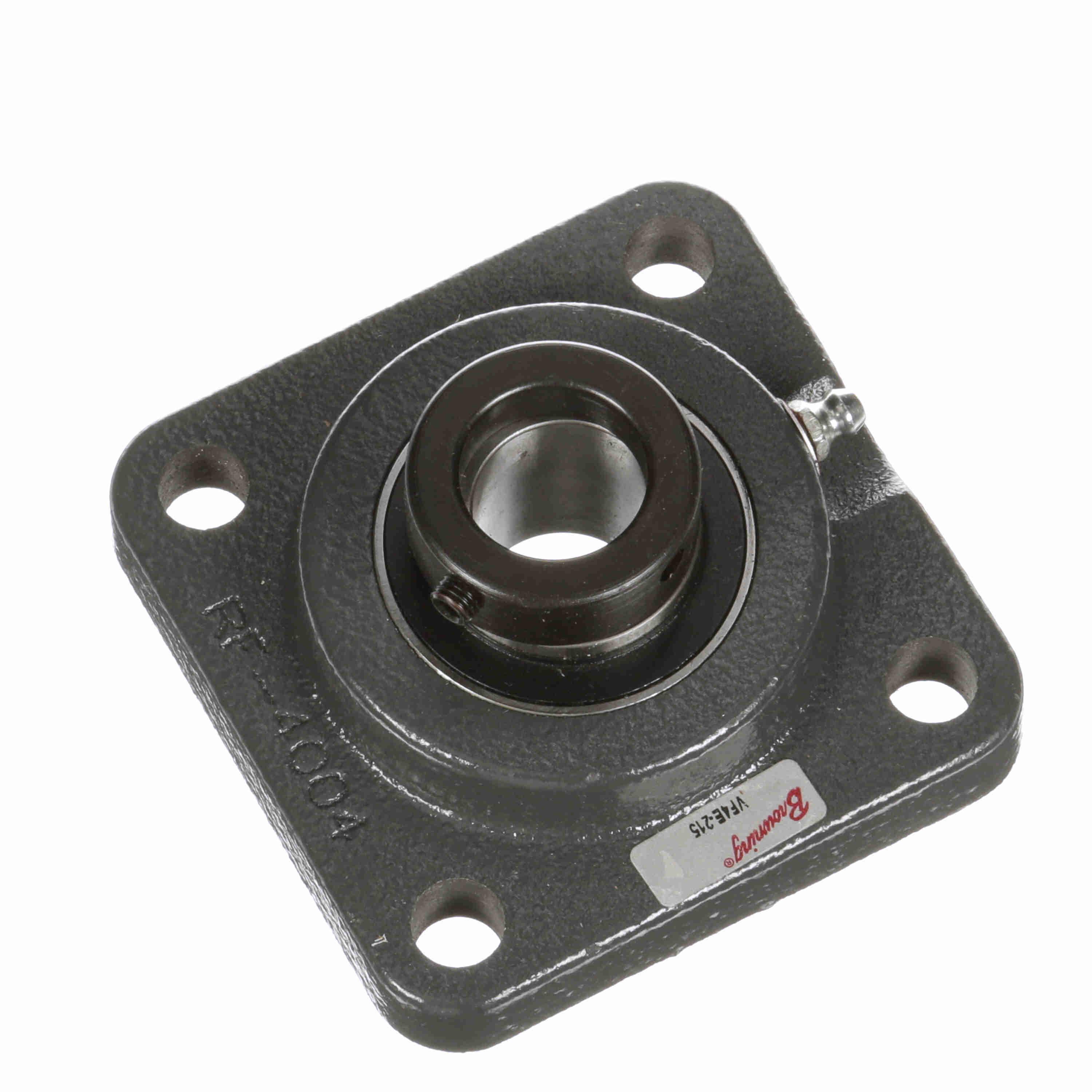

767897 | 15/16" | 3 3/4" | 3 3/4" | 5500 RPM | Painted | Eccentric | 2 3/4" | - | €121.13 | |
 |

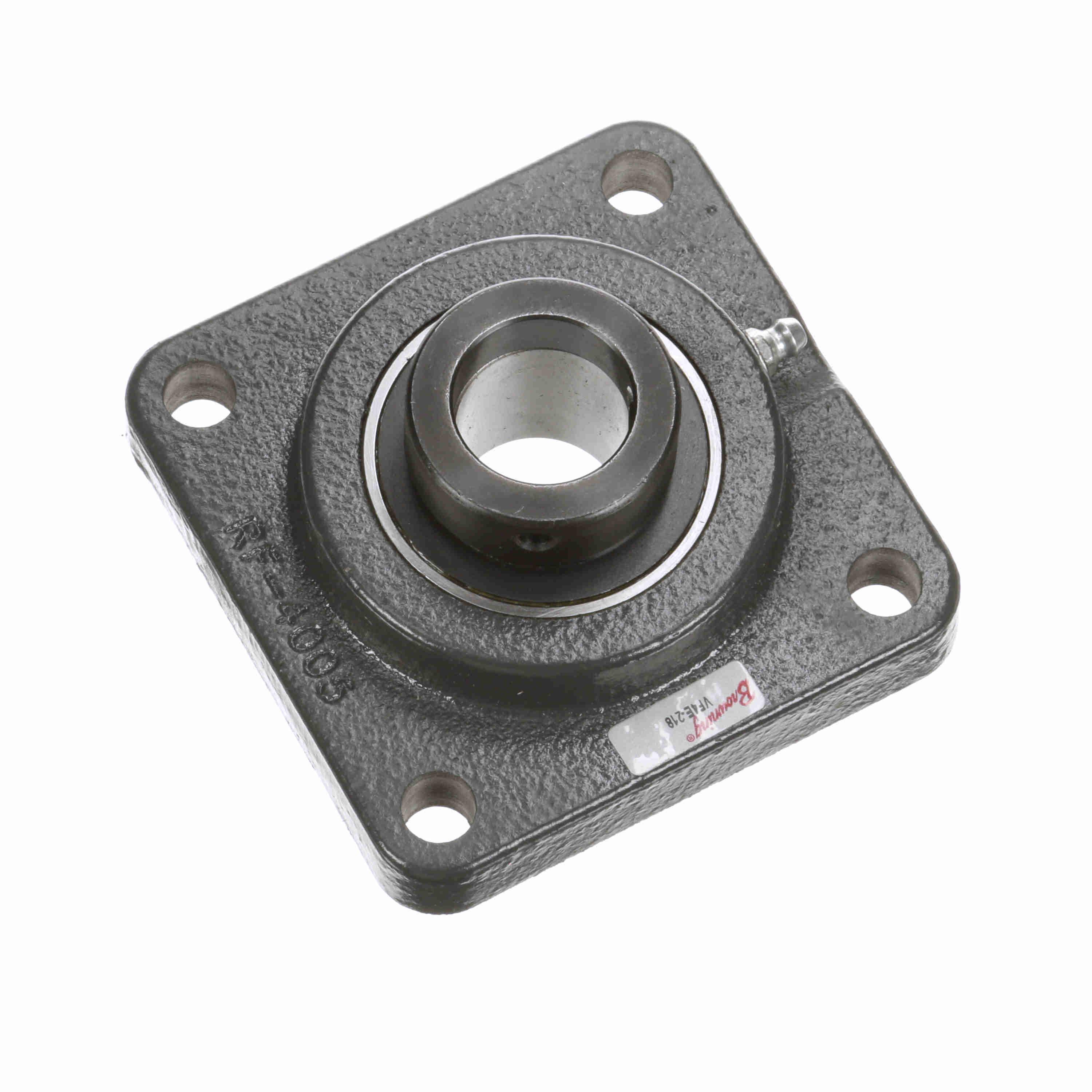

767367 | 1 1/8" | 4 1/4" | 4 1/4" | 4500 RPM | Painted | Eccentric | 3 1/4" | - | €143.22 | |
 |

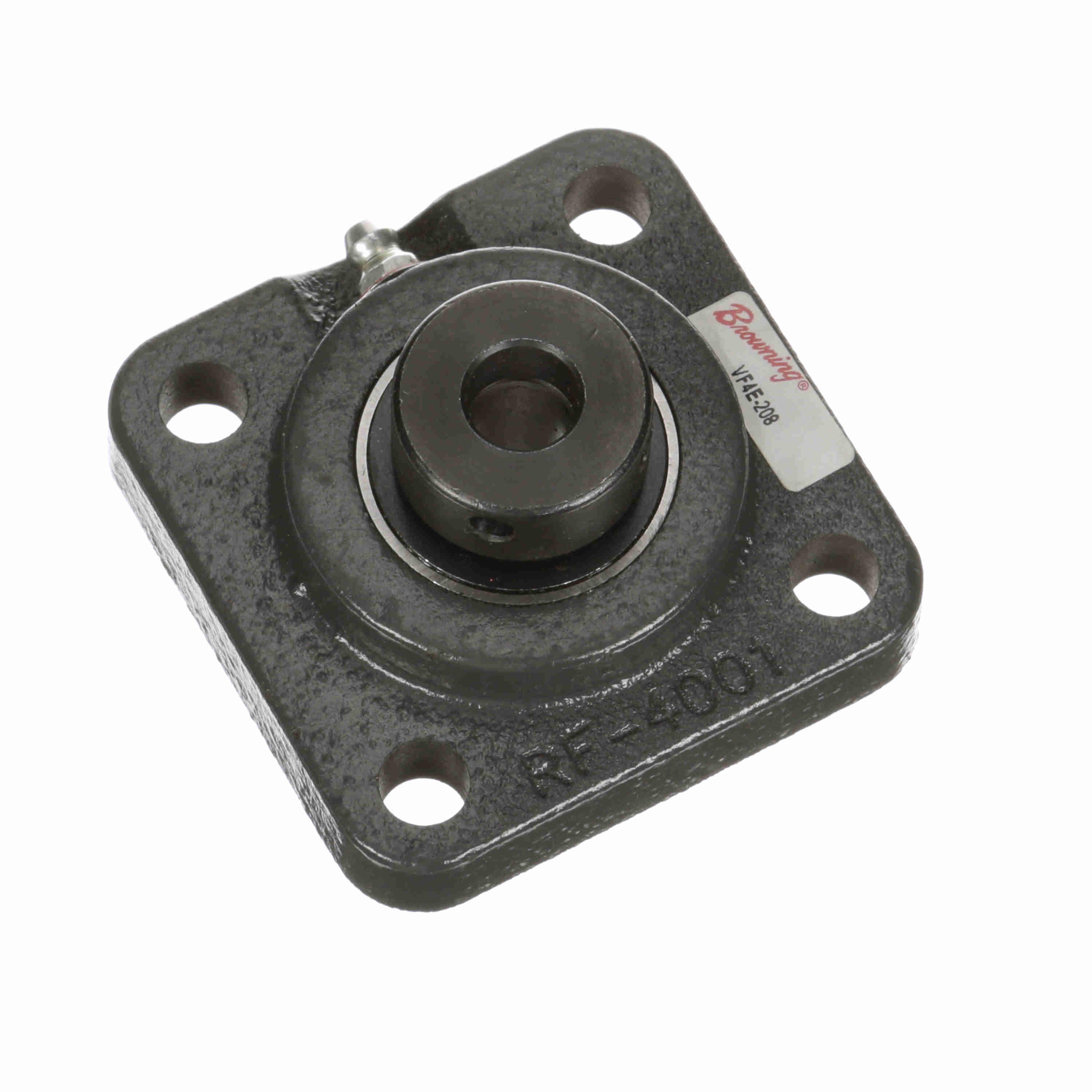

767926 | 1/2" | 3" | 3" | 7500 RPM | Painted | Eccentric | 2 1/8" | - | €99.32 | |
 |

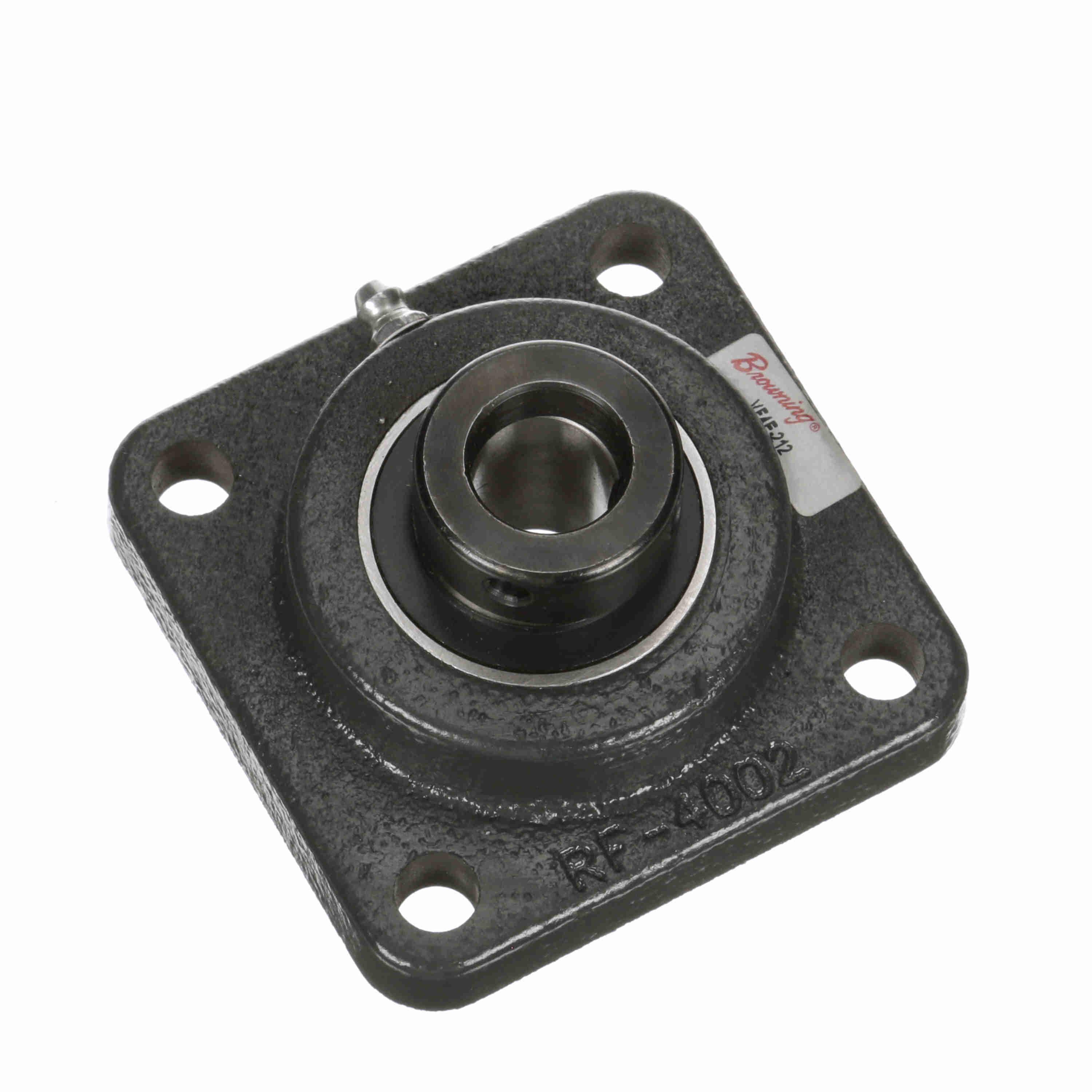

767896 | 3/4" | 3 3/8" | 3 3/8" | 6500 RPM | Painted | Eccentric Collar | 2 1/2" | - | €111.62 |
