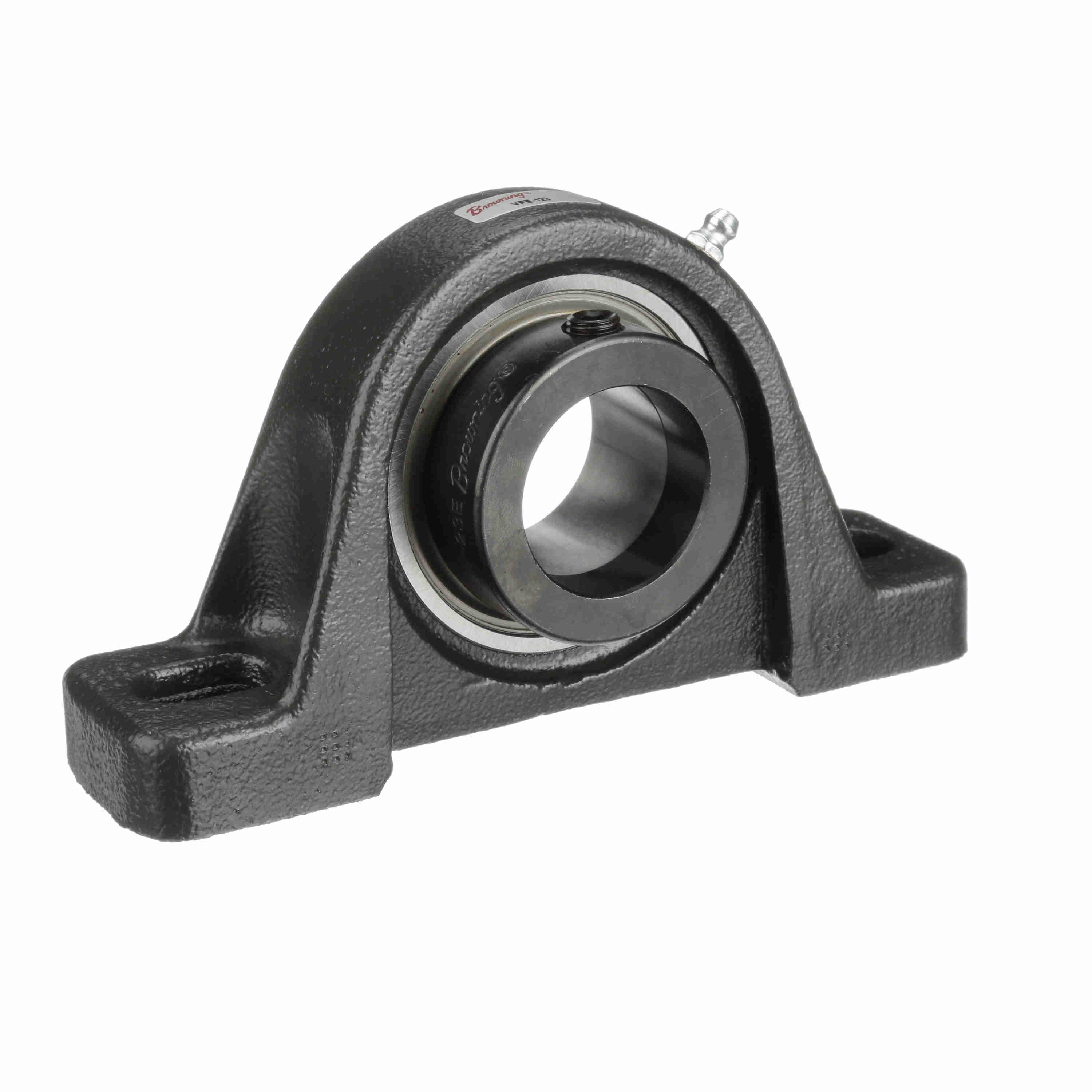

BROWNING 767349 VPE-123 Two Bolt Pillow Block Ball Bearing, Mounted, Cast Iron, Eccentric Lock, 1-7/16 in Bore Dia, Gray Painted
Item: BE3DRPModel: 767349Cross Ref: VPE-123
7 In Stock
Ships within 2 days via
€150.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 5" |
| Base To Bore Centerline | 1 7/8" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 5/8" to 5 3/8" |
| Bore Dia. | 1 7/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VE-123 |
| Length Through Bore | 1.578" |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 2500 RPM |
| Mounting | Yes |
| Mounting Bolts | 1/2" |
| Mounting Method | Eccentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Center To Center | 5" |
| Overall Height | 3 11/16" |
| Overall Length | 6 3/4" |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPE 100 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 9.37 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Base To Center Height | Dynamic Load Capacity | Static Load Capacity | Base Width | Overall Height | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767649 | 1 3/16" | Cast Iron | 1.688" | 4381 lbs. | 2567 lbs. | 1 3/4" | 3 9/32" | VPE 100 Series | €127.20 | |
 |
767768 | 15/16" | Ductile Iron | 1.438" | 2801 lbs. | 1651 lbs. | 1 13/32" | - | VPE 100 Series | €120.80 | |
 |
767637 | 1 1/4" | Cast Iron | 1.688" | 4381 lbs. | 2567 lbs. | 1 3/4" | 3 9/32" | VPE 200 Series | €357.90 | |
 |
767313 | 1 1/4" | Cast Iron | 1.688" | 4381 lbs. | 2567 lbs. | 1 3/4" | 3 9/32" | VPE 100 Series | €291.83 | |
 |
767319 | 1 1/2" | Cast Iron | 2" | 7340 lbs. | 4467 lbs. | 1 15/16" | 4" | VPE 100 Series | €186.12 | |
 |
767323 | 1 15/16" | Cast Iron | 2 1/4" | 7889 lbs. | 5216 lbs. | 2 3/16" | 4 9/16" | VPE 100 Series | €216.36 | |
 |
767307 | 1 1/4" | Cast Iron | 1 7/8" | - | - | - | - | VPE 100 Series | €150.40 |
