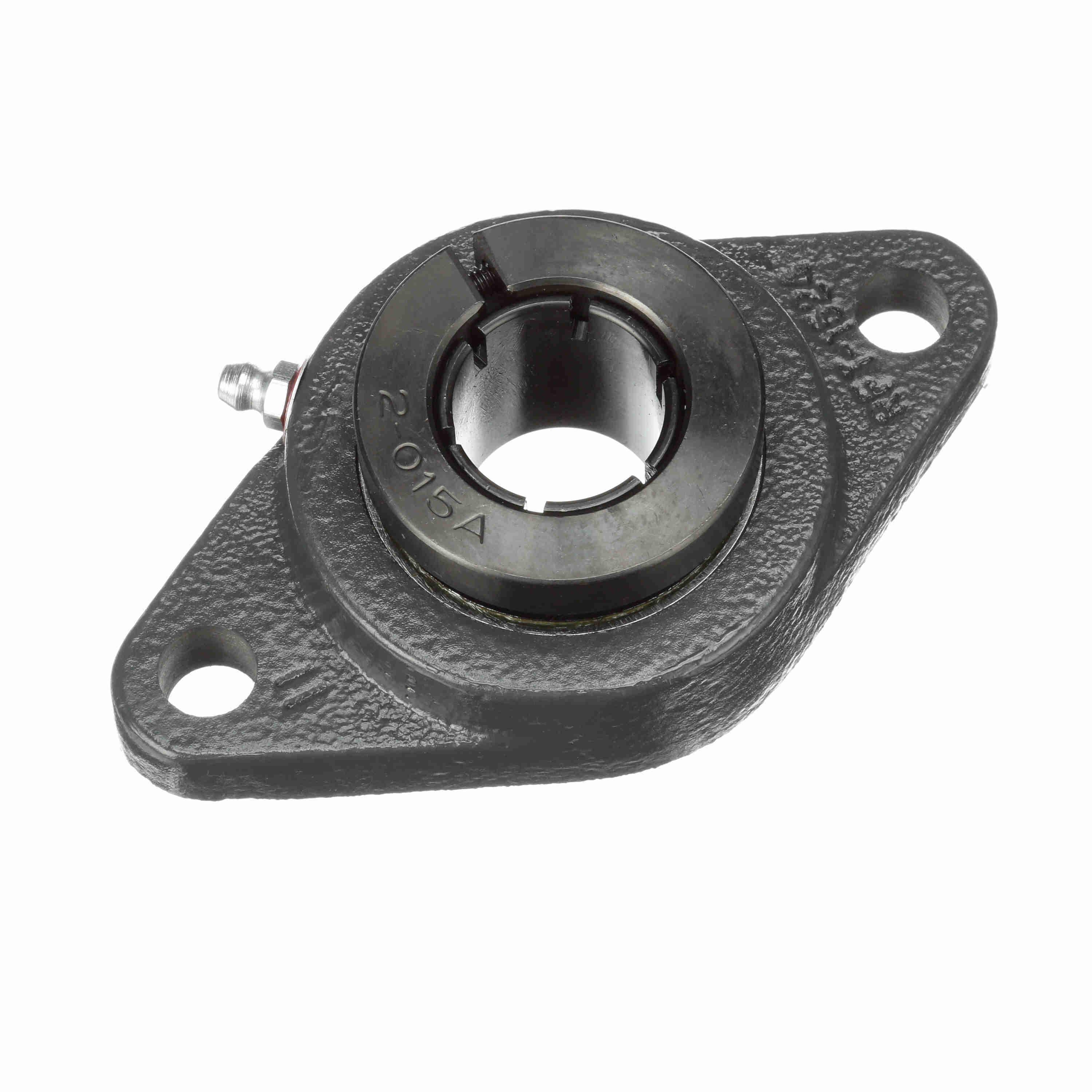

BROWNING 766954 VF2B-212 Two Bolt Flange Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Concentric Lock
Item: BE3TUUModel: 766954Cross Ref: VF2B-212
7 In Stock
Ships within 2 days via
€155.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3 17/32" |
| Bolt Spacing | 3.531" |
| Bore Dia. | 3/4" |
| Color | Gray |
| Dynamic Load Capacity | 2611 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VB-212 |
| Length Through Bore | 1.219" |
| Locking Device | BOA Concentric |
| Material | Steel |
| Max. Speed | 6500 RPM |
| Mounting Bolts | 3/8" |
| Mounting Method | Concentric Collar |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 3 1/2" |
| Number Of Rows | 1 |
| Other Features | Normal Duty, Has Flinger |
| Overall Depth | 1 11/32" |
| Overall Dia. | 4 13/32" |
| Overall Height | 2 1/2" |
| Overall Length | 4 13/32" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2B 200 Series |
| Static Load Capacity | 1444 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Bolt Center To Center Length | Housing Material | Temp. Range | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
764563 | 1.438" | - | - | - | - | Cast Iron | -20°F to +200°F | Single Lip Contact | €165.19 | |
|
764562 | - | - | - | - | - | - | - | - | €206.20 | |
|
766957 | 1" | 4 7/8" | 2 3/4" | 5500 RPM | 3 57/64" | Cast Iron | -20°F to +200°F | Single Lip Contact | €181.64 | |
|
766959 | 1 3/16" | 5 9/16" | 3 1/8" | 4500 RPM | 4 19/32" | Cast Iron | -20°F to +200°F | Single Lip Contact | €228.41 | |
 |
766960 | 1 1/4" | 5 9/16" | 3 1/8" | 4500 RPM | 4 19/32" | Cast Iron | -20°F to +200°F | Single Lip Contact | €391.86 |
