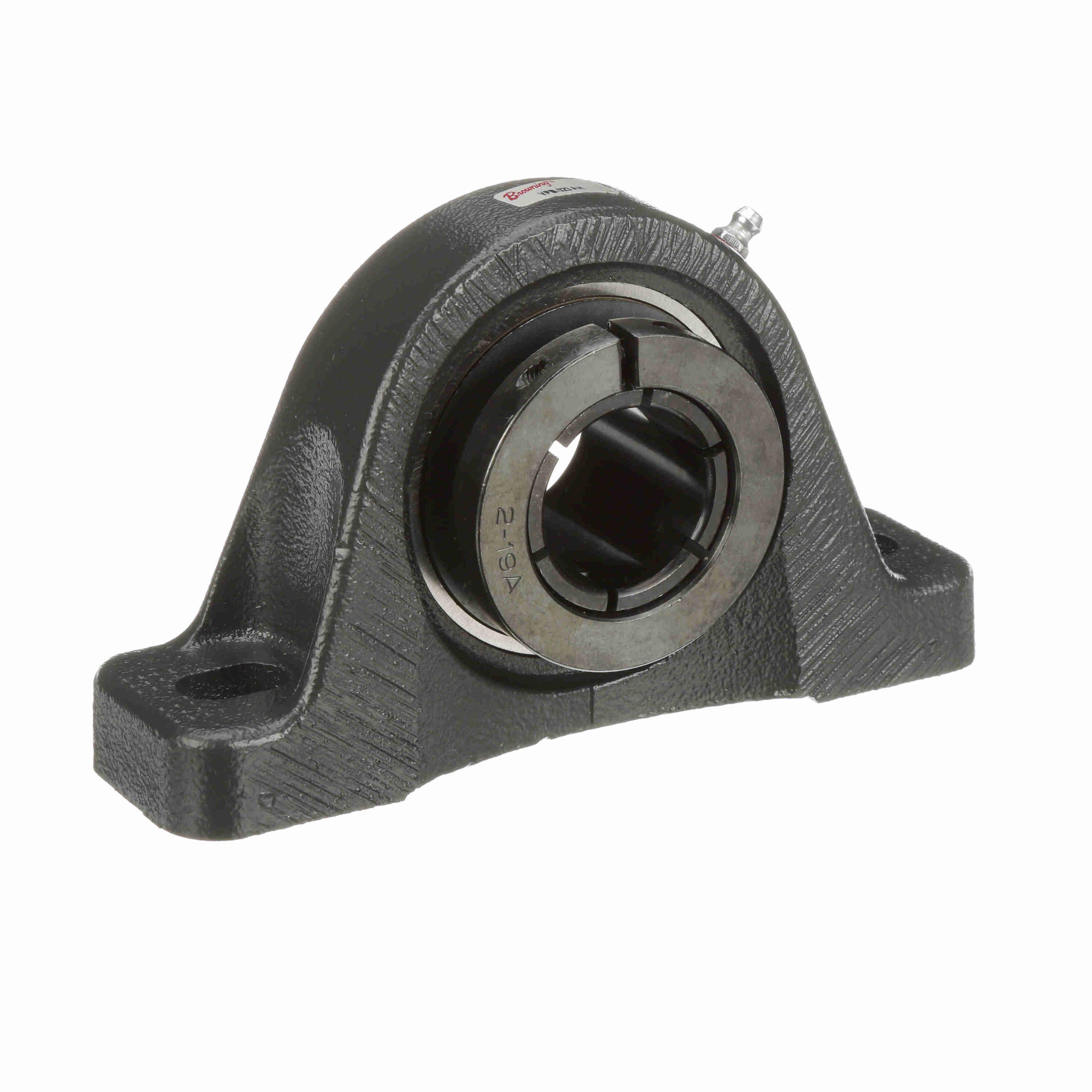

BROWNING 764065 VPB-323 AH Two Bolt Pillow Block Ball Bearing, Cast Iron, Black Oxided Inner, Concentric Lock, 1.438 in Bore Dia, 2 1/8 in Base To Center Height
Item: BF2JDDModel: 764065Cross Ref: VPB-323 AH
7 In Stock
Ships within 2 days via
€303.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base To Bore Centerline | 2 1/8" |
| Base To Center Height | 2 1/8" |
| Base Width | 2" |
| Bolt Center To Center Length | 5 5/16" to 5 3/4" |
| Bore Dia. | 1.438" |
| Bore Type | Round |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VB-323 |
| Inside Dia. | 1 7/16" |
| Length Through Bore | 1.938" |
| Locking Device | BOA Concentric |
| Material | Cast Iron |
| Max. Bolt Spacing | 5.938" |
| Max. Speed | 3500 RPM |
| Min. Bolt Spacing | 5 1/8" |
| Mounting Bolts | 1/2" |
| Mounting Method | Concentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Center To Center | 5 1/2" |
| Overall Height | 4 3/16" |
| Overall Length | 7 1/4" |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPB 200 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 2.47 |
| Ship height (cm) | 10.64 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Base Width | Base To Center Height | Temp. | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
764062 | 2 7/16" | 5 9/16" | 11789 lbs. | 8150 lbs. | 2 3/8" | 2 3/4" | -20°F to +200°F | 6 7/8" to 7 15/16" | €461.09 | |
 |
764060 | 1 15/16" | 4 9/16" | 7889 lbs. | 5216 lbs. | 2 3/16" | 2 1/4" | -20°F to +200°F | 5 7/8" to 6 1/2" | €307.17 | |
 |
764056 | 1" | 2 13/16" | 2801 lbs. | 1651 lbs. | 1 13/32" | 1.438" | -20°F to +200°F | 3 11/16" to 4 9/16" | €181.64 | |
 |
764059 | 1 11/16" | 4 1/4" | 7901 lbs. | 5139 lbs. | 2" | 2 1/8" | -20°F to +200°F | 5 1/4" to 6 1/16" | €280.91 | |
 |
764057 | 1 3/16" | 3 9/32" | 4381 lbs. | 2567 lbs. | 1 3/4" | 1.688" | -20°F to +200°F | 4 3/16" to 5 1/16" | €214.98 | |
 |
764058 | 1 7/16" | 3 11/16" | 5782 lbs. | 3493 lbs. | 1 3/4" | 1 7/8" | -20°F to +200°F | 4 5/8" to 5 3/8" | €225.06 | |
 |
764061 | 2 3/16" | 4 31/32" | 9752 lbs. | 6601 lbs. | 2 5/16" | 2 1/2" | -20°F to +200°F | 6 9/16" to 7 5/15" | €379.71 |
