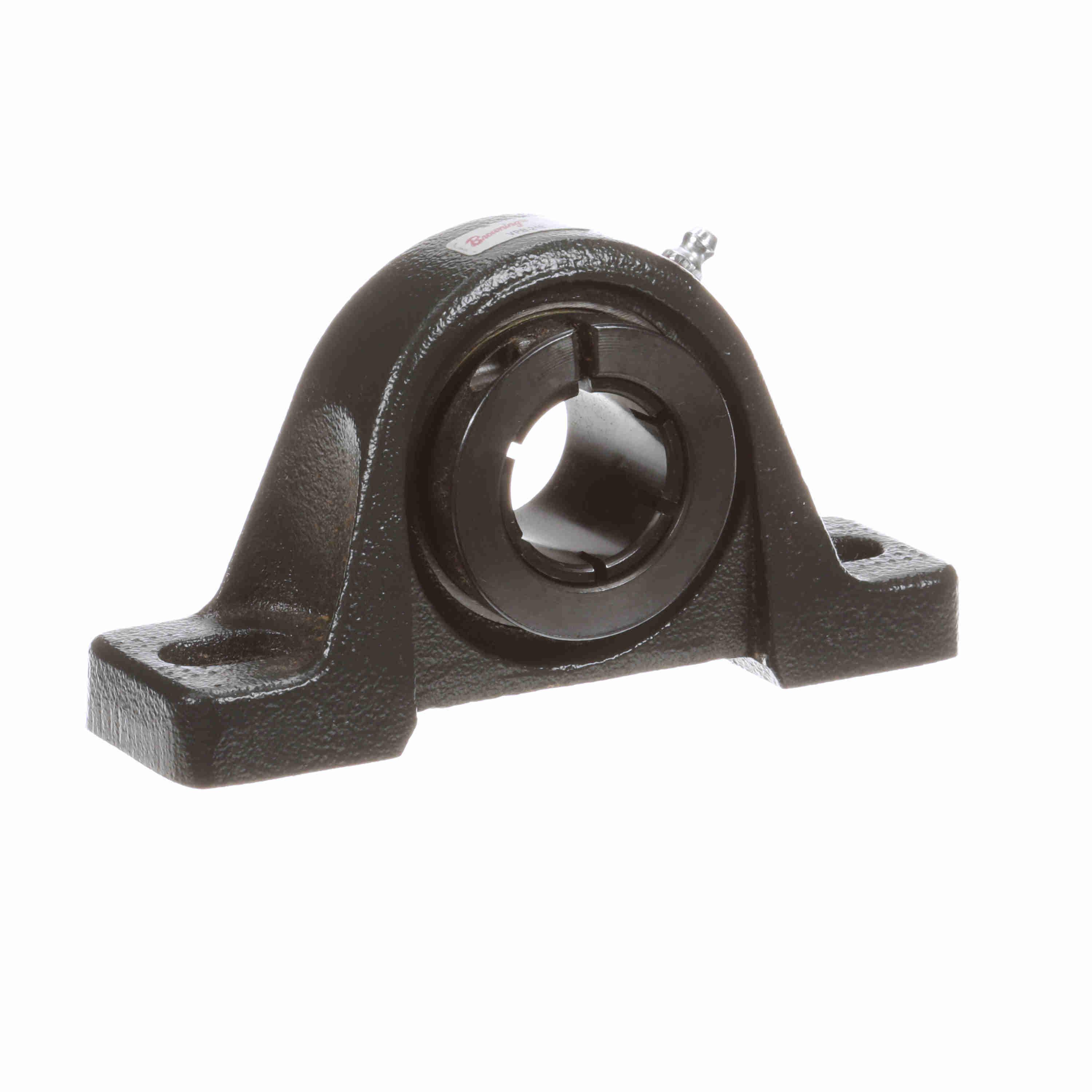

BROWNING 764057 VPB-219 AH Two Bolt Pillow Block Ball Bearing, Cast Iron, Black Oxided Inner, Concentric Lock
Item: BD7KFLModel: 764057Cross Ref: VPB-219 AH
7 In Stock
Ships within 2 days via
€214.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base To Bore Centerline | 1 11/16" |
| Base To Center Height | 1.688" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 3/16" to 5 1/16" |
| Bore Dia. | 1 3/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VB-219 |
| Inside Dia. | 1 3/16" |
| Length Through Bore | 1 1/2" |
| Locking Device | BOA Concentric |
| Material | Cast Iron |
| Max. Bolt Spacing | 5.063" |
| Max. Speed | 4500 RPM |
| Min. Bolt Spacing | 4.188" |
| Mounting | Yes |
| Mounting Bolts | 1/2" |
| Mounting Method | Concentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 4.7" |
| Number Of Rows | 1 |
| Other Features | Air Handling |
| Overall Height | 3 9/32" |
| Overall Length | 6 3/16" |
| Product Type | Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPB 200 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 1.311 Kg |
Shipping Info:
| Ship weight (kg) | 1.3 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 15.72 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Mounting Type | Base Width | Bolt Center To Center Length | Base To Bore Centerline | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
764062 | 2 7/16" | 9 1/2" | 5 9/16" | 2500 RPM | 2 Bolt Base | 2 3/8" | 6 7/8" to 7 15/16" | 2 3/4" | €461.09 | |
 |
764060 | 1 15/16" | 8" | 4 9/16" | 3000 RPM | 2 Bolt Base | 2 3/16" | 5 7/8" to 6 1/2" | 2 1/4" | €307.17 | |
 |
764056 | 1" | 5 1/2" | 2 13/16" | 5500 RPM | 2 Bolt Base | 1 13/32" | 3 11/16" to 4 9/16" | 1 7/16" | €181.64 | |
 |
764059 | 1 11/16" | 7 3/8" | 4 1/4" | 3000 RPM | 2 Bolt Base | 2" | 5 1/4" to 6 1/16" | 2 1/8" | €280.91 | |
 |
764058 | 1 7/16" | 6 3/4" | 3 11/16" | 4000 RPM | 2 Bolt Base | 1 3/4" | 4 5/8" to 5 3/8" | 1 7/8" | €225.06 | |
 |
VPB-219 CTY | - | - | - | - | - | - | - | - | €140.18 | |
 |
764061 | 2 3/16" | 8 13/16" | 4 31/32" | 2500 RPM | 2 Bolt Base | 2 5/16" | 6 9/16" to 7 5/15" | 2 1/2" | €379.71 |
