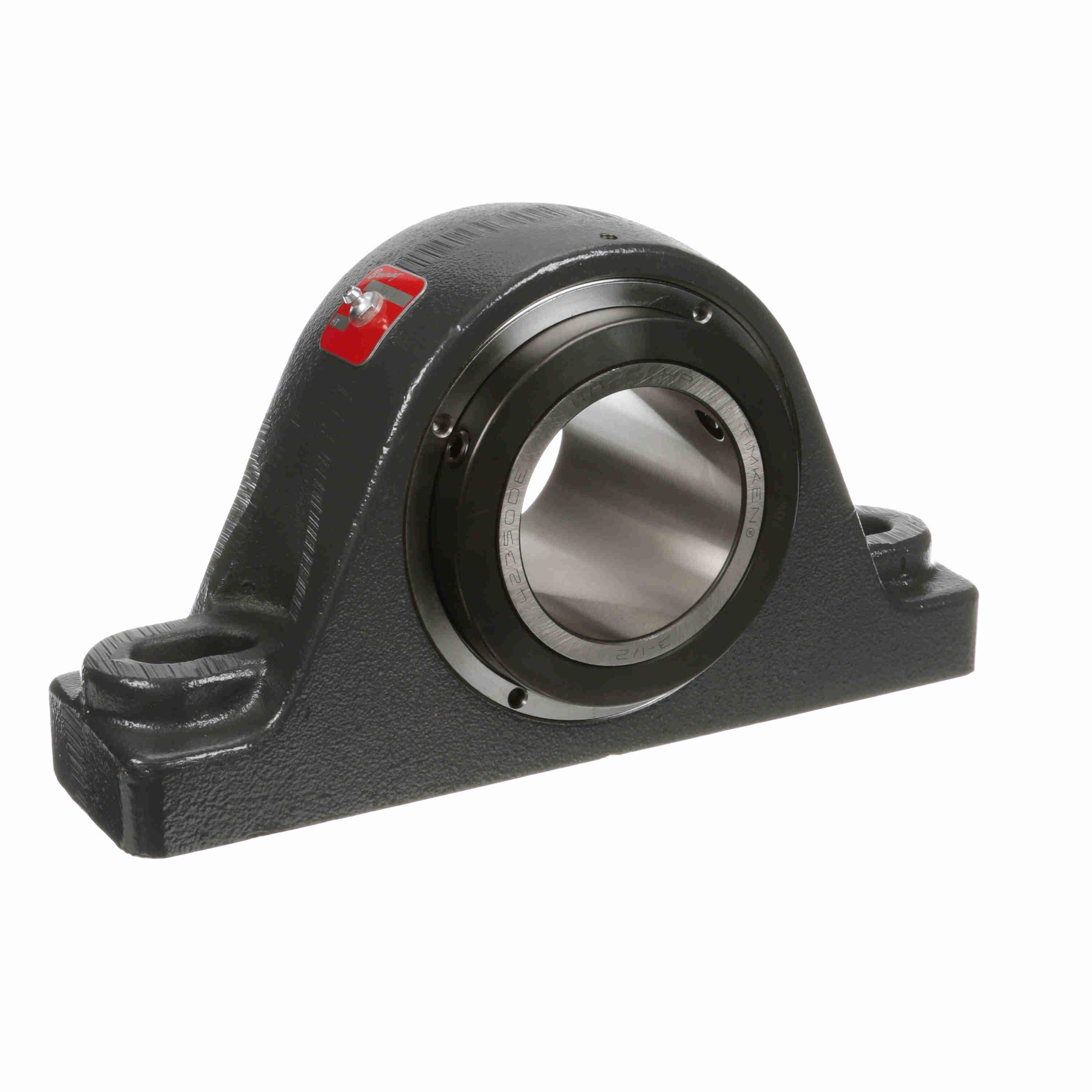

BROWNING 730018 PBE920X 3 1/2 Four Bolt Pillow Block Tapered Roller Bearing, Cast Iron, Double Collar Mount Lock
3 1/2"
Get it by Tuesday, Mar 31
€1,774.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Bearing |
| Base To Bore Centerline | 3 3/4" |
| Base To Center Height | 3 3/4" |
| Base Width | 3 5/8" |
| Bolt Center To Center Length | 9 3/4" to 11 1/2" |
| Bore Dia. | 3 1/2" |
| Bore Type | Round, Tapered |
| Color | Gray |
| Dynamic Load Capacity | 15320 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Inside Dia. | 3 1/2" |
| Length Through Bore | 5" |
| Locking Device | Double Set Screw Collar |
| Material | Cast Iron |
| Max. Bolt Spacing | 11 1/2" |
| Max. Speed | 1000 RPM |
| Min. Bolt Spacing | 9 3/4" |
| Mounting | Yes |
| Mounting Bolts | 7/8" |
| Mounting Method | Concentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 10.9" |
| Number Of Rows | 2 |
| Other Features | Double Collar, Heavy Duty |
| Overall Height | 7 1/2" |
| Overall Length | 14" |
| Overall Width | 5" |
| Product Datasheet | browning-pbe920fx4.pdf |
| Relubricatable | Yes |
| Rolling Element | Tapered Roller Bearing |
| Seal Type | Single Lip Contact |
| Series | PBE920 Series |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Max. Speed | Inside Dia. | Base Width | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
730008 | 2 3/16" | 9 5/8" | 3 3/4" | 5" | 2000 RPM | 2 3/16" | 2 5/8" | 6 11/16" to 8" | €535.49 | |
 |
730005 | 1 11/16" | 7 7/8" | 3 3/8" | 4 1/4" | 2500 RPM | 1 11/16" | 2 1/2" | 5 11/16" to 6 1/2" | €557.91 | |
 |
730006 | 1 15/16" | 8 7/8" | 3 1/2" | 4 1/2" | 2000 RPM | 1 15/16" | 2 1/2" | 6 3/16" to 7 1/4" | €473.94 | |
 |
730015 | 3" | 12" | 4 1/2" | 6 1/4" | 1500 RPM | 3" | 3" | 8 7/16" to 9 3/4" | €952.59 | |
 |
730009 | 2 1/4" | 10 1/2" | 4" | 5 1/2" | 1750 RPM | 2 1/4" | 2 7/8" | 7 1/8" to 8 3/4" | €649.17 | |
 |
730010 | 2 7/16" | 10 1/2" | 4" | 5 1/2" | 1750 RPM | 2 7/16" | 2 7/8" | 7 1/8" to 8 3/4" | €574.14 | |
 |
730007 | 2" | 8 7/8" | 3 1/2" | 4 1/2" | 2000 RPM | 2" | 2 1/2" | 6 3/16" to 7 1/4" | €473.94 |
