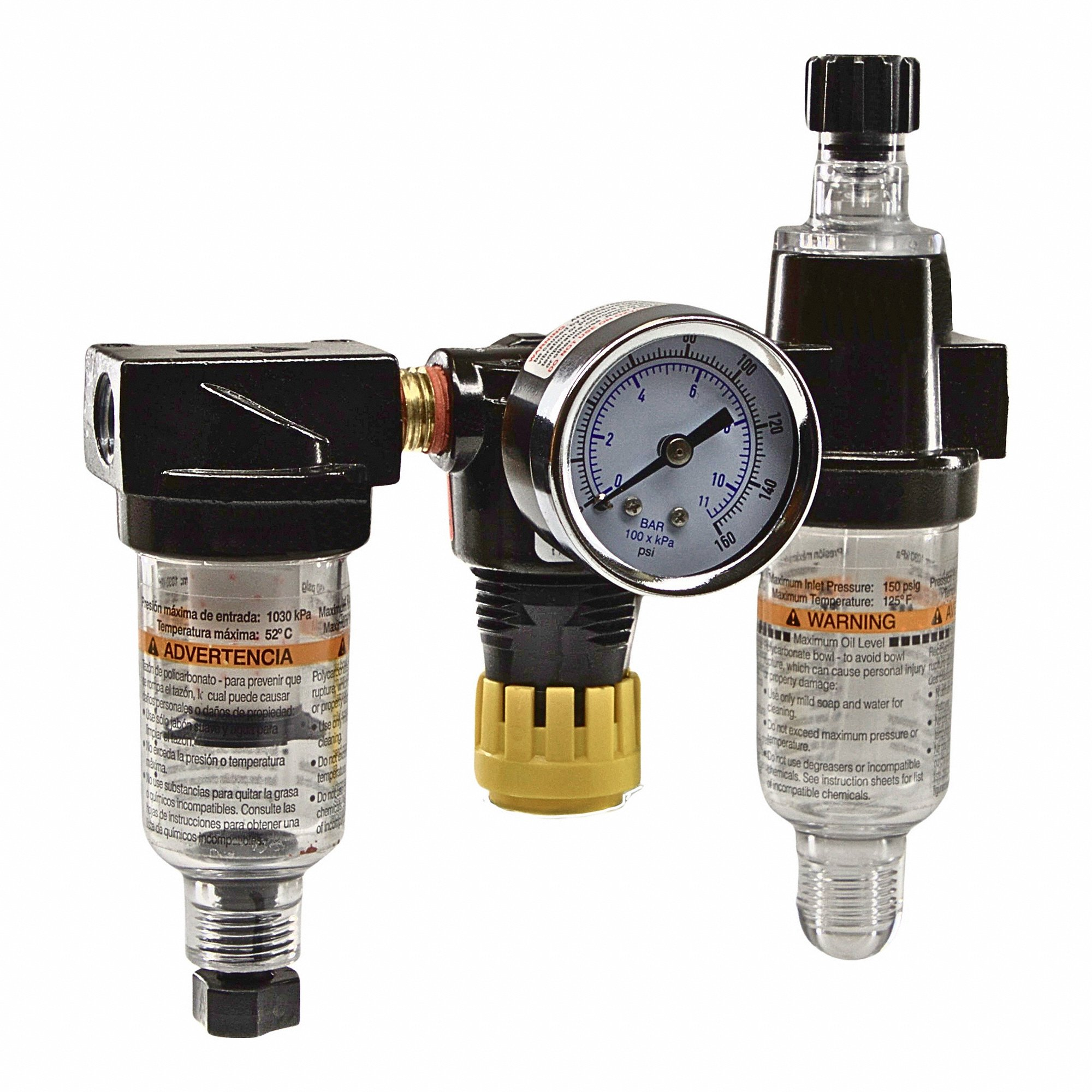

PARKER 14A11B18F0GF Filter/Regulator/Lubricator, 1/4 Inch NPT, 24 scfm, 250 psig Max Op Pressure, 5 micron
Item: BT6ZKRModel: 14A11B18F0GFCross Ref: 807AU9
7 In Stock
Ships within 2 days via
10.00% off
€297.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Adjustment Mechanism | Knob |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Body Material | Zinc |
| Drain Included | Yes |
| Drain Part Compatbility | PS404P |
| Drain Type | No Drain (Lubricator Bowl), Twist Drain (Filter Bowl) |
| Filter Bowl Capacity | 1 oz. |
| Filter Bowl Material | Polycarbonate |
| Filter Element Material | Plastic |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Lubricator Bowl Capacity | 1 oz. |
| Lubricator Bowl Material | Polycarbonate |
| Lubricator Type | Mist |
| Maximum Flow Rate | 24 SCFM |
| Maximum Operating Pressure | 250 psig |
| Maximum Operating Temperature | 125°F |
| Minimum Operating Temperature | 32°F |
| Overall Height | 6" |
| Overall Width | 5 3/4" |
| Pressure Control Type | Relieving |
| Pressure Drop | 125 psig |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Series | 14 Series |
| Weight | 0.4 lbs. |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 14.61 |
| Country of Origin | MX |
