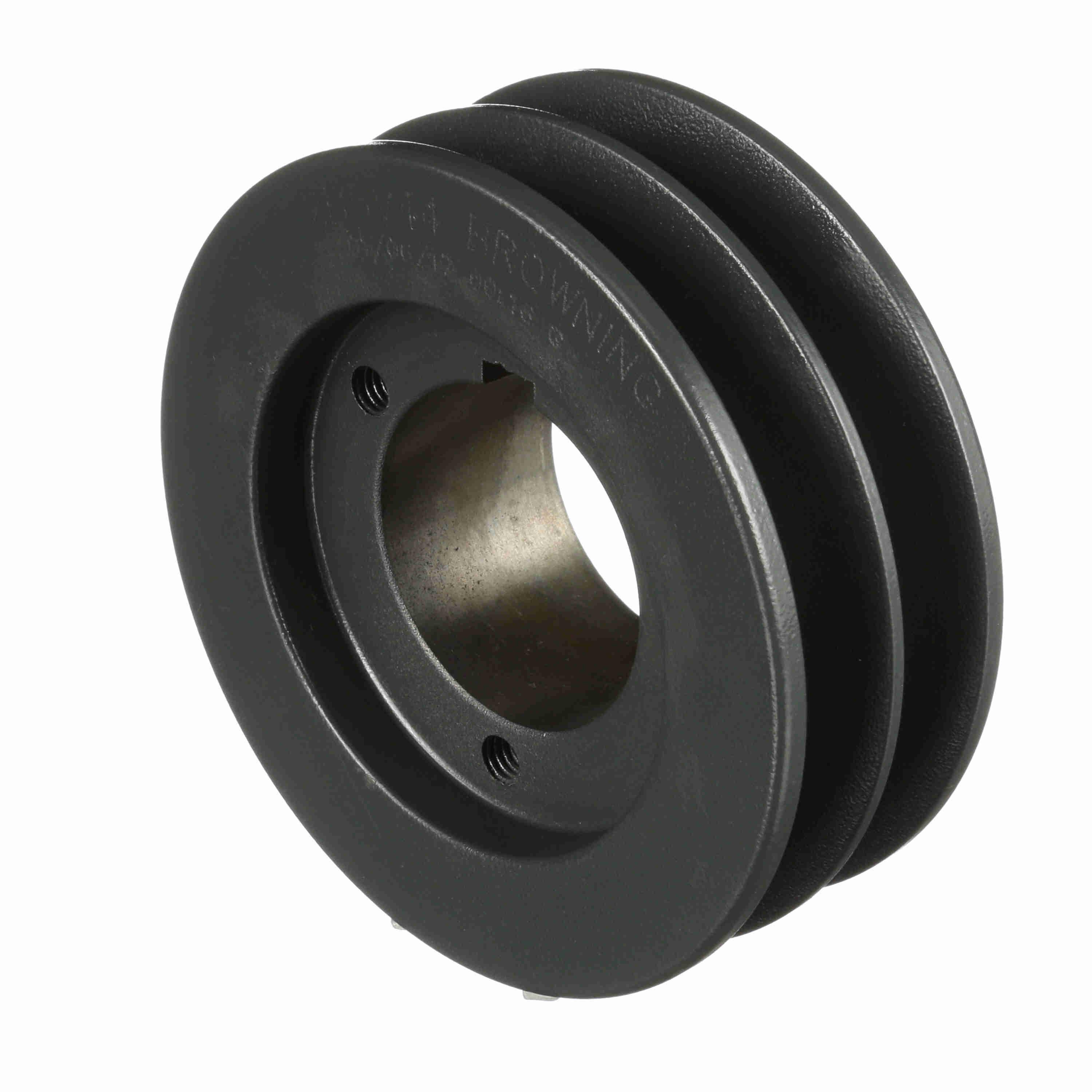

BROWNING 3695228 2B5V44 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Item: BA2CCCModel: 3695228Cross Ref: 2B5V44
7 In Stock
Ships within 2 days via
€158.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1 23/32" |
| Hub Projection | 7/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 1/2" |
| Min. Pitch Dia. | 4" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 4 17/25" |
| Overall Length | 2 9/64" |
| Pitch Dia. (5v) | 4 1/2" |
| Pitch Dia. (a) | 4 1/5" |
| Pitch Dia. (b) | 4.7" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 1.86 Kg |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 11.89 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 11.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3694098 | 15 17/25" | 1/2" to 1 15/16" | 2 35/64" | Arm Type 4 | Split Taper | Cast Iron | 1 23/32" | €485.09 | |
 |
3693892 | 5 2/25" | 1/2" to 1 15/16" | 2 35/64" | Type 3 | Split Taper | Cast Iron | 1 23/32" | €176.15 | |
 |
3693884 | 4 22/25" | 1/2" to 1 15/16" | 2 35/64" | Type 3 | Split Taper | Cast Iron | 1 23/32" | €169.95 | |
 |
3693959 | 6 7/25" | 1/2" to 1 15/16" | 2 35/64" | Type 3 | Split Taper | Cast Iron | 1 23/32" | €213.36 | |
 |
3693918 | 5 12/25" | 1/2" to 1 15/16" | 2 35/64" | Type 3 | Split Taper | Cast Iron | 1 23/32" | €188.55 | |
 |
3694072 | 12 17/25" | 1/2" to 1 15/16" | 2 35/64" | Arm Type 4 | Split Taper | Cast Iron | 1 23/32" | €304.39 | |
 |
3694023 | 8 7/25" | 1/2" to 1 15/16" | 2 35/64" | Arm Type 4 | Split Taper | Cast Iron | 1 23/32" | €274.55 |
