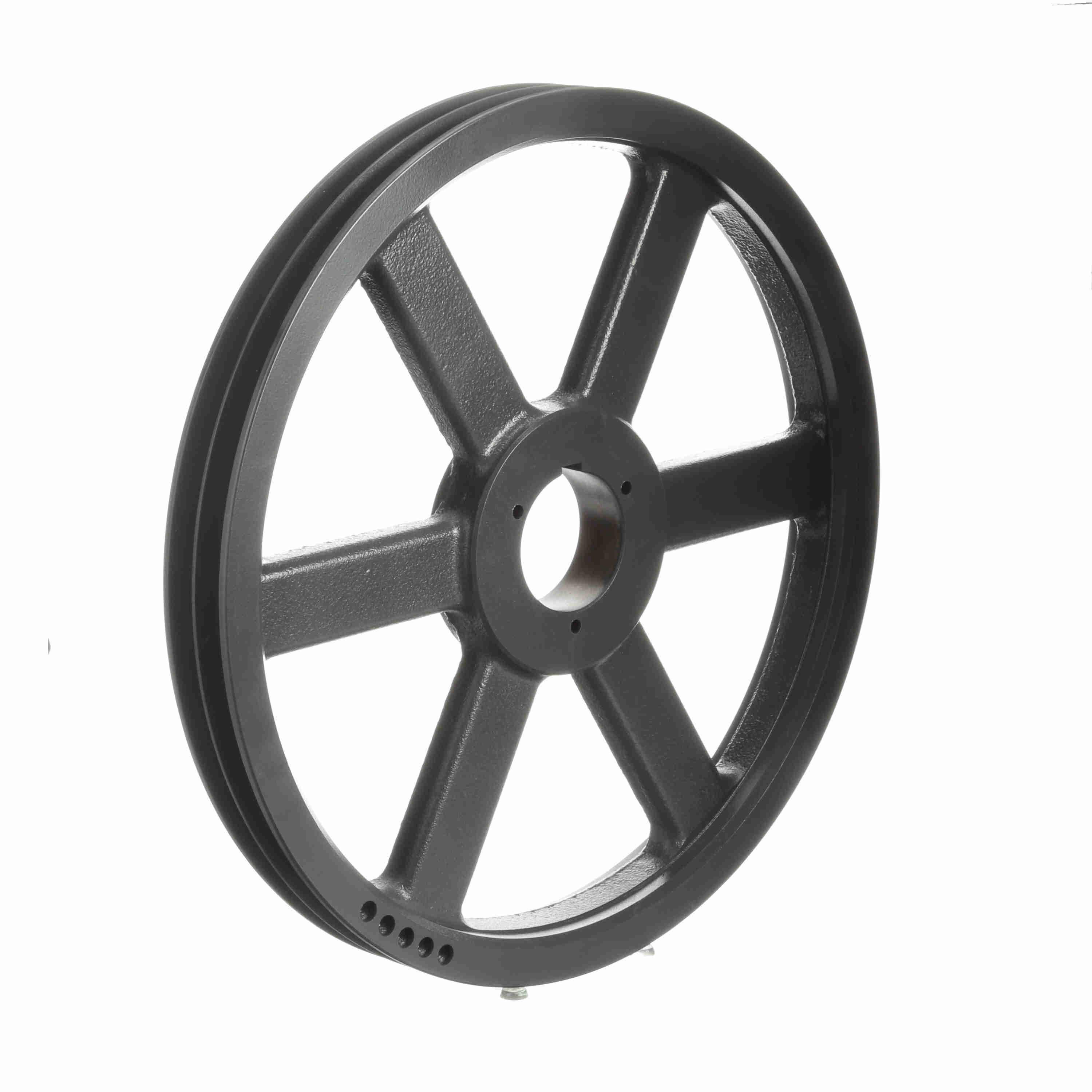

BROWNING 3694155 2B5V278 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, 28.08 in OD, 1/2 to 1-15/16 in Bore Dia, 27.9 in 5V/27-1/2 in A/28.1 in B Pitch Dia, B Bushing Type
28 2/25"
Get it by Friday, Aug 14
€1,325.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 1 15/16" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1/2" to 2 7/16" |
| Bushing Type | B |
| Face Width | 1 23/32" |
| Hub Projection | 5/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 27.9" |
| Min. Pitch Dia. | 27.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 28 2/25" |
| Overall Length | 2 35/64" |
| Pitch Dia. | 27 1/2" |
| Pitch Dia. (5v) | 27.9" |
| Pitch Dia. (b) | 28.1" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 4 |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 71.32 |
| Ship length (cm) | 6.48 |
| Ship width (cm) | 71.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Type | Pitch Dia. (b) | Pitch Dia. (5v) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3694098 | 15 1/5" | 1/2" to 1 15/16" | 15 1/2" | 15" | Arm Type 4 | 15.7" | 15 1/2" | B | €485.09 | |
 |
3693892 | 4 3/5" | 1/2" to 1 15/16" | 4.9" | 4 2/5" | Type 3 | 5.1" | 4.9" | B | €176.15 | |
 |
3693884 | 4 2/5" | 1/2" to 1 15/16" | 4.7" | 4 1/5" | Type 3 | 4.9" | 4.7" | B | €169.95 | |
 |
3693959 | 5 4/5" | 1/2" to 1 15/16" | 6.1" | 5 3/5" | Type 3 | 6.3" | 6.1" | B | €213.36 | |
 |
3693918 | 5" | 1/2" to 1 15/16" | 5.3" | 4 4/5" | Type 3 | 5 1/2" | 5.3" | B | €188.55 | |
 |
3694072 | 12 1/5" | 1/2" to 1 15/16" | 12 1/2" | 12" | Arm Type 4 | 12.7" | 12 1/2" | B | €304.39 | |
 |
3694023 | 7 4/5" | 1/2" to 1 15/16" | 8.1" | 7 3/5" | Arm Type 4 | 8.3" | 8.1" | B | €274.55 |
