BROWNING 3514312 28H300SD Gearbelt Pulley, Bushed Bore, Steel
Item: AL4TZCModel: 3514312Cross Ref: 28H300SD
7 In Stock
Ships within 2 days via
€915.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SD |
| Face Width | 3 3/8" |
| Flange | Yes |
| Flange Dia. | 4 11/16" |
| For Belt Width | 3" |
| For Use With | 3 Inch Width Type H300 Belt |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 28 |
| Other Features | Heavy, QD Bushing, Type D1F |
| Outside Dia. | 4.402" |
| Overall Length | 3.48125" |
| Pitch Dia. | 4.456" |
| Style | Solid Style |
| System Of Measurement | Imperial |
| Type | Solid Type DF |
| Weight | 3.211 Kg |
Shipping Info:
| Ship weight (kg) | 3.19 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 8.84 |
| Ship width (cm) | 11.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Flange Dia. | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

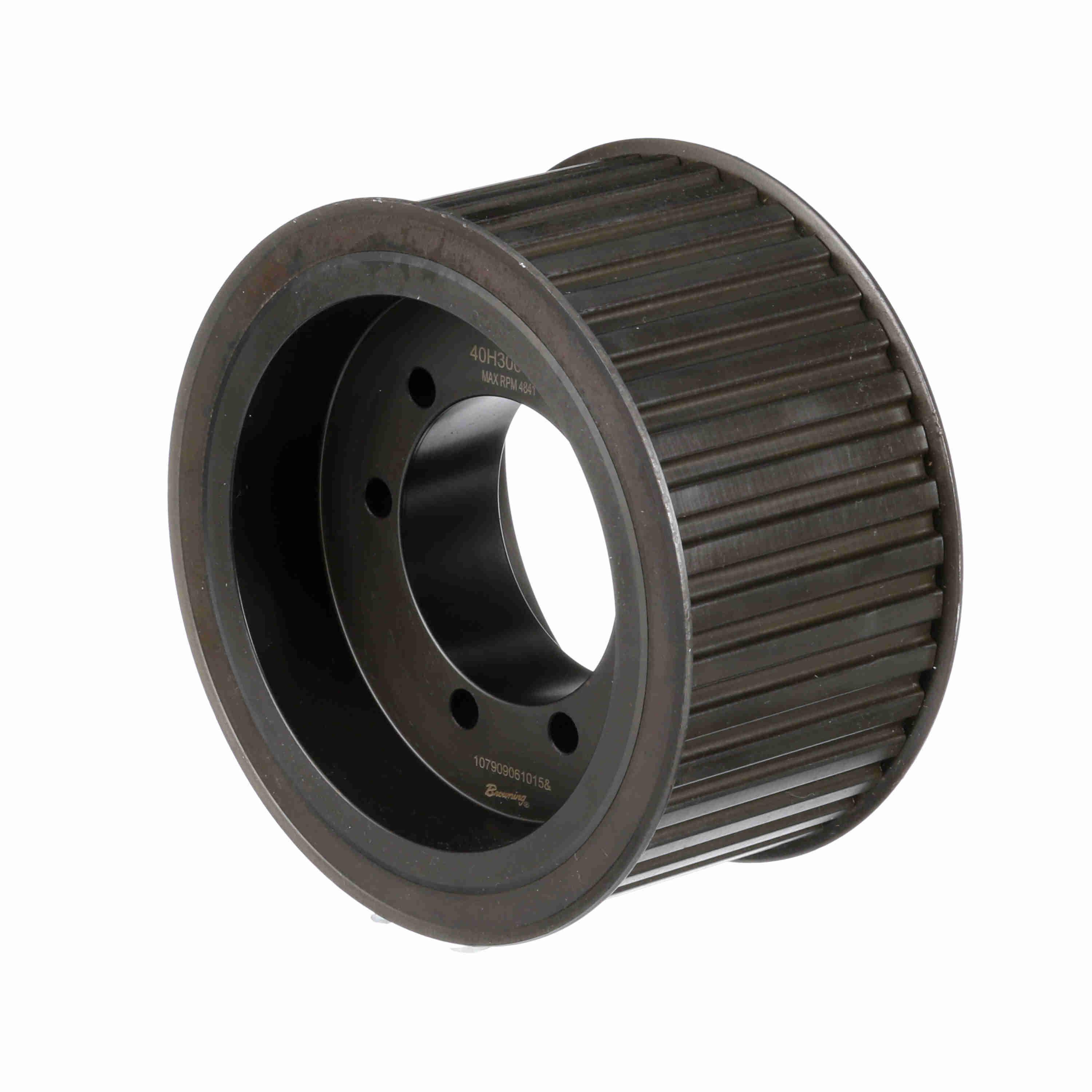

3514353 | 40 | 6.366" | 6.312" | 1/2" to 2 5/8" | Type AF Solid | 6 9/16" | QD | - | €543.84 | |
 |

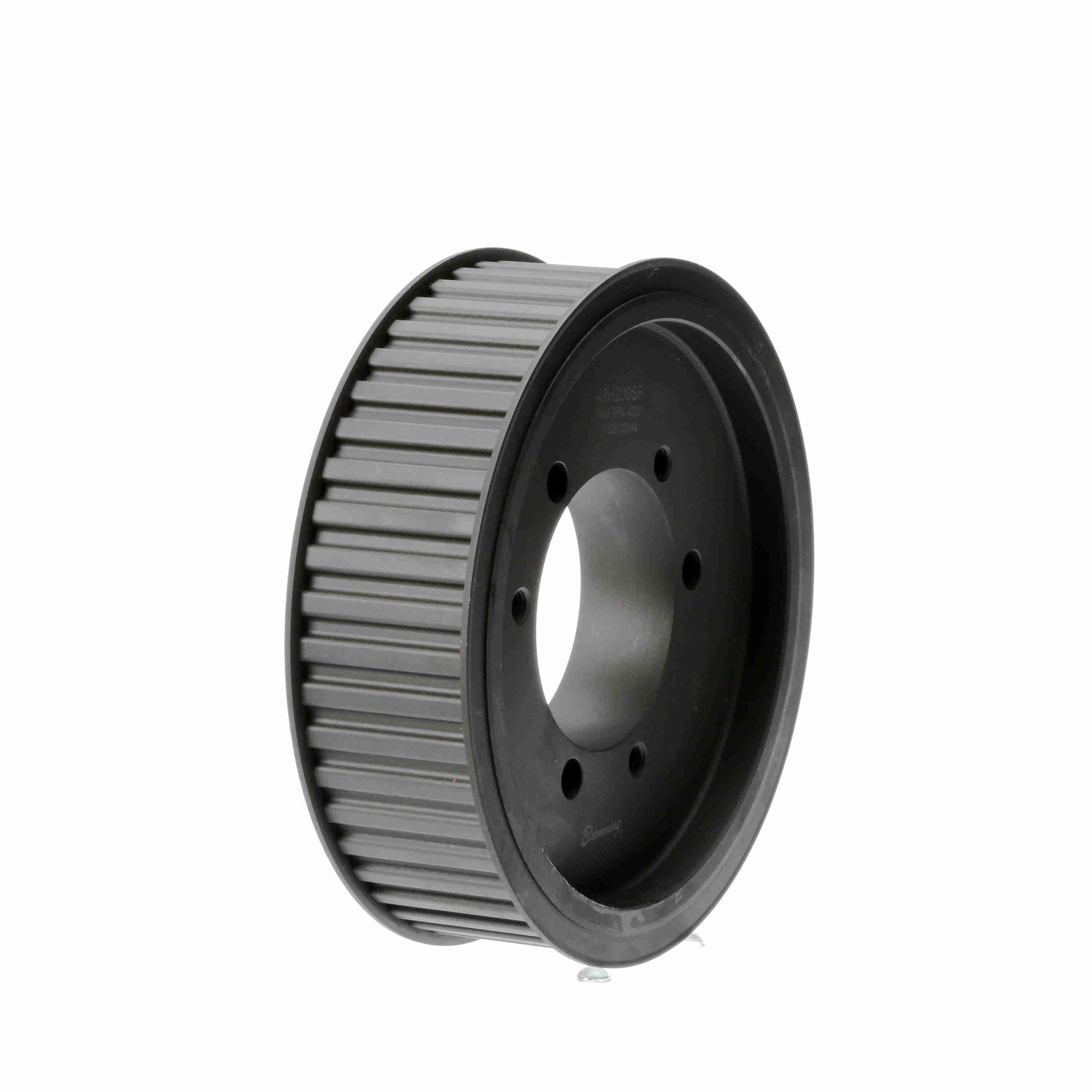

3514379 | 48 | 7.639" | 7.585" | 1/2" to 2 15/16" | Type AF Solid | 7 7/8" | QD | Cast Iron | €1,576.31 | |
 |

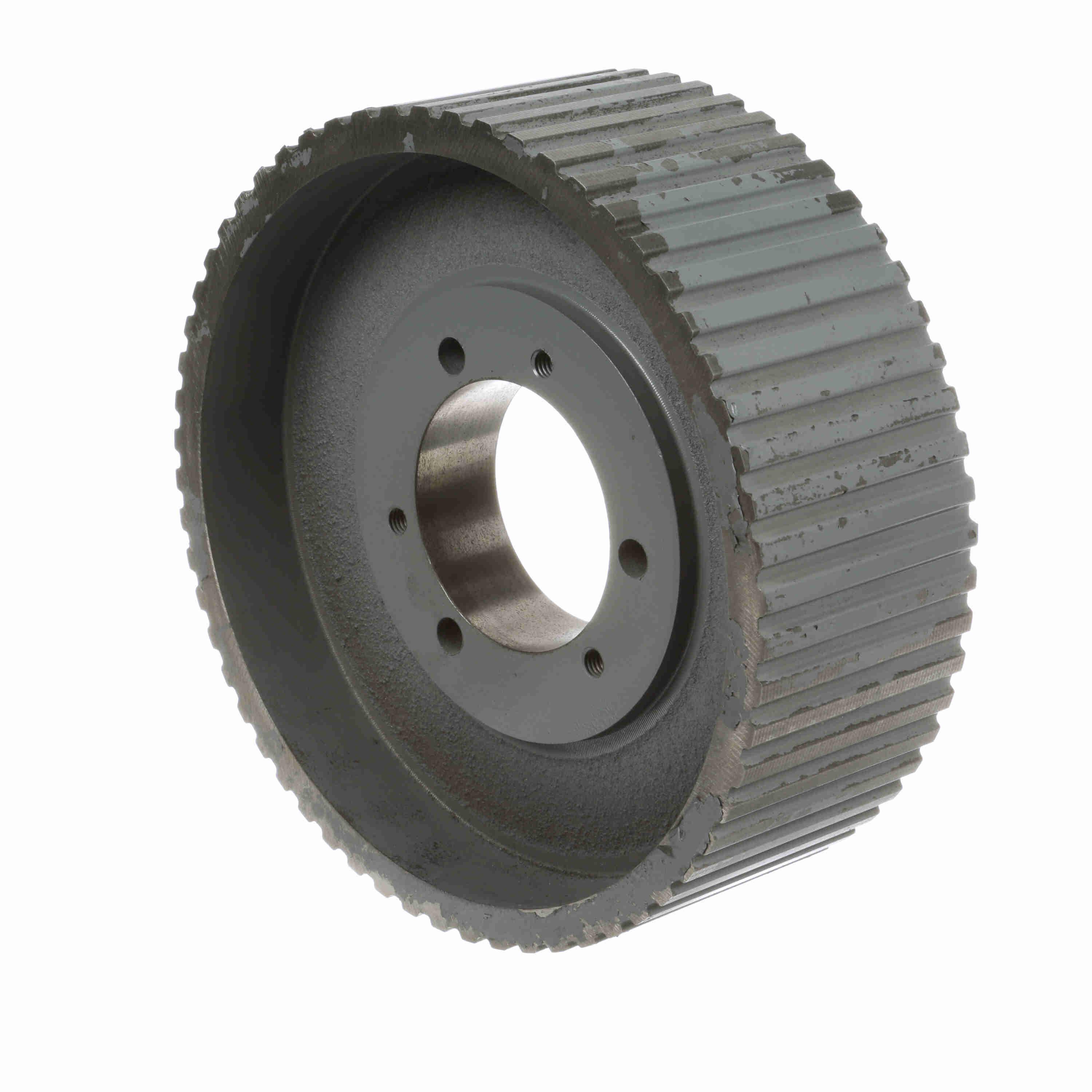

3514387 | 60 | 9.549" | 9.495" | 1/2" to 2 15/16" | Type A Solid | - | QD | - | €752.71 | |
 |

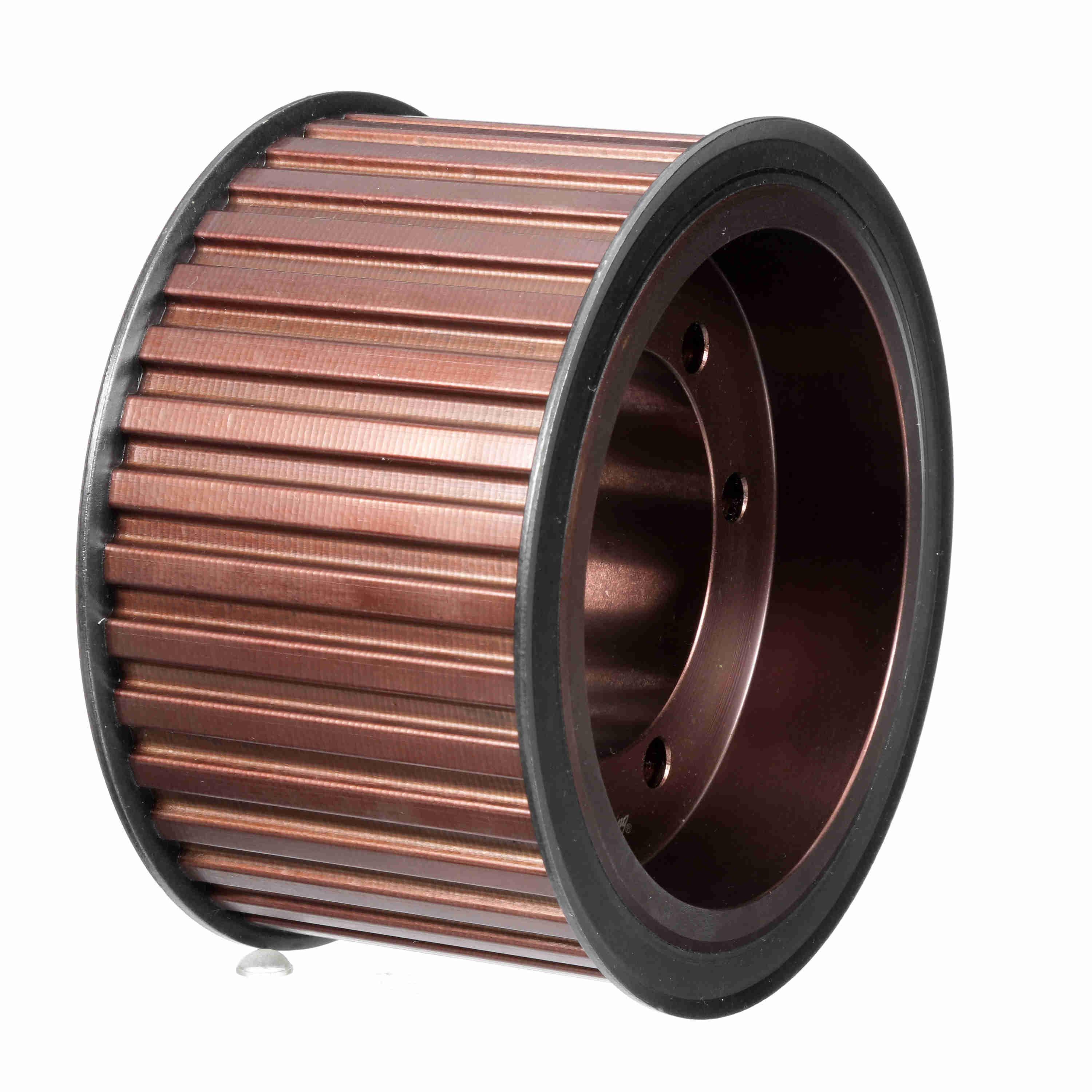

3514346 | 36 | 5.73" | 5.676" | 1/2" to 2 5/8" | Type AF Solid | 6" | QD | - | €633.09 | |
 |

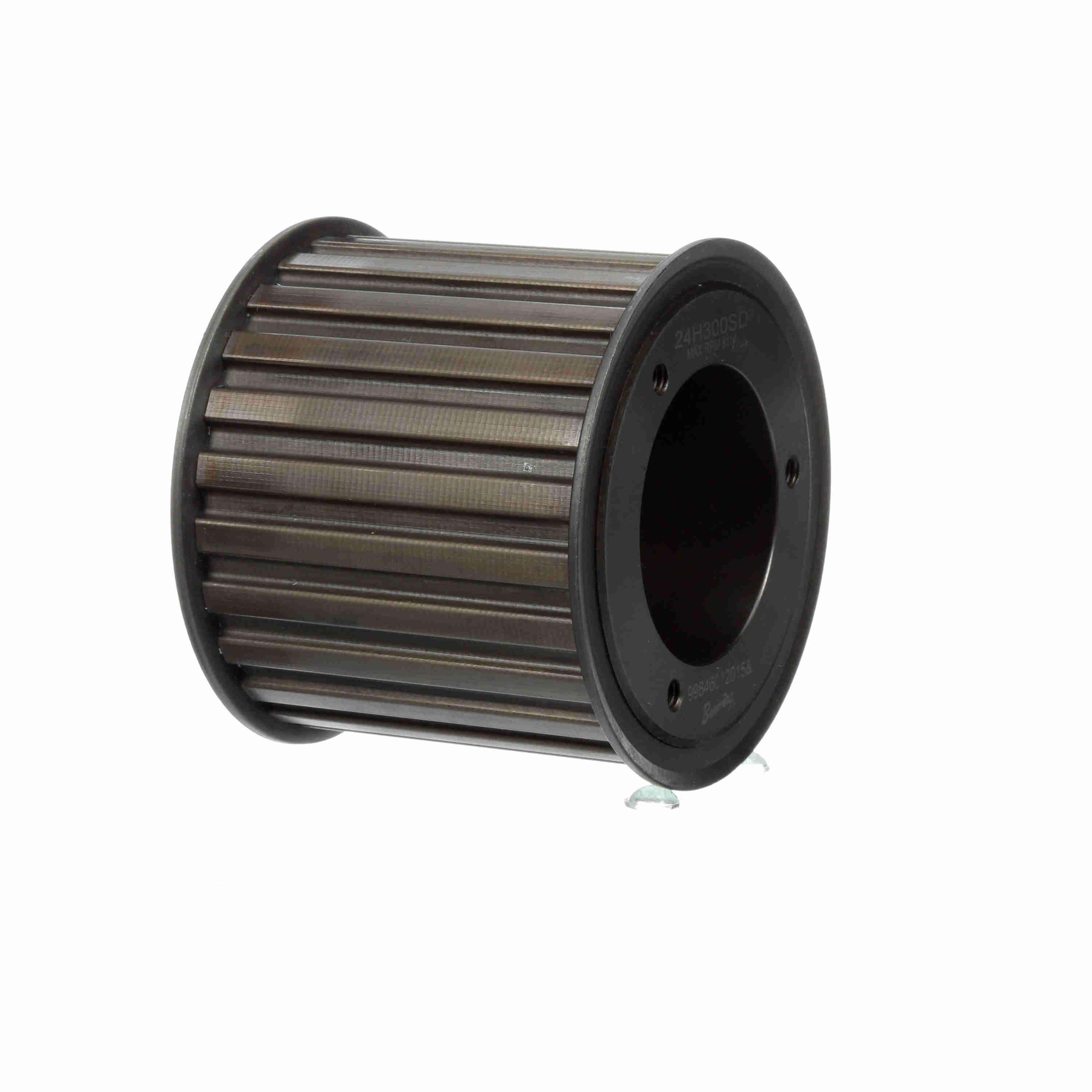

3514296 | 24 | 3.82" | 3.766" | 1/2" to 2" | Solid Type EF | 4 1/16" | QD | - | €532.15 | |
 |

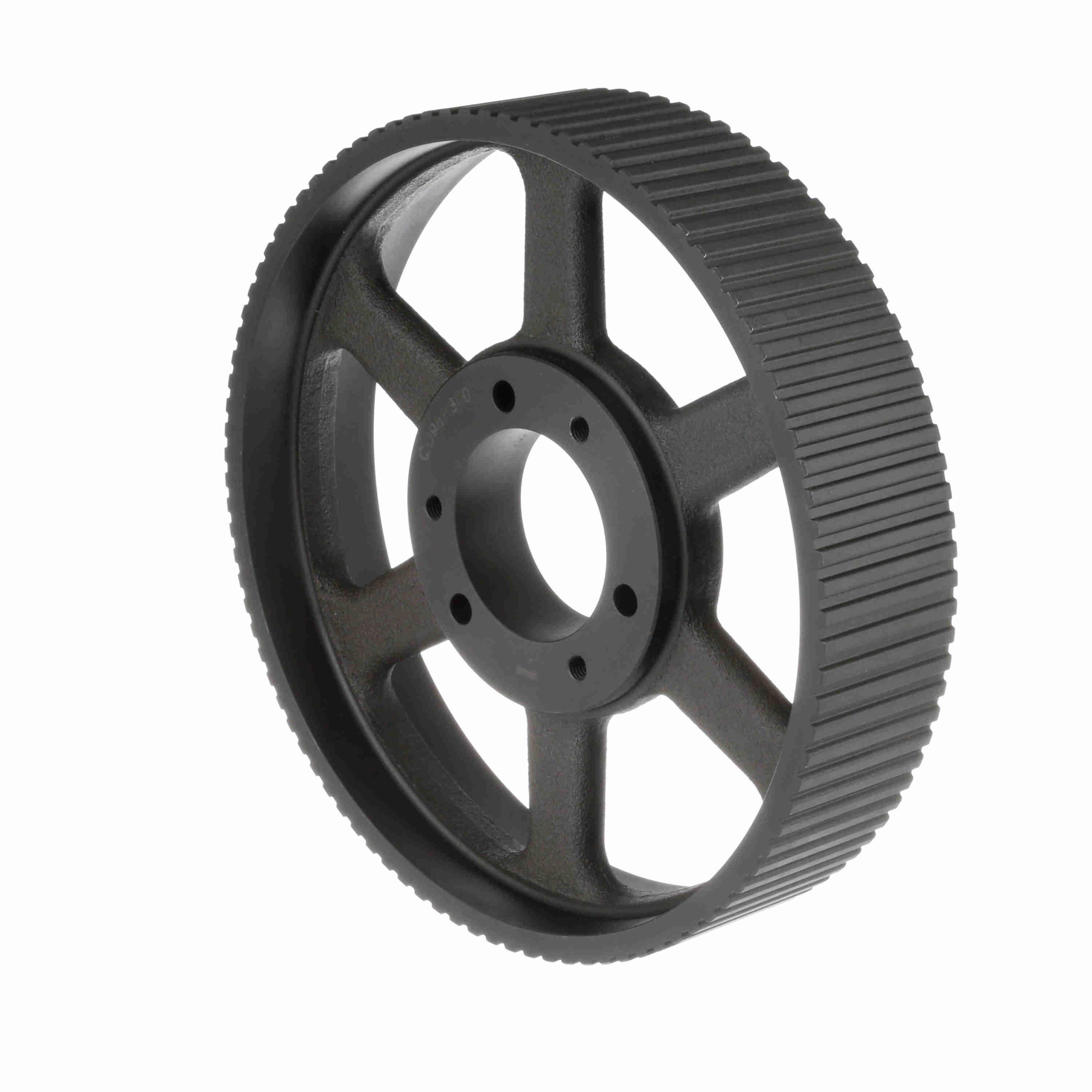

3514411 | 96 | 15.279" | 15.225" | 7/8" to 3 1/2" | Type D Solid | - | QD | Cast Iron | €1,462.00 | |
 |

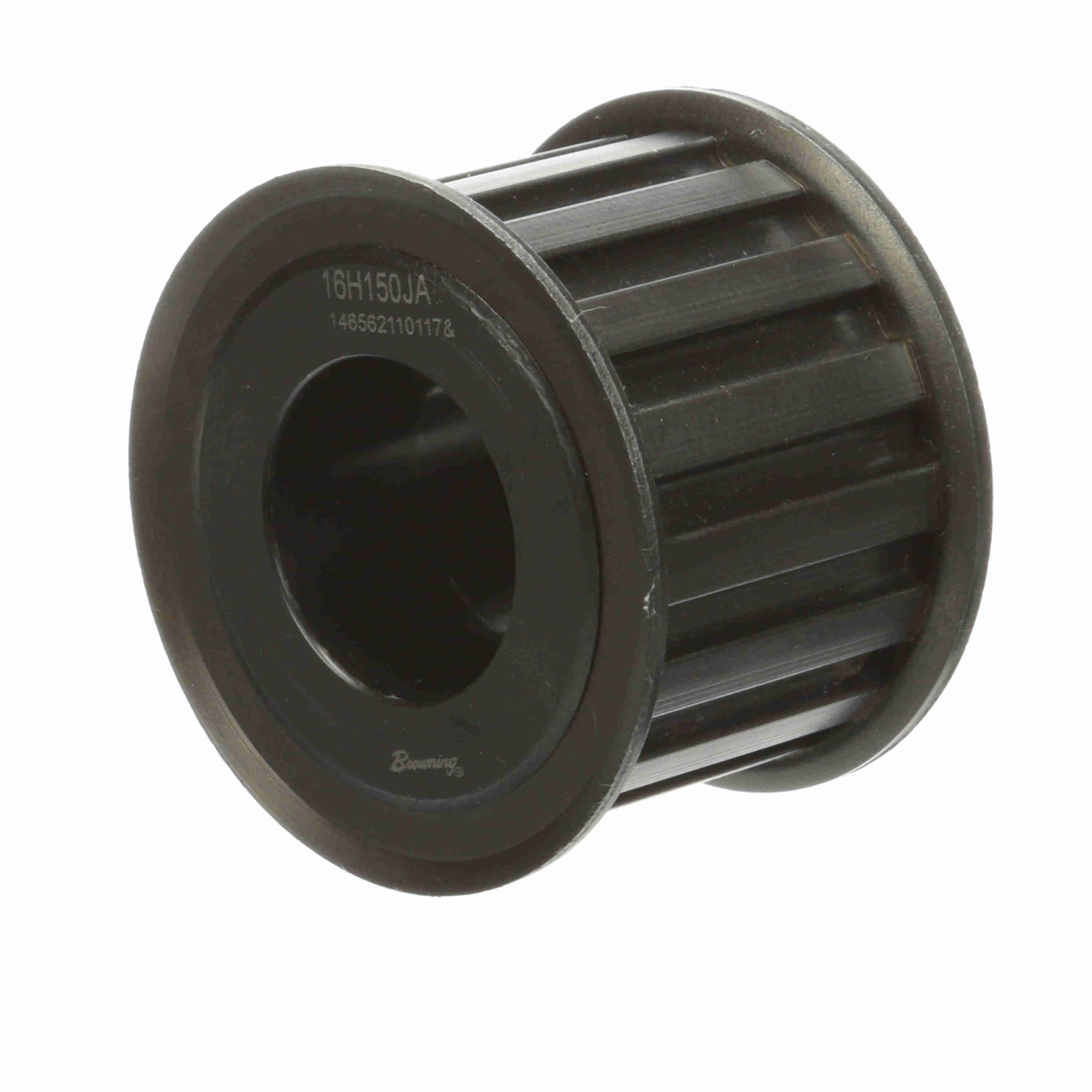

3514288 | 22 | 3.501" | 3.447" | 1/2" to 2" | Solid Type EF | 3 3/4" | QD | - | €512.07 |
