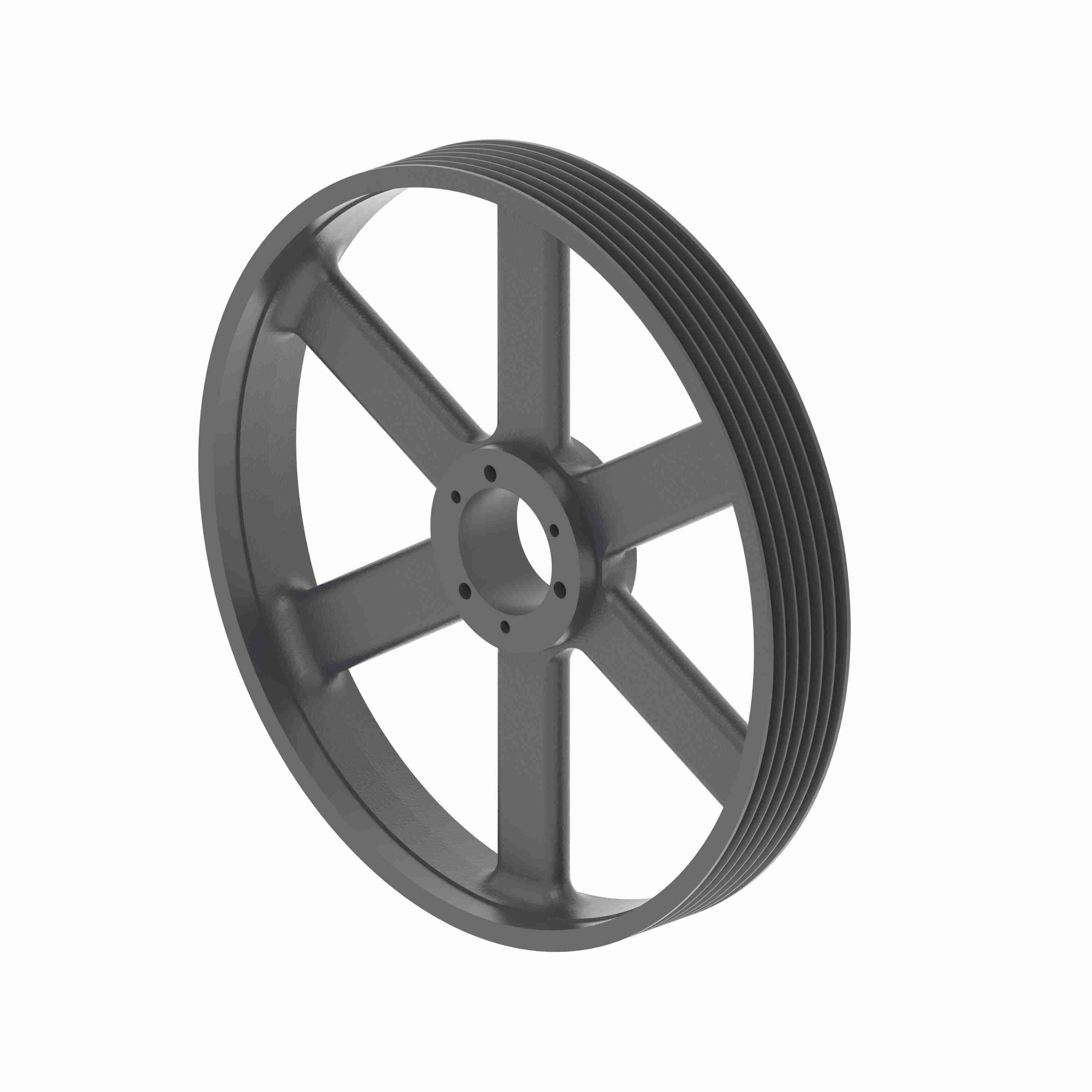

BROWNING 3063500 65V3150J V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron, 31-1/2 in OD, 1-1/2 to 4-1/2 in Bore Dia, 31.4 in Pitch Dia, J Bushing Type
Get it by Friday, Aug 14
€2,622.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1 1/2" to 4 1/2" |
| Bore Type | QD |
| Bushing Type | J |
| Face Width | 4 7/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 31 2/5" |
| Min. Pitch Dia. | 31 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 31 1/2" |
| Pitch Dia. | 31 2/5" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type C Arm |
Shipping Info:
| Ship weight (kg) | 74.66 |
| Ship height (cm) | 80.01 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 80.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Hub Projection | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3050069 | 5 2/5" | 1/2" to 2" | Type A Solid | 5 2/5" | 5 2/5" | SD | - | Cast Iron | €721.70 | |
 |
3050101 | 6 1/5" | 1/2" to 2 5/8" | Type A Solid | - | - | SK | - | Cast Iron | €769.64 | |
 |
1066331 | 10 1/5" | 22/25" to 3 1/2" | Type A Web | 10 1/5" | 10 1/5" | E | - | Cast Iron | €658.09 | |
 |
1066414 | 21.1" | 1" to 4" | Type D Arm | - | - | F | 1/32" | Cast Iron | €1,450.42 | |
 |
3063492 | 23 1/2" | 1 1/2" to 4 1/2" | Type C Arm | 23 1/2" | 23 1/2" | J | - | Cast Iron | €1,522.95 | |
 |
3063484 | 18 3/5" | 1" to 4" | Type D Arm | - | - | F | 1/32" | Cast Iron | €1,539.38 | |
 |
1066356 | 11.7" | 22/25" to 3 1/2" | Type A Web | - | - | E | - | Cast Iron | €1,370.16 |
