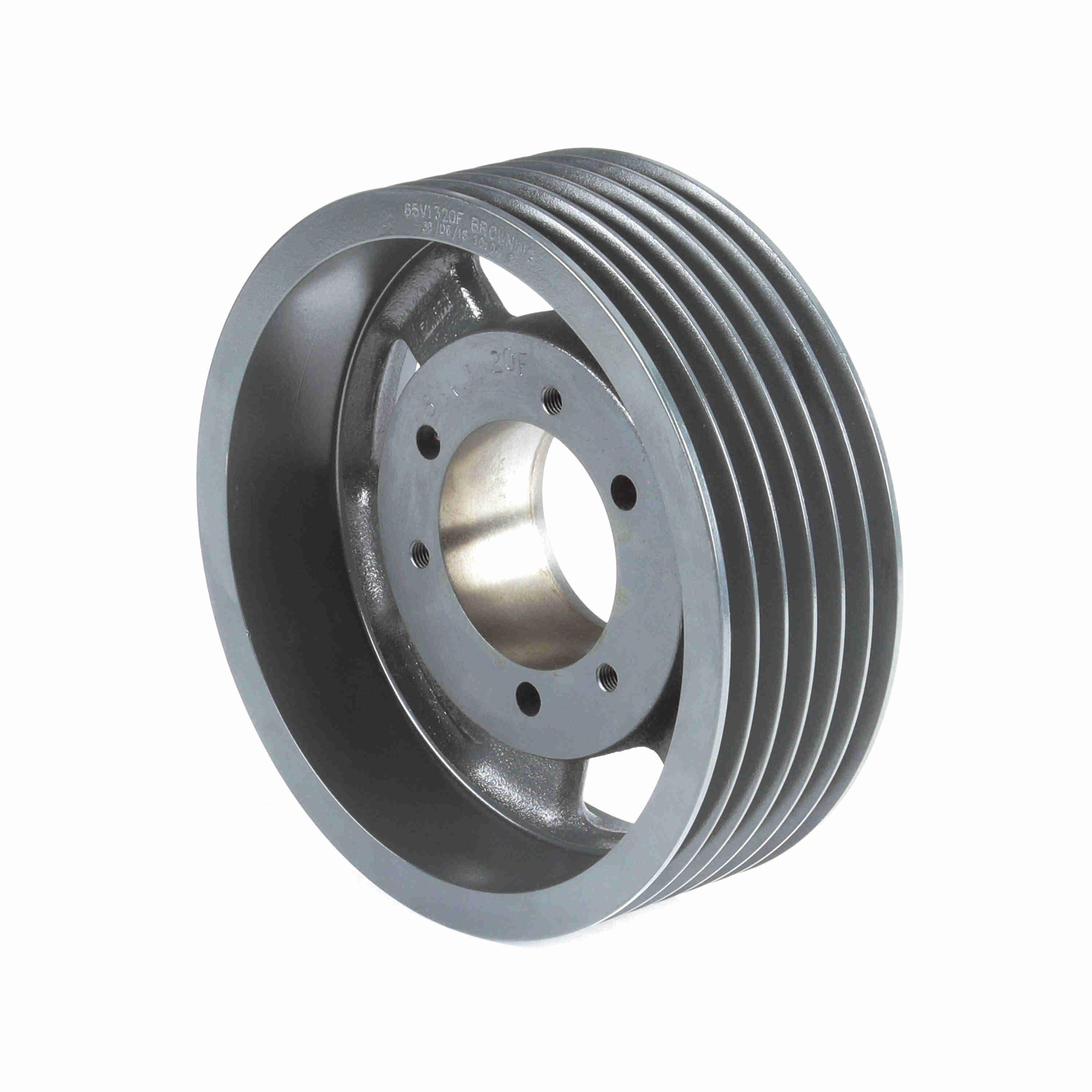

BROWNING 1066372 65V1320F V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
13 1/5"
Get it by Tuesday, Dec 23
€1,055.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1" to 4" |
| Bore Type | QD |
| Bushing Type | F |
| Face Width | 4 7/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 13 1/5" |
| Overall Length | 4 7/16" |
| Pitch Dia. | 13.1" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type B Arm |
| Weight | 23.998 Kg |
Shipping Info:
| Ship weight (kg) | 23.79 |
| Ship height (cm) | 33.53 |
| Ship length (cm) | 11.28 |
| Ship width (cm) | 33.53 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Type | Overall Length | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
3050069 | 5 1/2" | 1/2" to 2" | Type A Solid | - | QD | Cast Iron | 4 7/16" | €721.70 | |
![]() |
3050101 | 6.3" | 1/2" to 2 5/8" | Type A Solid | - | QD | Cast Iron | 4 7/16" | €769.64 | |
![]() |
1066331 | 10.3" | 22/25" to 3 1/2" | Type A Web | 4 7/16" | QD | Cast Iron | 4 7/16" | €658.09 | |
![]() |
1066414 | 21 1/5" | 1" to 4" | Type D Arm | - | QD | Cast Iron | 4 7/16" | €1,450.42 | |
![]() |
3063492 | 23 3/5" | 1 1/2" to 4 1/2" | Type C Arm | - | QD | Cast Iron | 4 7/16" | €1,522.95 | |
![]() |
3063484 | 18.7" | 1" to 4" | Type D Arm | - | QD | Cast Iron | 4 7/16" | €1,539.38 | |
![]() |
1066356 | 11 4/5" | 22/25" to 3 1/2" | Type A Web | 4 7/16" | QD | Cast Iron | 4 7/16" | €1,370.16 |
