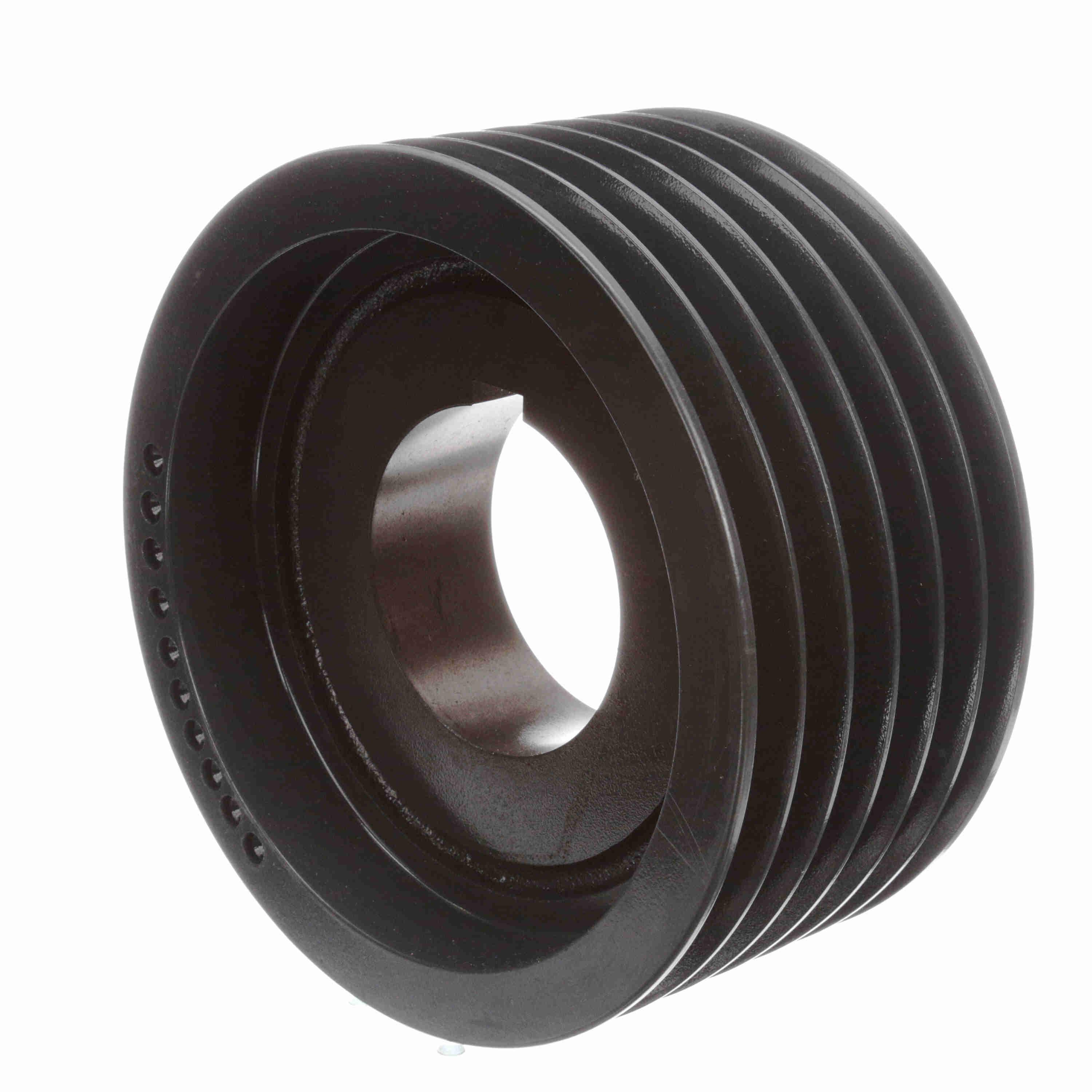

BROWNING 1969476 6B5V94 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
9 17/25"
Get it by Tuesday, Dec 23
€762.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 4 19/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 1/2" |
| Min. Pitch Dia. | 9" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 9 17/25" |
| Overall Length | 4 19/32" |
| Pitch Dia. (a) | 9 1/5" |
| Pitch Dia. (b) | 9.7" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 6 Web |
| Weight | 15.727 Kg |
Shipping Info:
| Ship weight (kg) | 15.59 |
| Ship height (cm) | 24.59 |
| Ship length (cm) | 11.66 |
| Ship width (cm) | 24.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1969286 | Split Taper | 4 12/25" | 3/4" to 1 3/4" | 5 15/32" | Type 5 | Cast Iron | 4 19/32" | €459.60 | |
|
1969302 | Split Taper | 4 22/25" | 3/4" to 1 3/4" | 5 15/32" | Type 5 | Cast Iron | 4 19/32" | €792.32 | |
|
1969310 | Split Taper | 5 2/25" | 3/4" to 1 3/4" | 5 15/32" | Type 5 | Cast Iron | 4 19/32" | €748.23 | |
|
1969328 | Split Taper | 5 7/25" | 1" to 2 5/8" | 5 5/8" | Type 5 | Cast Iron | 4 19/32" | €819.79 | |
 |
1969336 | Split Taper | 5 12/25" | 1" to 2 5/8" | 5 5/8" | Type 5 | Cast Iron | 4 19/32" | €601.92 | |
 |
1969344 | Split Taper | 5 17/25" | 1" to 2 5/8" | 5 5/8" | Type 5 | Cast Iron | 4 19/32" | €829.51 | |
 |
1969351 | Split Taper | 5 22/25" | 1" to 2 5/8" | 5 5/8" | Type 3 | Cast Iron | 4 19/32" | €397.32 |
