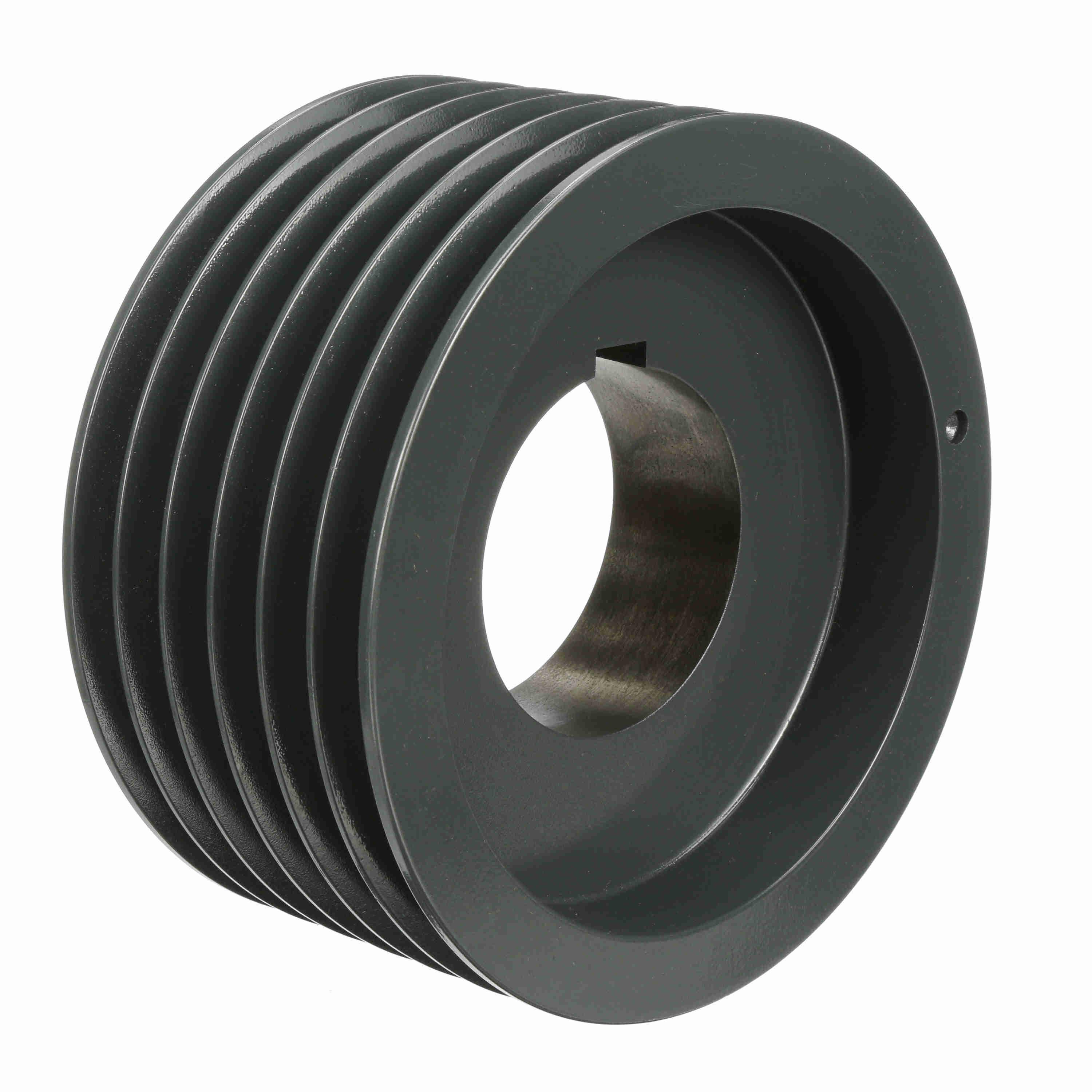

BROWNING 1969468 6B5V90 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron, 9.28 in OD, 1.13 to 3.75 in Bore Dia, 8.8 in A/9.3 in B Pitch Dia, R1 Bushing Type
9 7/25"
Get it by Monday, Aug 17
€1,009.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 4 19/32" |
| Material | Cast Iron |
| No. Of Grooves | 6 |
| Outside Dia. | 9 7/25" |
| Overall Length | 4 19/32" |
| Pitch Dia. | 8 4/5" |
| Pitch Dia. (b) | 9.3" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section V-Belt |
| Type | Type 6 Web |
Shipping Info:
| Ship weight (kg) | 14.15 |
| Ship height (cm) | 23.57 |
| Ship length (cm) | 11.66 |
| Ship width (cm) | 23.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bore Type | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1969302 | 4 2/5" | 3/4" to 1 3/4" | Type 5 | 4.7" | 4 1/5" | 4.9" | Split Taper | P2 | €792.32 | |
|
1969310 | 4 3/5" | 3/4" to 1 3/4" | Type 5 | 4.9" | 4 2/5" | 5.1" | Split Taper | P2 | €748.23 | |
|
1969328 | 4 4/5" | 1" to 2 5/8" | Type 5 | 5.1" | 4 3/5" | 5.3" | Split Taper | Q2 | €819.79 | |
 |
1969336 | 5" | 1" to 2 5/8" | Type 5 | - | - | 5 1/2" | Split Taper | Q2 | €601.92 | |
 |
1969344 | 5 1/5" | 1" to 2 5/8" | Type 5 | 5 1/2" | 5" | 5.7" | Split Taper | Q2 | €829.51 | |
 |
1969369 | 5 3/5" | 3/4" to 2 11/16" | Type 3 | - | - | 6.1" | Split Taper | Q1 | €496.38 | |
 |
1969393 | 6 1/5" | 3/4" to 2 11/16" | Type 3 | - | - | 6.7" | Split Taper | Q1 | €551.34 |
