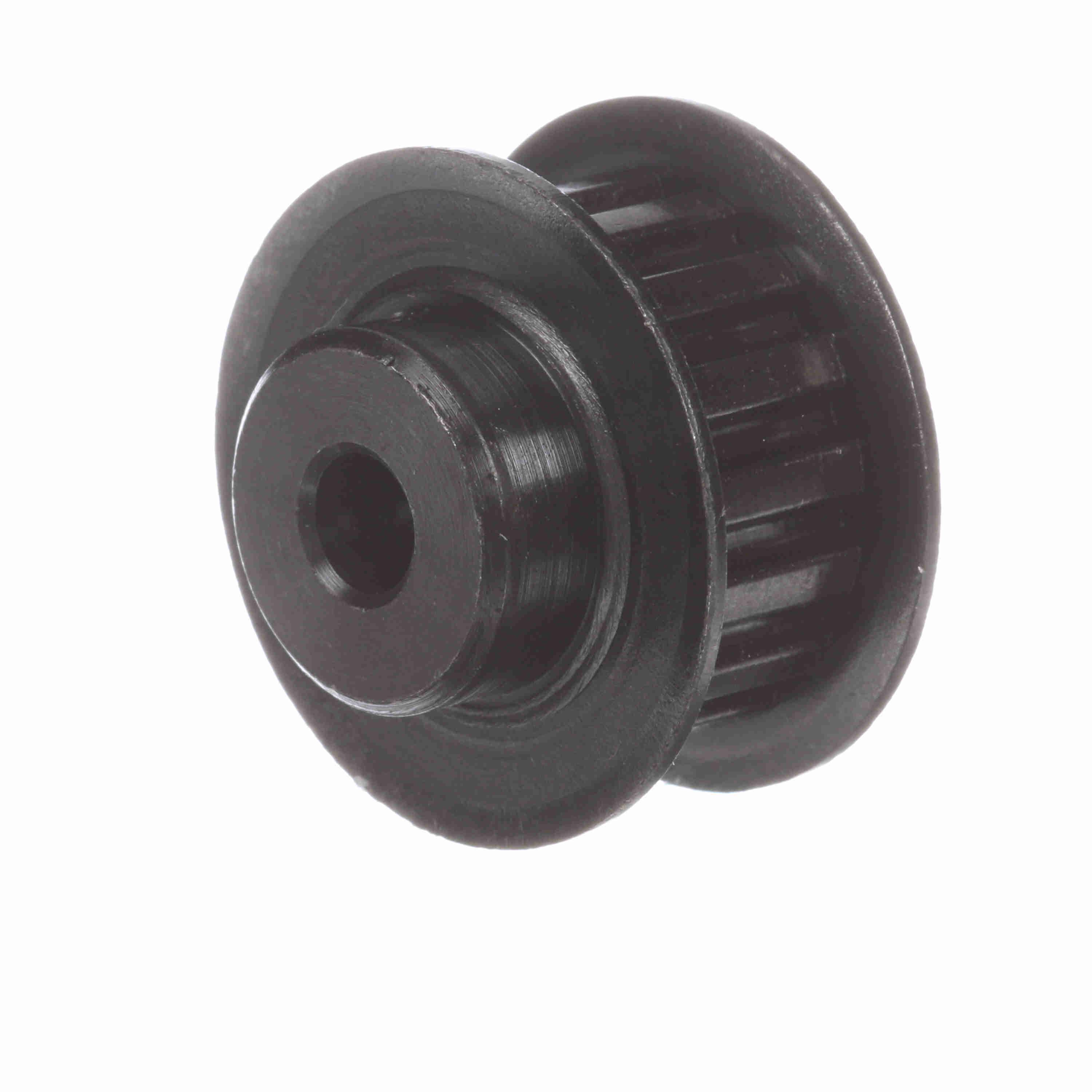

BROWNING 1430750 16XLB037S Gearbelt Pulley, Rough Bore, Steel
Item: AX3RJLModel: 1430750Cross Ref: 16XLB037S
7 In Stock
Ships within 2 days via
€141.77 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/5" |
| Belt Style | XL |
| Bore Dia. | 1/4" to 3/8" |
| Bushing Type | MPB |
| Face Width | 0.563" |
| Flange | Yes |
| Flange Dia. | 1 1/4" |
| For Belt Width | 3/8" |
| For Use With | 3/8 Inch Width Type XL Belt |
| Hub Dia. | 11/16" |
| Hub Projection | 1/4" |
| Keyway | No |
| Material | Steel |
| Max. Bore | 3/8" |
| Min. Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 16 |
| Other Features | Extra Light, Type 2 |
| Outside Dia. | 0.999" |
| Overall Length | 13/16" |
| Pitch Dia. | 1.019" |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 6.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Bore Dia. | Material | Outside Dia. | Type | Hub Dia. | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430701 | 10 | 0.637" | 3/16" | Steel | 0.617" | Type 2 | 7/16" | 1/4" | €102.89 | |
 |
1054949 | 28 | 1.783" | 1/4" to 13/16" | Aluminum | 1.763" | Type 2 | 1 3/16" | 11/32" | €159.76 | |
 |
1054972 | 36 | 2.292" | 5/16" to 1" | Aluminum | 2.272" | Type 2A | 1 1/2" | 7/16" | €271.61 | |
 |
1430826 | 30 | 1.91" | 1/4" to 15/16" | Steel | 1.89" | Type 2 | 1 3/8" | 11/32" | €246.03 | |
 |
1054956 | 30 | 1.91" | 1/4" to 15/16" | Aluminum | 1.89" | Type 2 | 1 3/8" | 11/32" | €130.35 | |
 |
1430792 | 22 | 1.401" | 1/4" to 5/8" | Steel | 1.381" | Type 2 | 1" | 11/32" | €84.62 | |
 |
1054857 | 12 | 0.764" | 3/16" to 1/4" | Aluminum | 0.744" | Type 2 | 1/2" | 1/4" | €115.78 |
