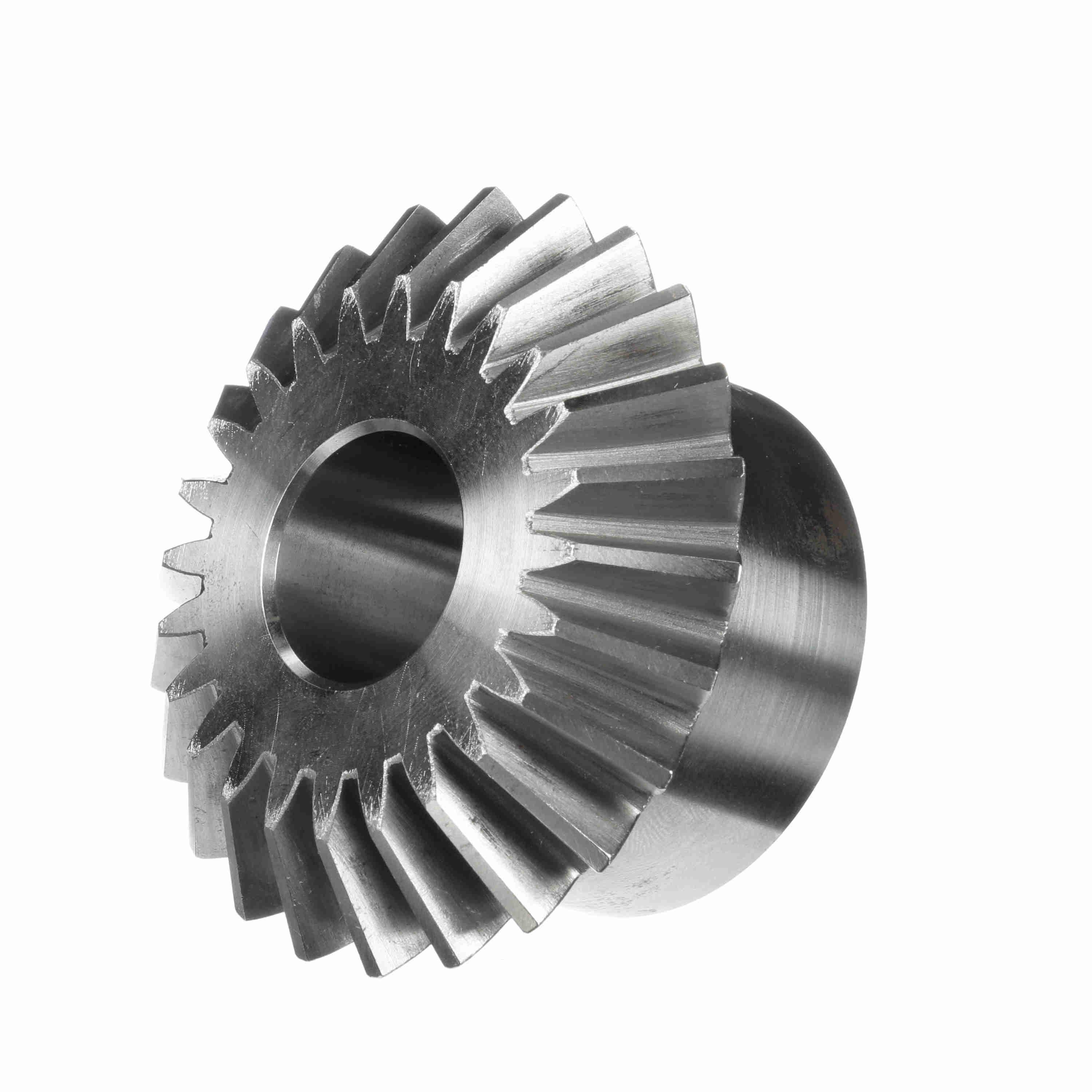

BROWNING 1229319 YSM8B24X 1 1/4 Miter Gear, Plain Bore, 20 Pressure Angle, 8 Pitch, Steel
Item: AZ3LKLModel: 1229319Cross Ref: YSM8B24X 1 1/4
7 In Stock
Ships within 2 days via
€540.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bushing Size | No Bushing |
| Diametral Pitch | 8 DP |
| Face Width | 16/25" |
| Gear Ratio | 1:1 |
| Hardened Teeth | No |
| Hub Dia. | 2 1/2" |
| Hub Projection | 1" |
| Material | Steel |
| Max. Bore | 1 5/8" |
| Min. Bore Dia. | 1 1/4" |
| Minimum Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 24 |
| Other Features | Unhardened Overall, Coniflex Tooth Form |
| Overall Length | 1 49/64" |
| Pitch Dia. | 3" |
| Pressure Angle | 20° |
| Style | Miter Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Straight Tooth |
| Type | Minimum Plain Bore Straight Tooth |
| Weight | 0.889 Kg |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 4.78 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 10.31 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Overall Length | Diametral Pitch | Pressure Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

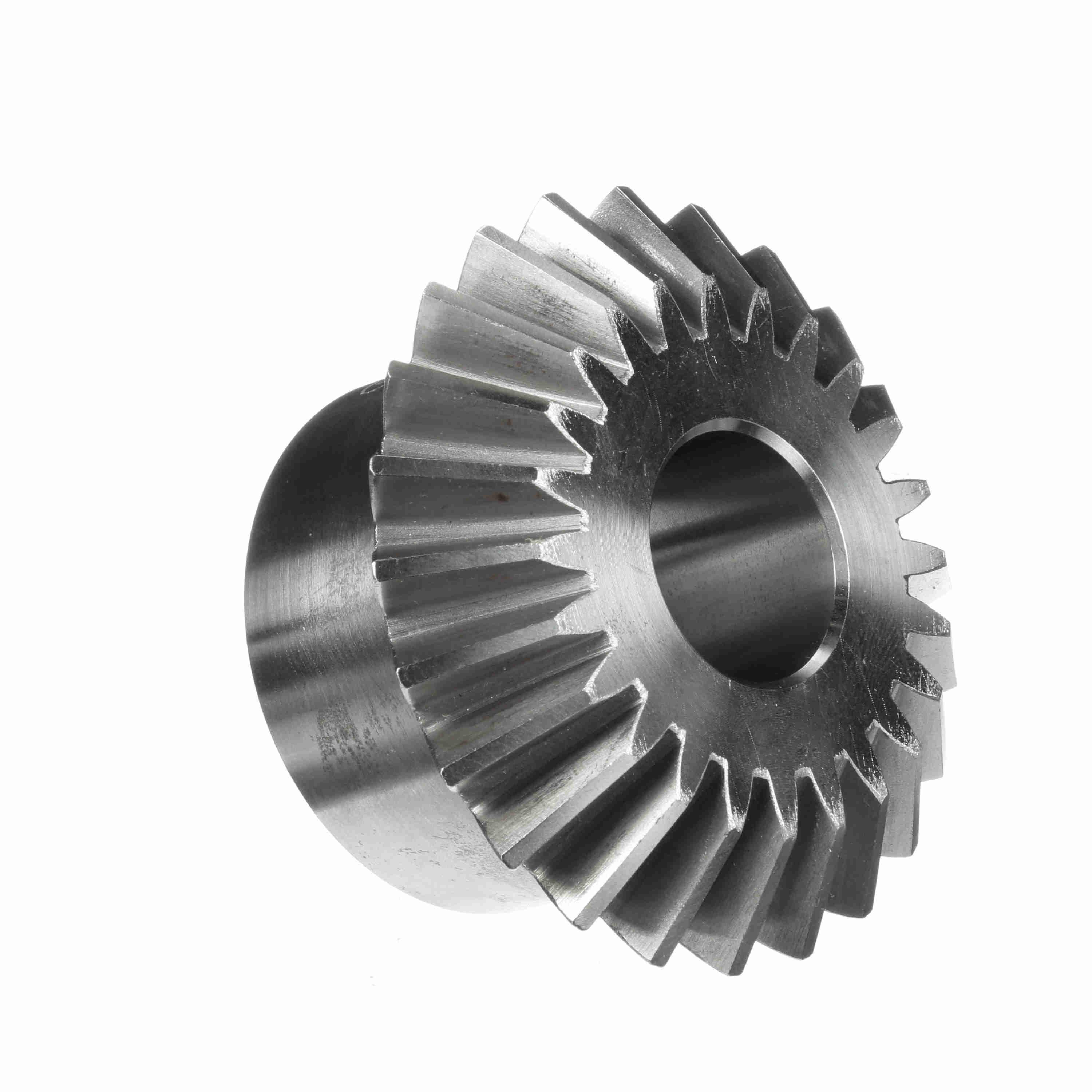

1229301 | 24 | 3" | 16/25" | 2 1/4" | 1 1/16" | 1 49/64" | 8 DP | 20° | €266.99 | |
 |

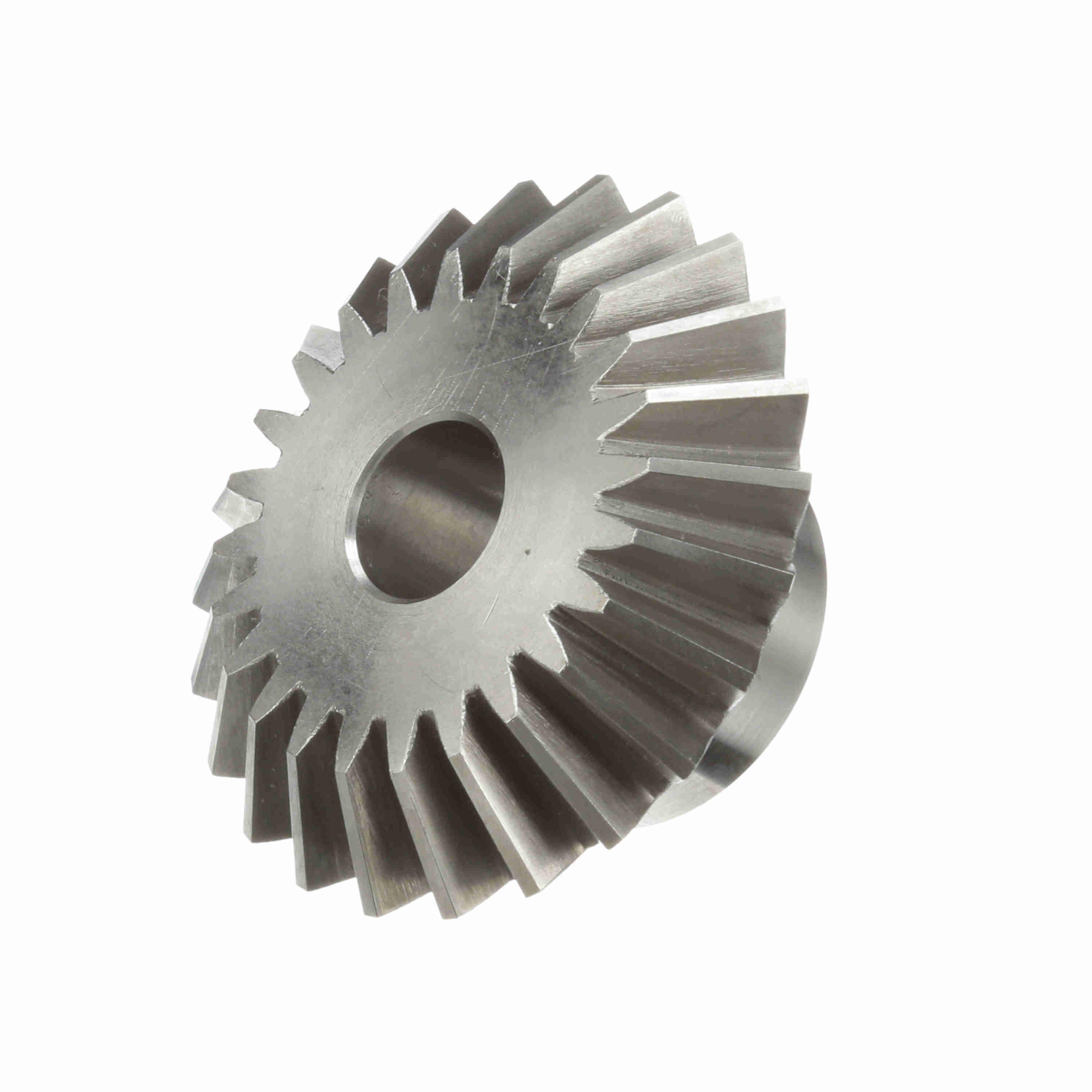

1229293 | 24 | 3" | 16/25" | 1 3/4" | 13/16" | 1 37/64" | 8 DP | 20° | €263.15 | |
 |
1229533 | 24 | 3" | 16/25" | 2 1/4" | 1 1/16" | 1 49/64" | 8 DP | 20° | €278.10 | |
 |

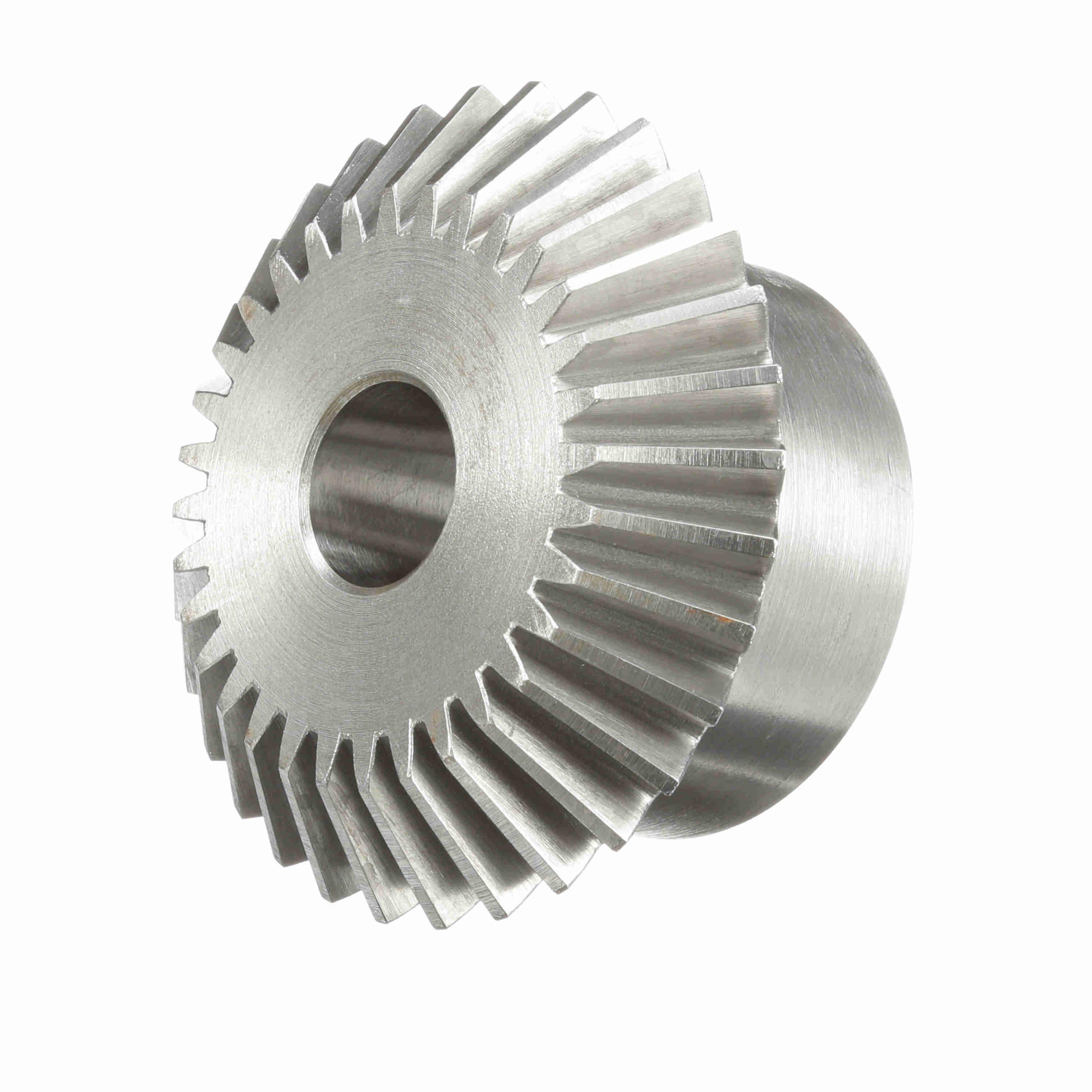

1229335 | 32 | 4" | 21/25" | 3" | 1 1/8" | 2 9/32" | 8 DP | 20° | €548.63 | |
 |
1229327 | 28 | 3 1/2" | 3/4" | - | - | - | 8 DP | 20° | €252.79 | |
 |

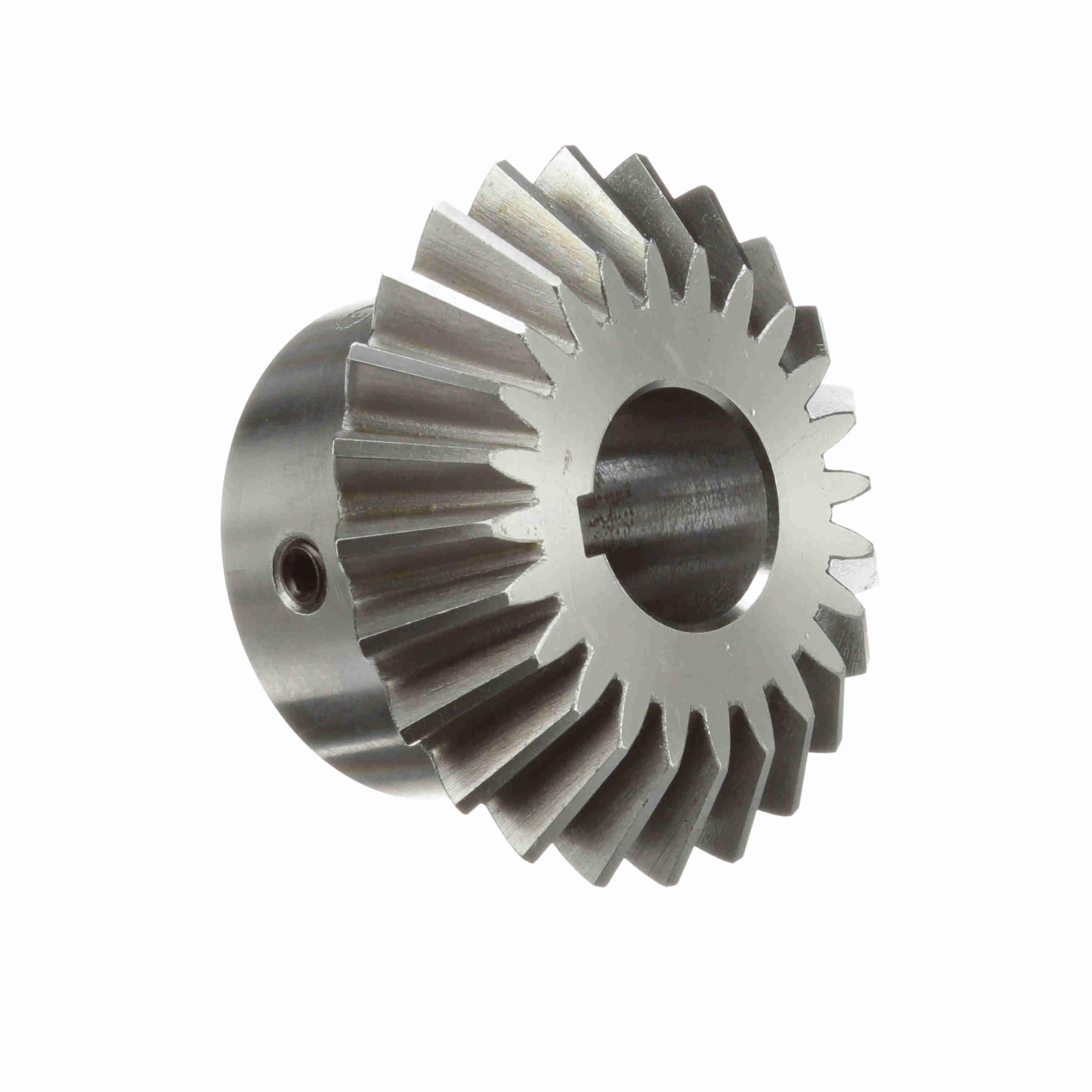

1229558 | 28 | 3 1/2" | 3/4" | 2 1/2" | 1 1/4" | 2 3/32" | 8 DP | 20° | €976.78 | |
|
1229566 | 28 | 3 1/2" | 3/4" | 2 1/2" | 1 1/4" | 2 3/32" | 8 DP | 20° | €1,089.32 |
