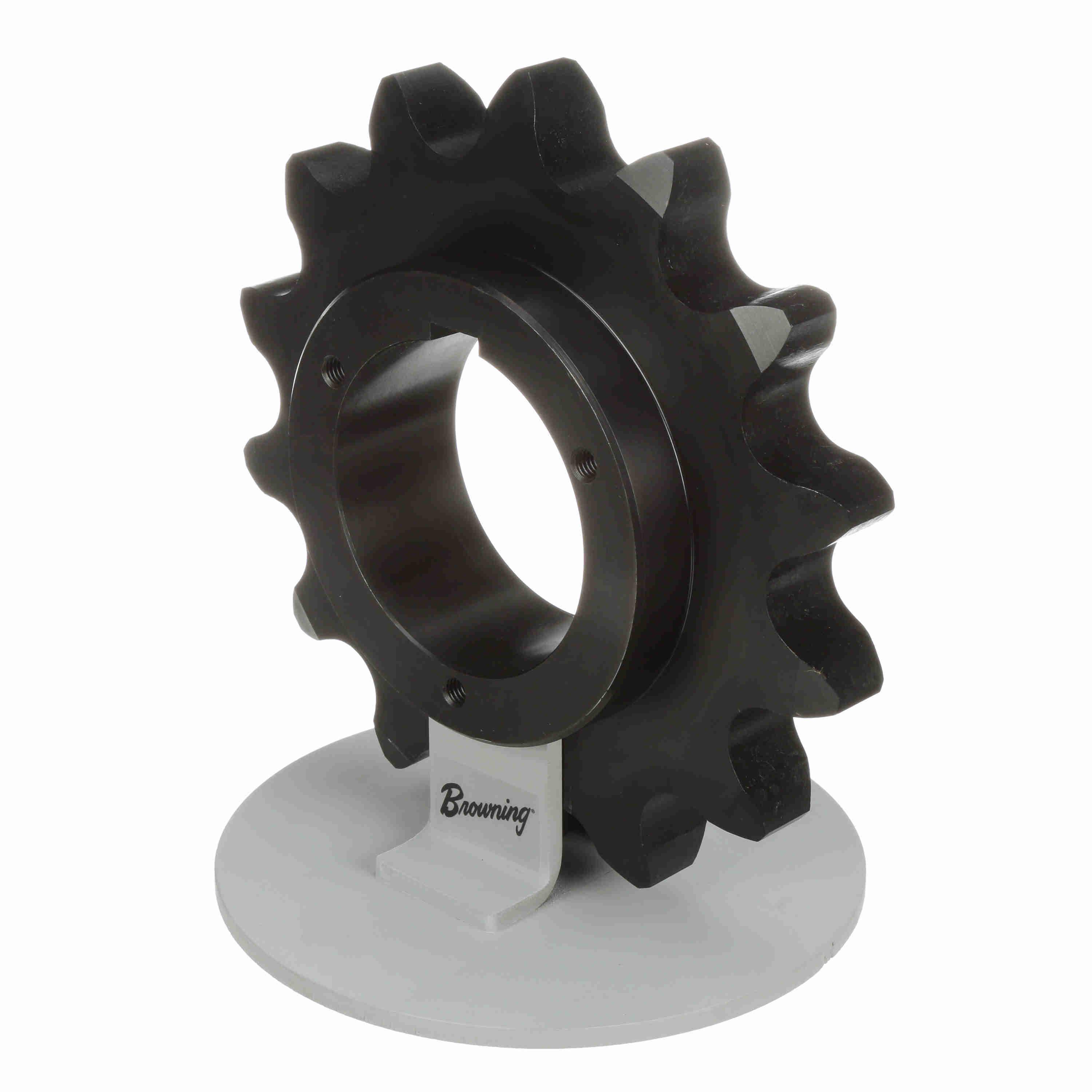

BROWNING 1179035 H160R14 Roller Chain Sprocket, Steel, Single Strand Type 4, 1-1/8 to 3-3/4 in Bore Dia, 9.963 in OD, 160 Chain Size, 14 Teeth, 8.988 in Pitch Dia
14
Get it by Friday, Aug 14
€1,697.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 2" |
| Chain Size | 160 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 5 3/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 3.1406" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 14 |
| Outside Dia. | 9.962" |
| Pitch Dia. | 8.988" |
| Product Datasheet | browning-1179019.pdf |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
Shipping Info:
| Ship weight (kg) | 8.96 |
| Ship height (cm) | 25.3 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 25.3 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Type | Bushing Size | Hub Type | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3358405 | 14.688" | 23 | 5.2194" | 5 3/8" | Single Strand Type 6 | R2 | C Hub Both Sides | 1 3/8" to 3 5/8" | €3,557.56 | |
 |
3358413 | 15.322" | 24 | 5.2194" | 5 3/8" | Single Strand Type 6 | R2 | C Hub Both Sides | 1 3/8" to 3 5/8" | €2,479.22 | |
|
3995883 | 19.134" | 30 | 5.2194" | 5 3/8" | Single Strand Type 6 | - | - | - | €5,666.99 | |
 |
3358454 | 19.134" | 30 | 7.1949" | 6.365" | Single Strand Type 6 | - | - | - | €5,032.11 | |
 |

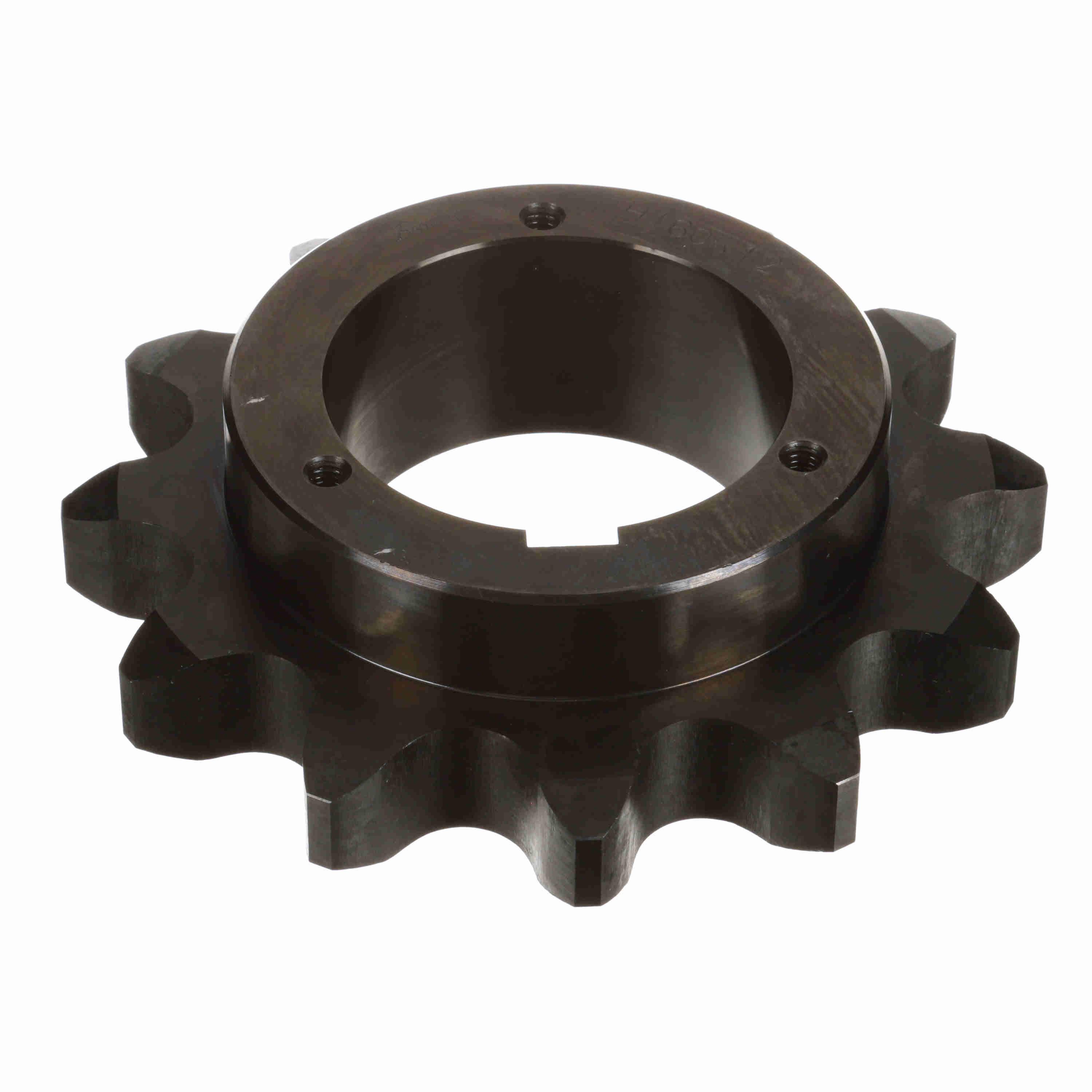

1179019 | 7.728" | 12 | 3.4063" | 5 3/8" | Single Strand Type 4 | R1 | B Hub One Side | 1 1/8" to 3 3/4" | €1,992.18 | |
 |

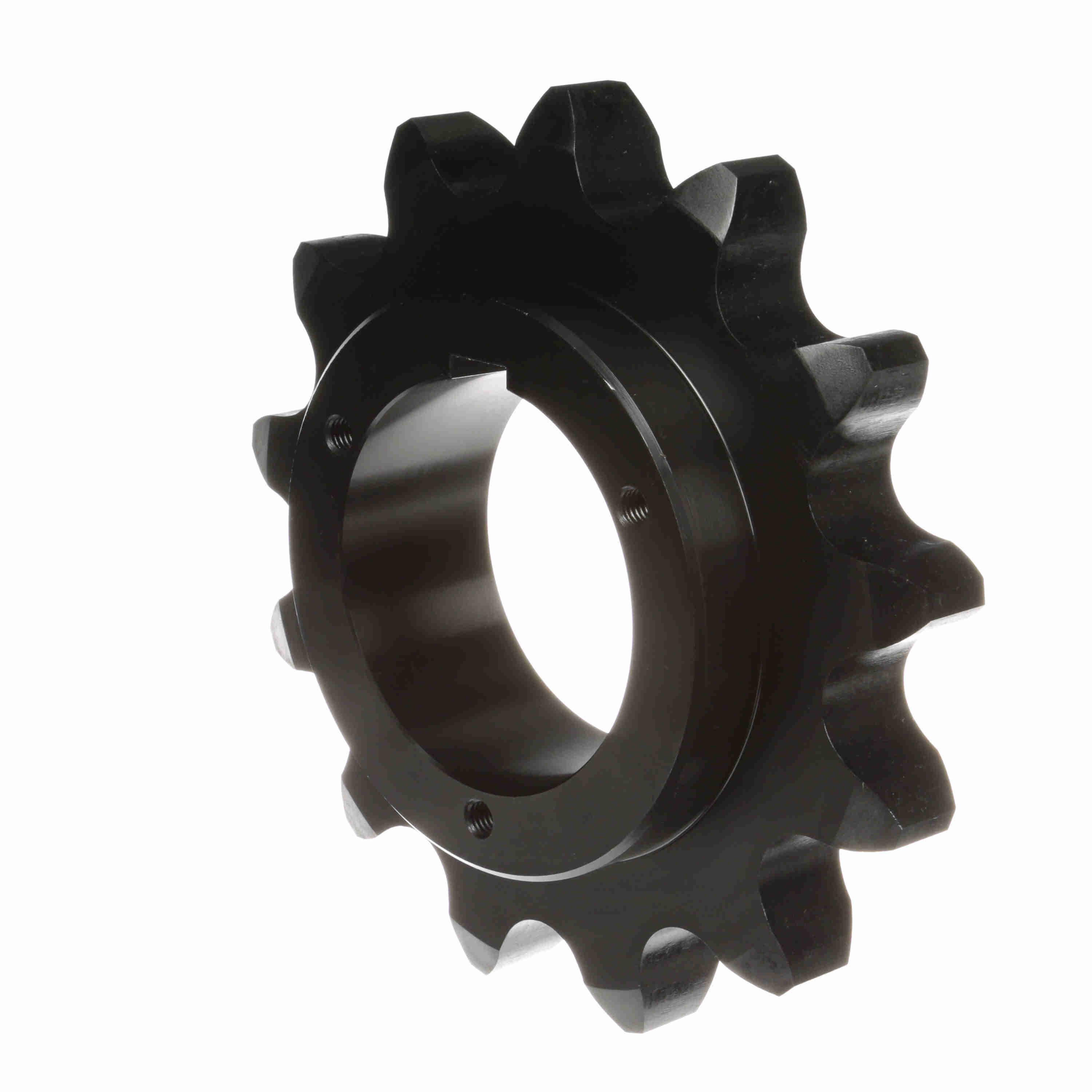

1179027 | 8.357" | 13 | 3.1406" | 5 3/8" | Single Strand Type 4 | - | - | - | €1,847.24 | |
 |

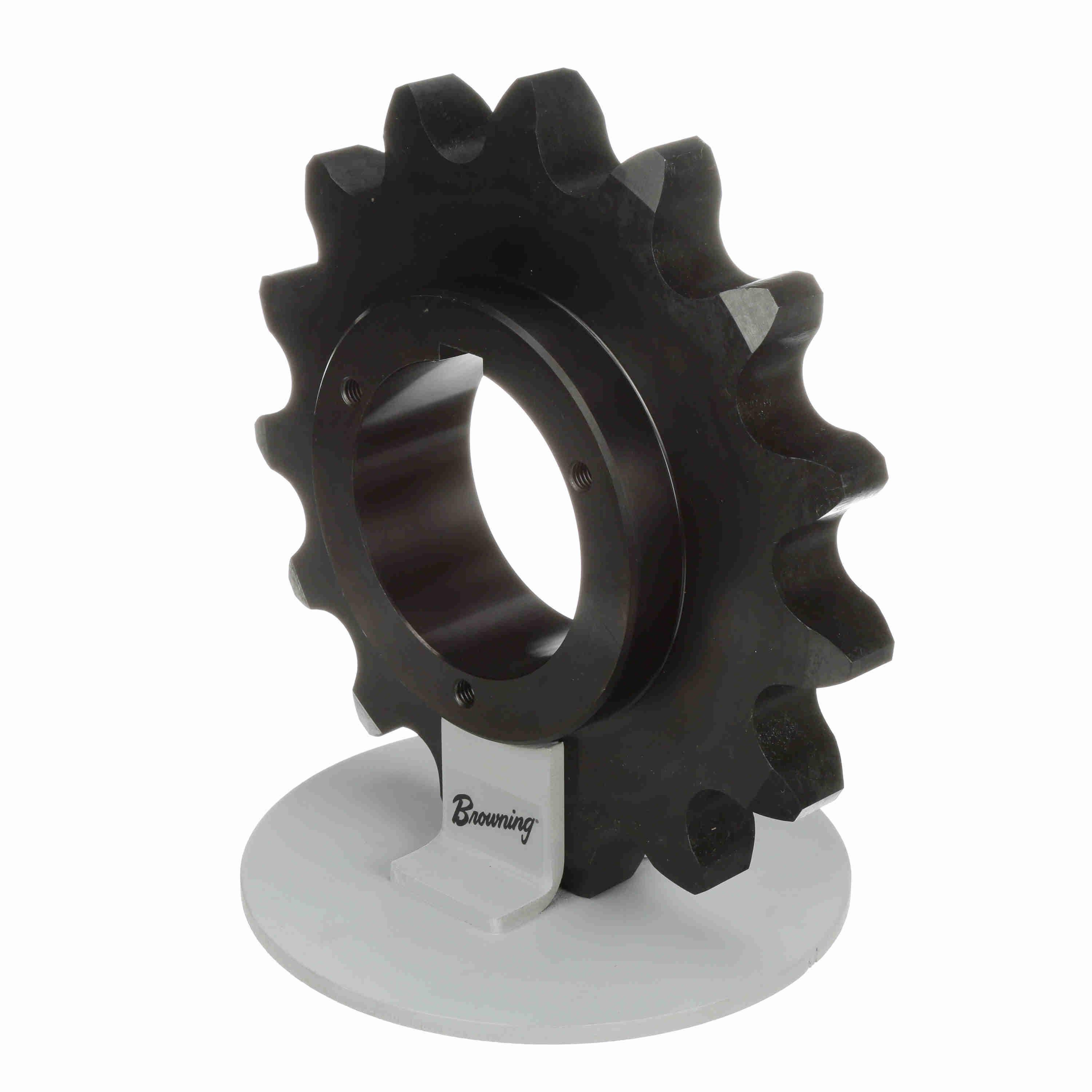

1179043 | 9.62" | 15 | 3.1406" | 5 3/8" | Single Strand Type 4 | R1 | B Hub One Side | 1 1/8" to 3 3/4" | €2,191.76 |
