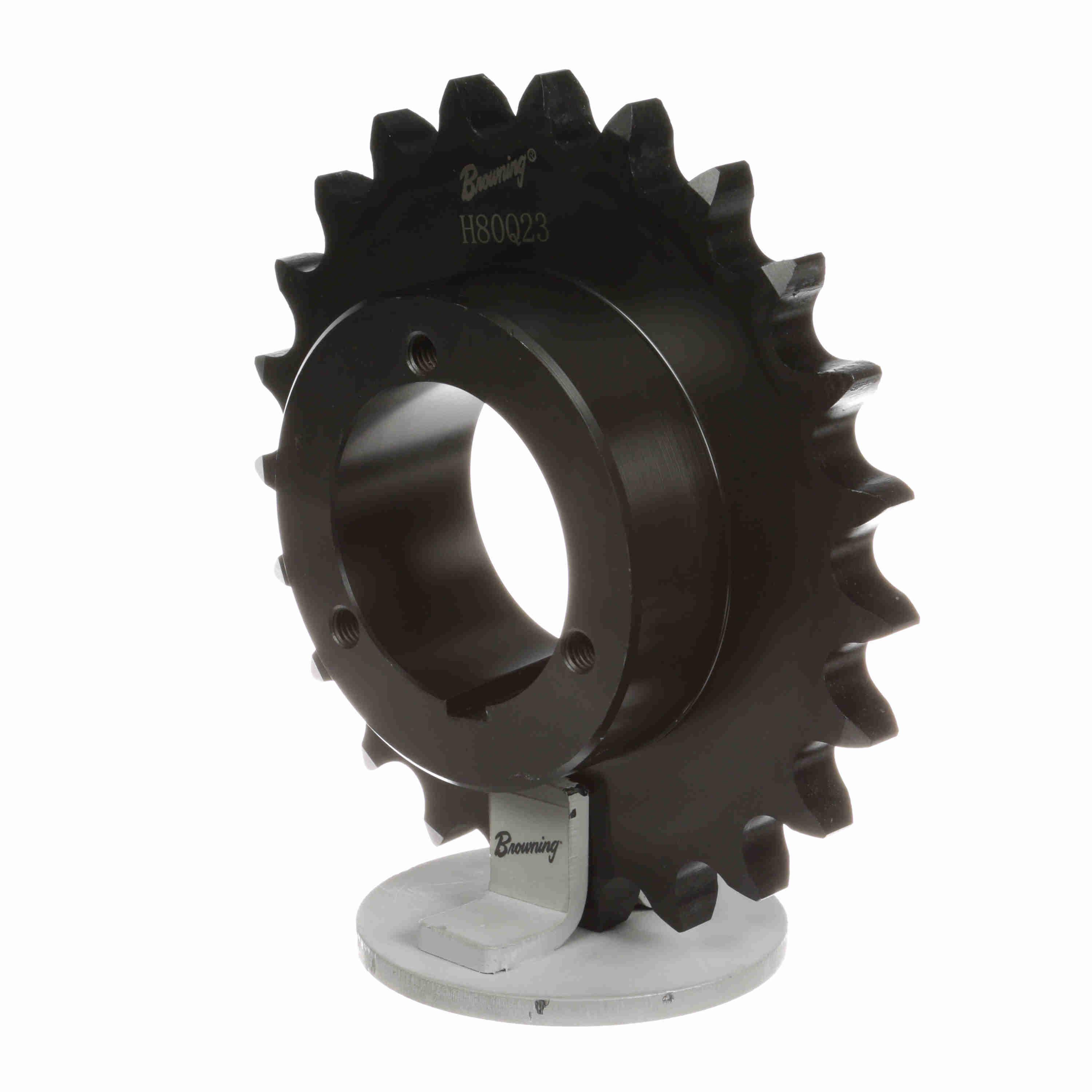

BROWNING 1178383 H80Q23 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GGCModel: 1178383Cross Ref: H80Q23
7 In Stock
23
2.8281"
Ships within 2 days via
€637.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 23 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 7.876" |
| Pitch Dia. | 7.344" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
| Weight | 7.6 lbs. |
Shipping Info:
| Ship weight (kg) | 3.42 |
| Ship height (cm) | 20.02 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 20.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Type | Length Through Bore | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3358371 | 3.55" | 4.006" | 3/8" | 2.494" | Single Strand | 1.276" | Type 3 Split Taper | B Hub One Side | €473.12 | |
 |
1178201 | 3.55" | 4.006" | - | 3" | Single Strand Type 4 | 2.3281" | - | B Hub One Side | €334.24 | |
 |
1178219 | 3.864" | 4.332" | 1/2" | 3" | Single Strand | 1.938" | Type 4 Split Taper | B Hub One Side | €316.67 | |
 |
1178227 | 4.179" | 4.657" | 1/2" | 3" | Single Strand | 1.938" | Type 4 Split Taper | B Hub One Side | €340.58 | |
 |
1178235 | 4.494" | 4.981" | - | 3" | Single Strand Type 4 | 2.1406" | - | B Hub One Side | €278.75 | |
 |
1178243 | 4.494" | 4.981" | 3/4" | 4 1/8" | Single Strand | 2 1/2" | Type 4 Split Taper | B Hub One Side | €363.41 | |
 |
1178250 | 4.81" | 5.304" | 1/2" | 3" | Single Strand | 1.938" | Type 4 Split Taper | B Hub One Side | €438.90 |
