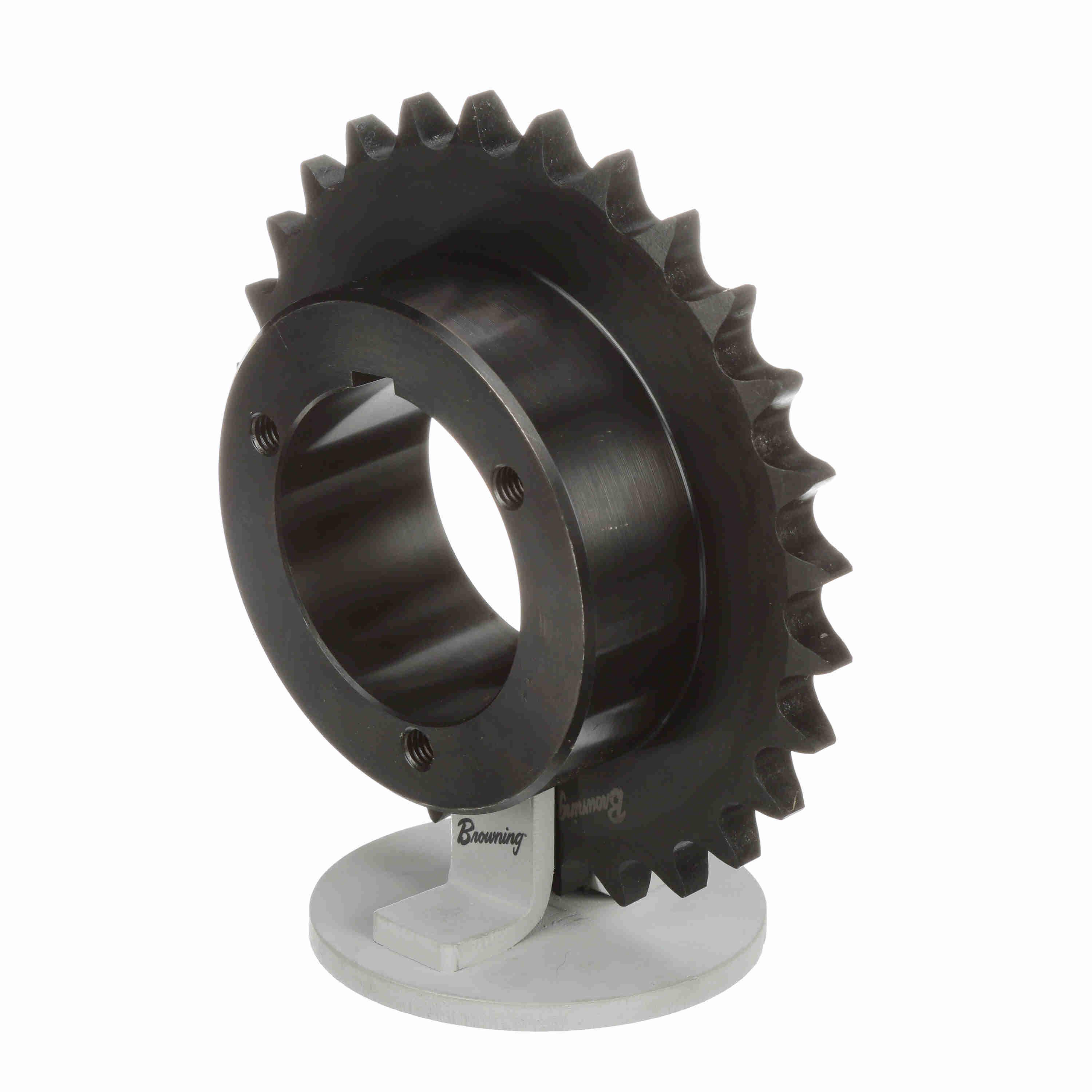

BROWNING 1178144 H60Q28 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GDWModel: 1178144Cross Ref: H60Q28
7 In Stock
Ships within 2 days via
€539.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 28 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 7.106" |
| Pitch Dia. | 6.698" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
| Weight | 6.04 lbs. |
Shipping Info:
| Ship weight (kg) | 2.72 |
| Ship height (cm) | 18.06 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 18.06 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Type | Length Through Bore | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1177815 | 3.134" | 3.493" | 1/2" | 3" | Single Strand | 1.938" | B Hub One Side | Yes | €225.47 | |
 |
1177831 | 3.371" | 3.736" | 1/2" | 3" | Single Strand | 1.938" | B Hub One Side | Yes | €251.89 | |
 |
1177856 | 3.608" | 3.978" | 1/2" | 3" | Single Strand | 1.938" | B Hub One Side | Yes | €275.14 | |
 |
1177872 | 3.845" | 4.22" | 1/2" | 3" | Single Strand | 1.938" | B Hub One Side | Yes | €253.56 | |
 |
1177898 | 4.082" | 4.462" | - | 3" | Single Strand Type 4 | 2.1406" | B Hub One Side | Yes | €342.57 | |
 |
1177914 | 4.319" | 4.703" | 1/2" | 3" | Single Strand | 1.938" | B Hub One Side | Yes | €371.50 | |
 |
1177955 | 4.794" | 5.186" | - | 3" | Single Strand Type 4 | 2.1406" | B Hub One Side | Yes | €371.77 |
