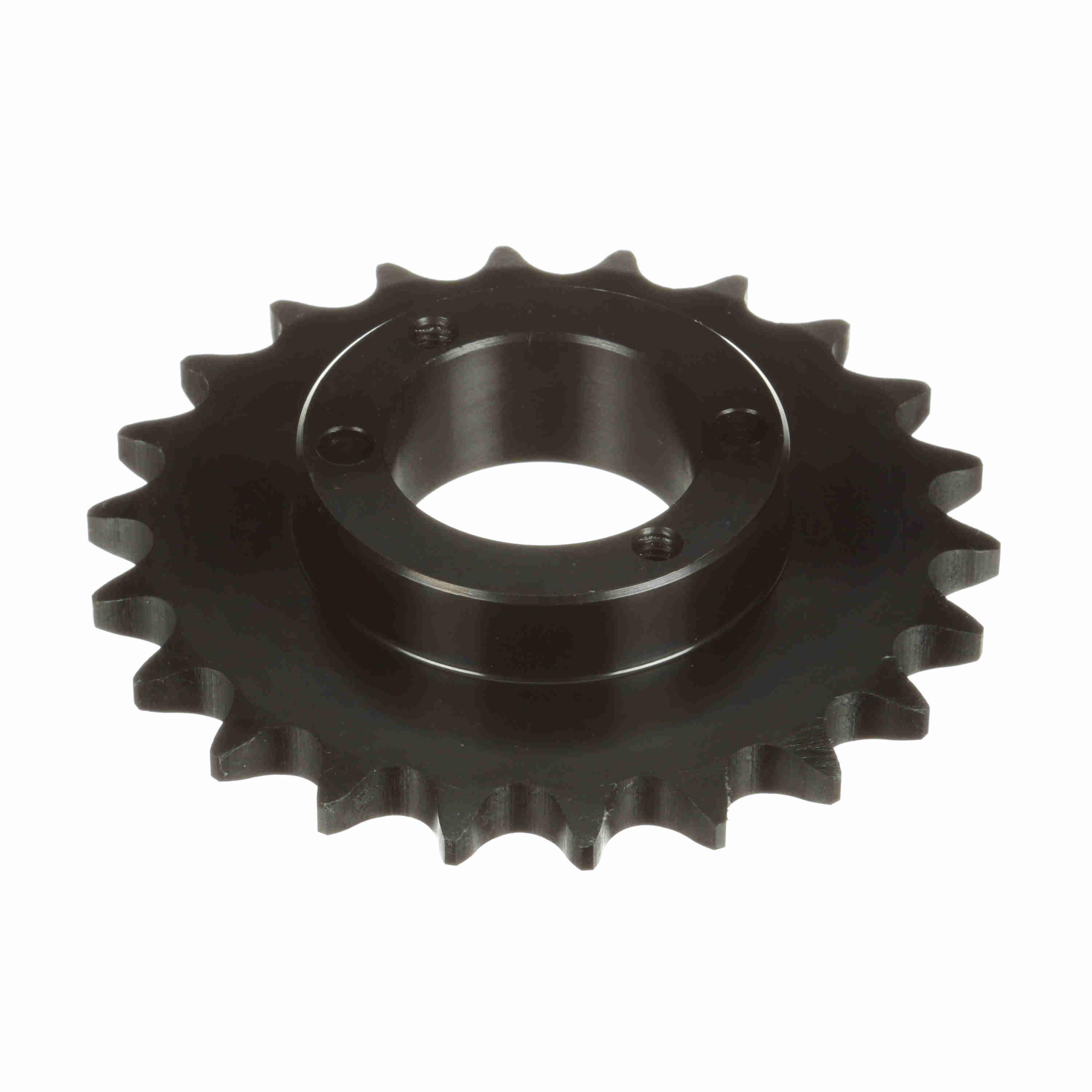

BROWNING 1177468 H50H22 Roller Chain Sprocket, Bushed Bore, Steel
Item: CE4UDAModel: 1177468Cross Ref: H50H22
7 In Stock
Ships within 2 days via
€448.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Chain Pitch | 5/8" |
| Chain Size | 50 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.5123" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 22 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 4.722" |
| Pitch Dia. | 4.392" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 3 |
| Weight | 1.68 lbs. |
Shipping Info:
| Ship weight (kg) | 0.76 |
| Ship height (cm) | 11.99 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 11.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1177278 | 2.504" | 2.219" | 3/8" | 2.015" | 1" | Single Strand | Type 3 Split Taper | B Hub One Side | €212.14 | |
 |
1177286 | 2.708" | 2.415" | 3/8" to 1" | 2.015" | 1.6063" | Single Strand Type 3 | - | - | €168.97 | |
 |
1177302 | 2.911" | 2.612" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €151.74 | |
 |
1177310 | 3.113" | 2.809" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €196.17 | |
 |
1177328 | 3.315" | 3.006" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €202.72 | |
 |
1177336 | 3.315" | 3.006" | - | 3" | 2.2162" | Single Strand Type 4 | - | B Hub One Side | €205.70 | |
 |
1177344 | 3.517" | 3.204" | - | 2.494" | 1.5123" | Single Strand Type 3 | - | B Hub One Side | €207.43 |
