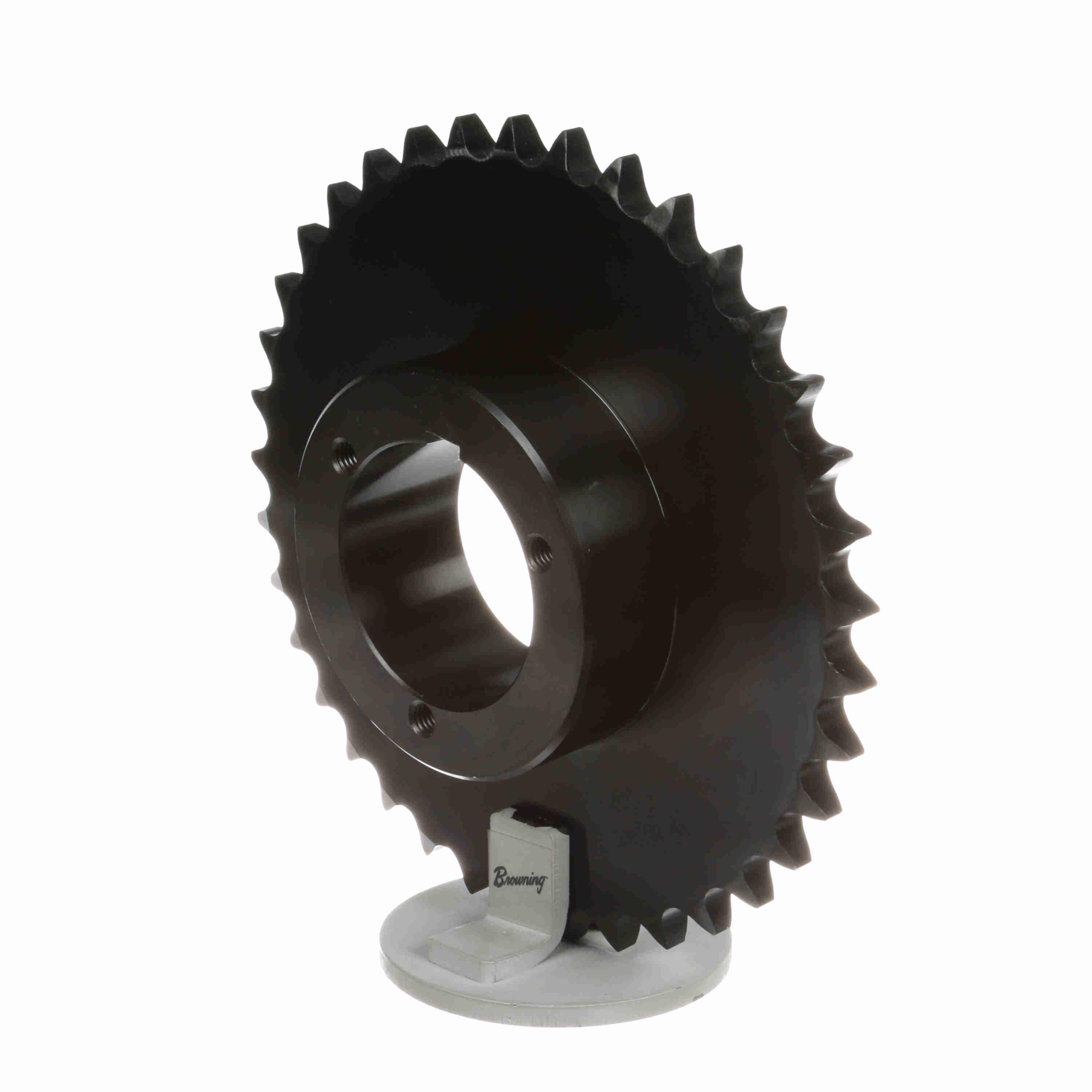

BROWNING 1171347 60Q35 Roller Chain Sprocket, Steel, Single Strand Type 4, 3/4 to 2-11/16 in Bore Dia, 8.783 in OD, 60 Chain Size, 35 Teeth, 8.367 in Pitch Dia
Item: AJ9GEEModel: 1171347Cross Ref: 60Q35
7 In Stock
35
Ships within 2 days via
€631.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 35 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 8.783" |
| Pitch Dia. | 8.367" |
| Product Datasheet | browning-1171305.pdf |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
Shipping Info:
| Ship weight (kg) | 3.8 |
| Ship height (cm) | 22.3 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 22.3 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1171453 | 11.467" | 11.893" | 3/4" to 2 11/16" | 4 1/8" | 2.8281" | Single Strand Type 4 | - | - | €677.33 | |
 |
1171305 | 7.413" | 7.826" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €663.94 | |
 |
1171313 | 7.652" | 8.065" | 3/4" | 4 1/8" | 2 1/2" | Single Strand | B Hub One Side | Yes | €555.21 | |
 |
1171321 | 7.89" | 8.305" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €757.28 | |
 |
1171339 | 8.129" | 8.544" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €599.47 | |
 |
1171354 | 8.606" | 9.023" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €549.35 | |
 |
1171362 | 8.844" | 9.262" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €771.83 |
