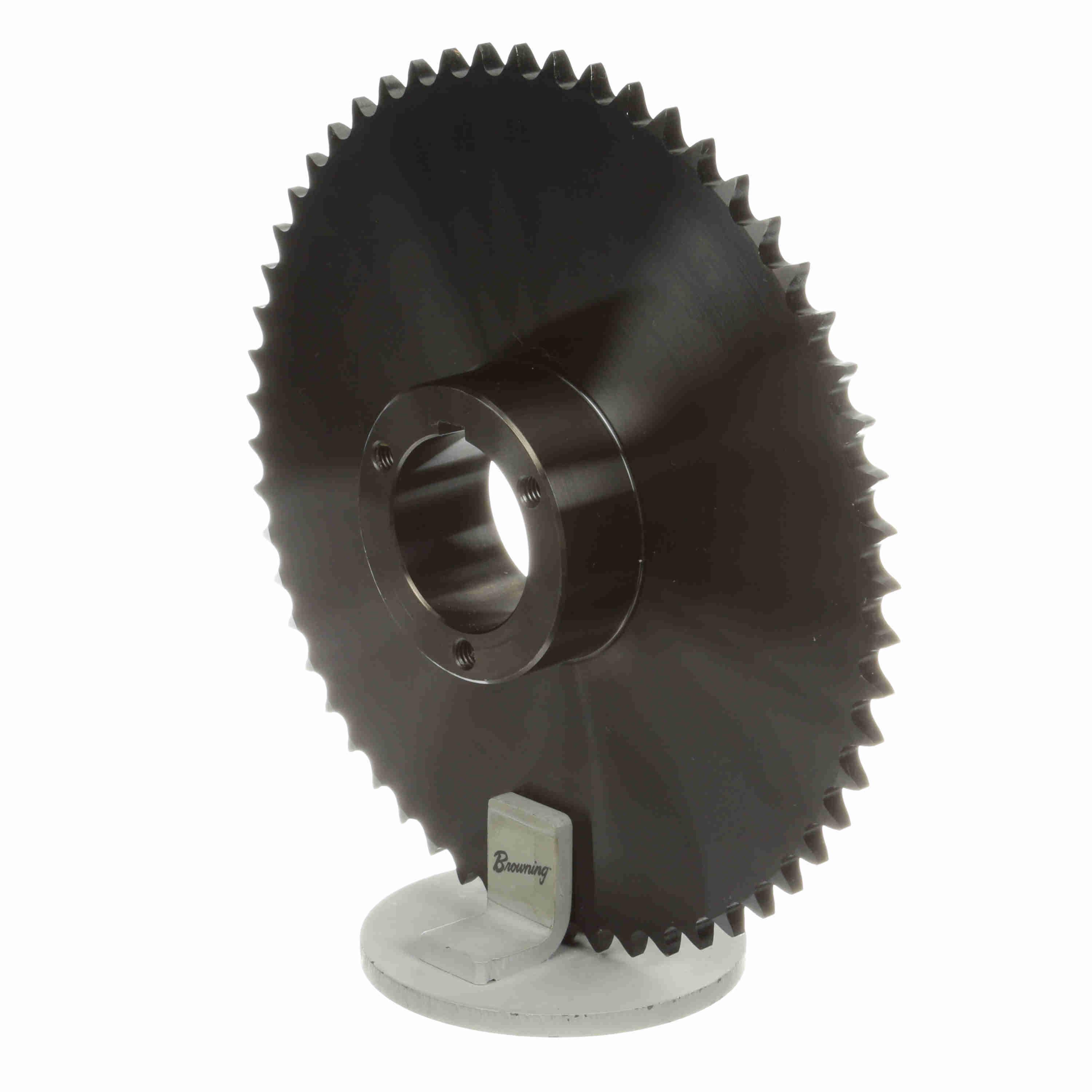

BROWNING 1170240 40P56 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GAYModel: 1170240Cross Ref: 40P56
7 In Stock
56
Ships within 2 days via
€665.61 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1/2" to 1 3/4" |
| Bushing Size | P1 |
| Chain Pitch | 1/2" |
| Chain Size | 40 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 3" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.2212" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 56 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 9.204" |
| Pitch Dia. | 8.917" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
| Weight | 6.06 lbs. |
Shipping Info:
| Ship weight (kg) | 2.73 |
| Ship height (cm) | 23.37 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 23.37 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1170083 | 5.101" | 5.376" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €433.60 | |
 |
1170109 | 5.419" | 5.696" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €442.26 | |
 |
1170117 | 5.578" | 5.856" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €201.41 | RFQ
|
 |
1170125 | 5.737" | 6.015" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €533.69 | |
 |
1170158 | 6.373" | 6.653" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €526.28 | |
 |
1170174 | 6.691" | 6.972" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €567.83 | |
 |
1170182 | 7.009" | 7.291" | 1/2" to 1 3/4" | 3" | 2.2212" | Single Strand Type 4 | - | - | €590.85 |
