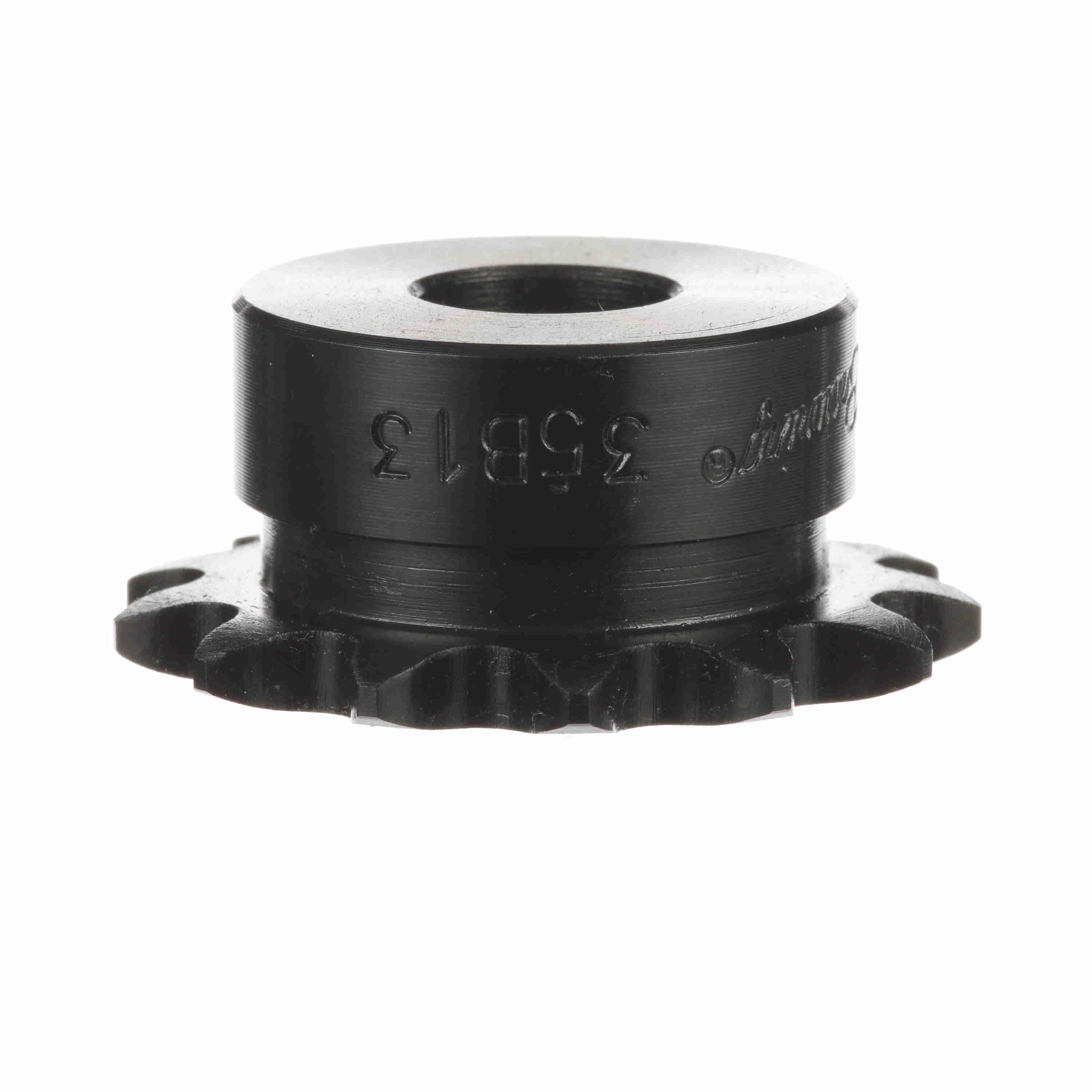

BROWNING 1121599 35B13 Roller Chain Sprocket, Plain Bore, Steel, 1-3/4 in OD, 11/16 in Bore Dia, 1.567 in Pitch Dia
Item: AJ8TYWModel: 1121599Cross Ref: 35B13
7 In Stock
Ships within 2 days via
€17.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bore Dia. | 11/16" |
| Chain Size | #35 |
| Hub Dia. | 1 1/4" |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 3/4" |
| Material | Steel |
| No. Of Teeth | 13 |
| Outside Dia. | 1 3/4" |
| Pitch Dia. | 1.567" |
| Pitch Size | 3/8" |
| Type | Single Strand Minimum Bore Type B |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 5.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Hub Type | Keyway | Max. Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

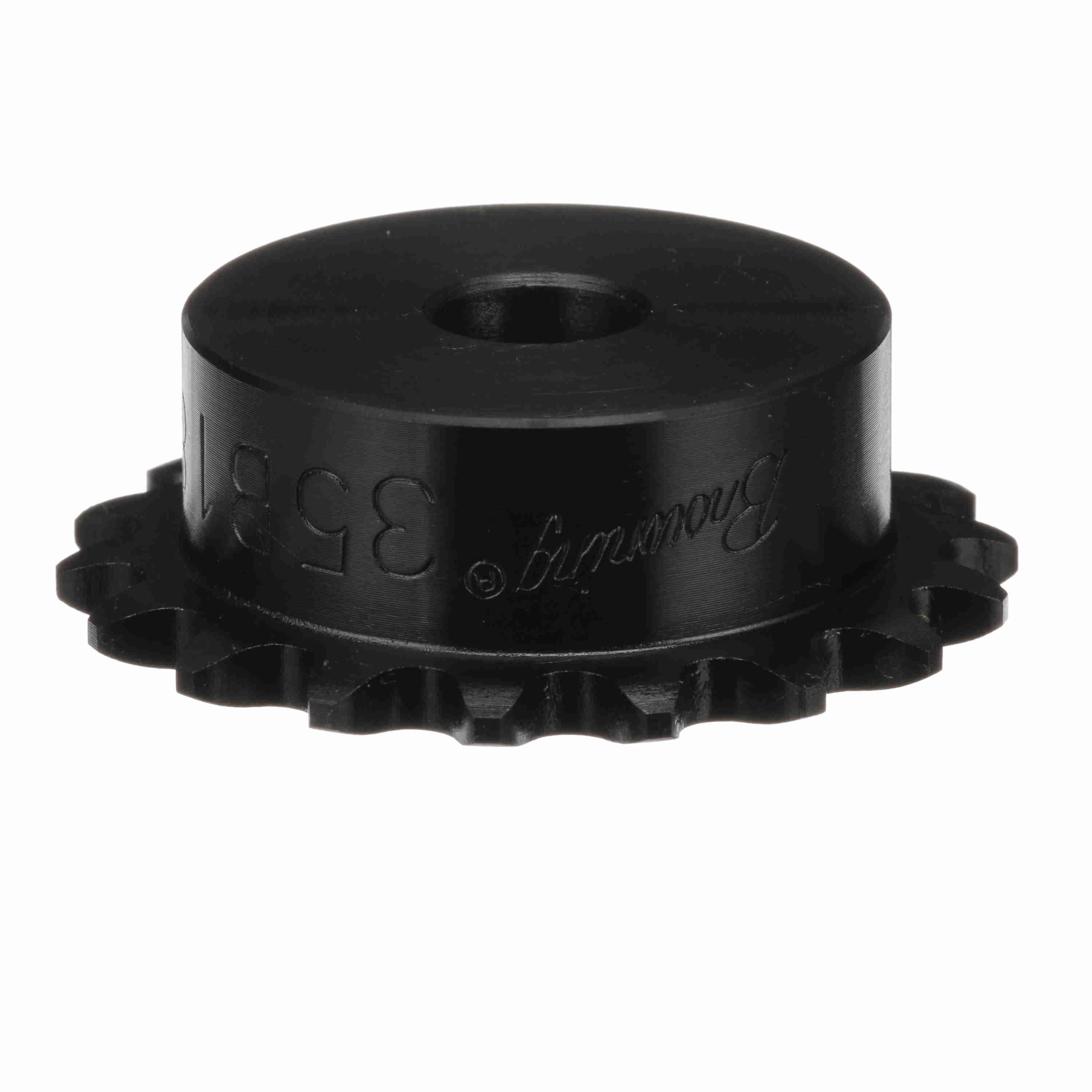

1121649 | 1/2" | 2 4/25" | 2.352" | 1 23/32" | 3/4" | B Hub One Side | No | 1.188" | €20.31 |
