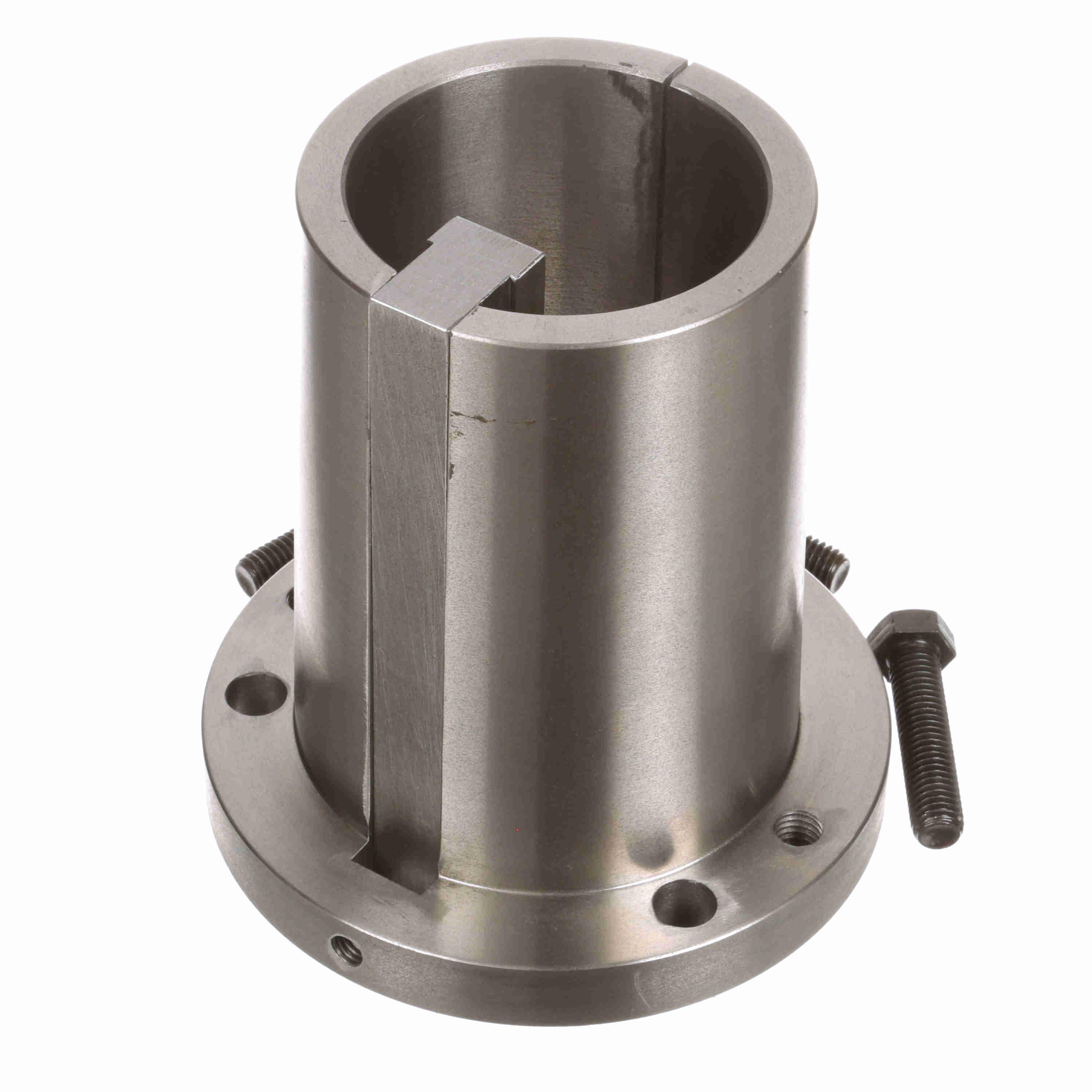

BROWNING 1080563 S2 3 7/16 Split Taper Bushing, 3.4375 Inch Bore Size, 6.375 Inch Outer Dia., S2 Split Taper Bushing, Sintered Steel/ Ductile Iron
3 7/16"
Get it by Monday, Dec 22
€460.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 5 3/8" |
| Bore Size | 3 7/16" |
| Bushing Series | S2 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 6 3/8" |
| Flange Thickness | 3/4" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Keyway | Yes |
| Length Thru Bore | 6 3/4" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4 5/8" |
| Overall Length | 6 3/4" |
| Screw Size | 1/2" x 2 1/4" |
| System Of Measurement | Imperial |
| Type | Type S2 |
| Weight | 15.75 lbs. |
Shipping Info:
| Ship weight (kg) | 7.09 |
| Ship height (cm) | 11.76 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 11.76 |
Product Variants
| Product | Model | Bore Size | Bolt Circle Dia. | Flange Thickness | Overall Length | Type | Outside Dia. | Keyway Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1080399 | 2 3/16" | 5 3/8" | 3/4" | 6 3/4" | Type S2 | 4 5/8" | - | €484.70 | RFQ
|
 |
1080423 | 2 3/8" | 5 3/8" | 3/4" | 6 3/4" | Type S2 | 4 5/8" | - | €484.70 | |
 |
1080431 | 2 7/16" | 5 3/8" | 3/4" | 6 3/4" | Type S2 | 4 5/8" | - | €607.39 | |
 |
1080449 | 2 1/2" | 5 3/8" | 3/4" | - | Type S2 | 4 5/8" | - | €1,038.67 | |
 |
1080472 | 2 11/16" | 5 3/8" | 3/4" | 6 3/4" | Type S2 | 4 5/8" | - | €1,010.07 | |
 |
1080498 | 2 7/8" | 5 3/8" | 3/4" | 6 3/4" | Type S2 | 4 5/8" | - | €471.36 | RFQ
|
 |
1080506 | 2 15/16" | 5 3/8" | 3/4" | 6 3/4" | Type S2 | 4 5/8" | - | €595.97 |
