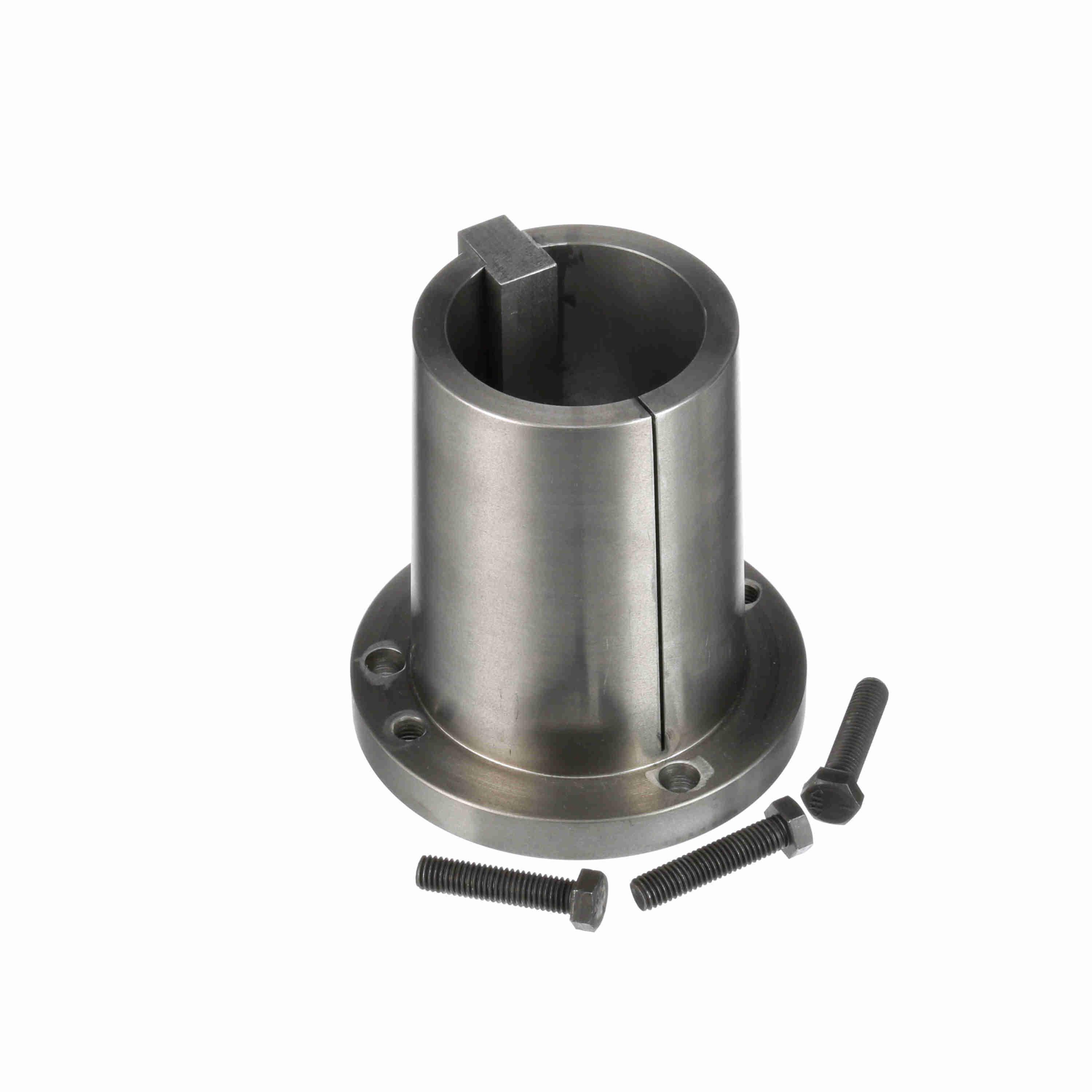

BROWNING 1080555 S2 3 3/8 Split Taper Bushing, 3.375 Inch Bore Size, 6.375 Inch Outer Dia., S2 Split Taper Bushing, Sintered Steel/ Ductile Iron
3 3/8"
Get it by Friday, Aug 14
€595.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 5 3/8" |
| Bore Size | 3 3/8" |
| Bushing Series | S2 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 6 3/8" |
| Flange Thickness | 3/4" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Keyway | Yes |
| Length Thru Bore | 6 3/4" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4 5/8" |
| Overall Length | 6 3/4" |
| Screw Size | 1/2" x 2 1/4" |
| System Of Measurement | Imperial |
| Type | Type S2 |
Shipping Info:
| Ship weight (kg) | 7.34 |
| Ship height (cm) | 11.76 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 11.76 |
Product Variants
| Product | Model | Material | Bore Size | Bolt Circle Dia. | Type | No. Of Bolt Holes | Screw Size | Flange Thickness | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1080399 | Sintered Steel | 2 3/16" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €484.70 | |
 |
1080423 | Sintered Steel | 2 3/8" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €484.70 | |
 |
1080431 | Sintered Steel | 2 7/16" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €607.39 | |
 |
1080449 | Steel | 2 1/2" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €1,038.67 | |
 |
1080472 | Ductile Iron, Sintered Steel | 2 11/16" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €1,010.07 | |
 |
1080498 | Ductile Iron, Sintered Steel | 2 7/8" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €471.36 | |
 |
1080506 | Sintered Steel | 2 15/16" | 5 3/8" | Type S2 | 3 | 1/2" x 2 1/4" | 3/4" | 6 3/8" | €595.97 |
