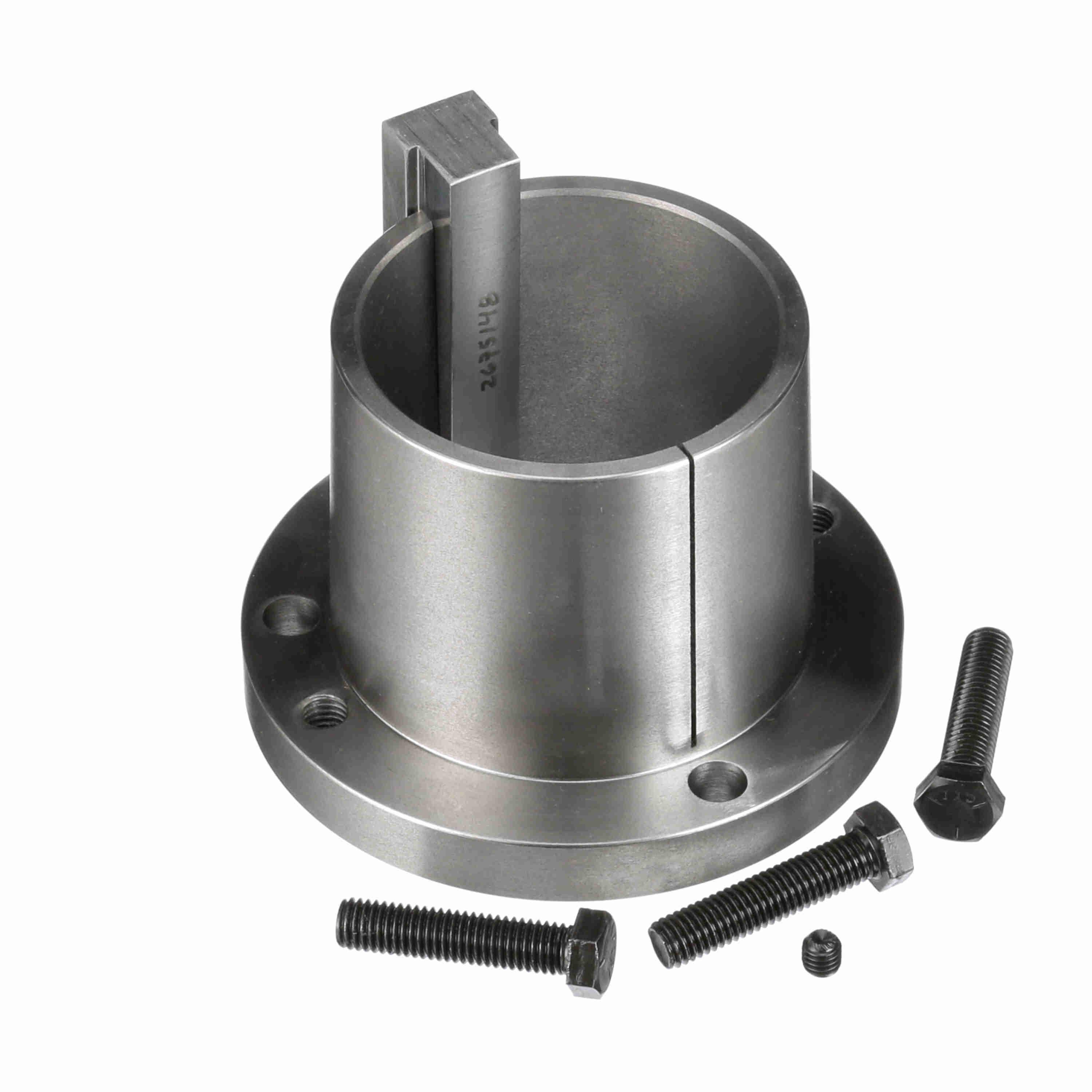

BROWNING 1080290 S1 3 7/8 Split Taper Bushing, 3.875 Inch Bore Size, 6.375 Inch Outer Dia., S1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XPNModel: 1080290Cross Ref: S1 3 7/8
7 In Stock
Ships within 2 days via
€566.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 5 3/8" |
| Bore Size | 3 7/8" |
| Bushing Series | S1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 6 3/8" |
| Flange Thickness | 3/4" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Keyway | Yes |
| Length Thru Bore | 4.38" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4 5/8" |
| Overall Length | 4 3/8" |
| Screw Size | 1/2" x 2 1/4" |
| System Of Measurement | Imperial |
| Type | Type S1 |
| Weight | 9.14 lbs. |
Shipping Info:
| Ship weight (kg) | 4.11 |
| Ship height (cm) | 11.76 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 11.76 |
Product Variants
| Product | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Type | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1080043 | 1 15/16" | - | 5 3/8" | 4 3/8" | 3/4" | Type S1 | 4 5/8" | €355.74 | |
|
1080050 | 2" | 1/2" x 1/4" | 5 3/8" | 4 3/8" | 3/4" | - | 4 5/8" | €808.05 | |
 |
1080068 | 2 1/8" | - | 5 3/8" | 4 3/8" | 3/4" | Type S1 | 4 5/8" | €681.78 | |
 |
1080076 | 2 3/16" | - | 5 3/8" | 4 3/8" | 3/4" | Type S1 | 4 5/8" | €387.76 | RFQ
|
 |
1080100 | 2 3/8" | - | 5 3/8" | 4 3/8" | 3/4" | Type S1 | - | €594.62 | |
 |
1080118 | 2 7/16" | - | 5 3/8" | 4 3/8" | 3/4" | Type S1 | 4 5/8" | €476.75 | |
 |
1080126 | 2 1/2" | - | 5 3/8" | 4 3/8" | 3/4" | Type S1 | 4 5/8" | €396.80 |
