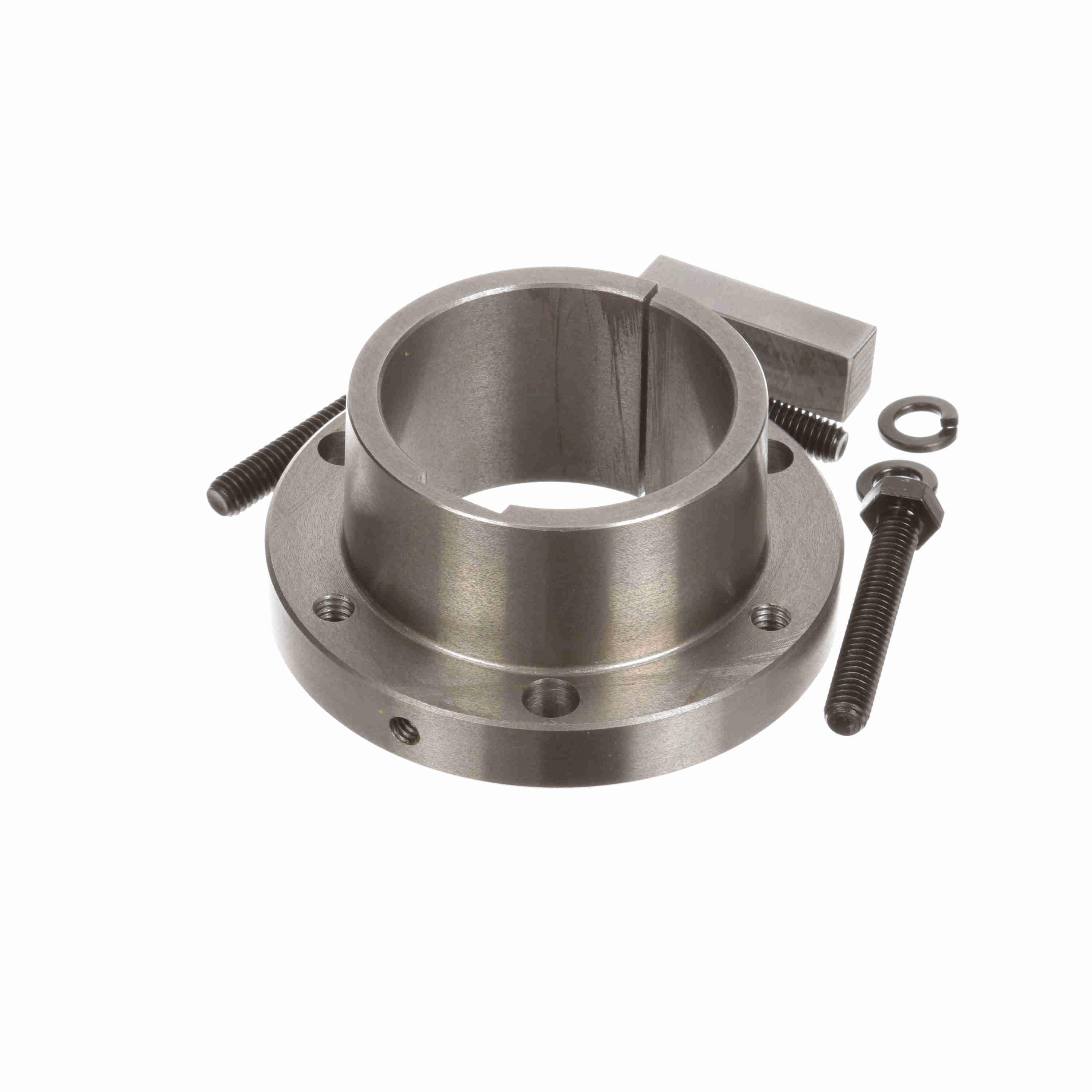

BROWNING 1078047 SK 2 5/16 Q-D Bushing, 2.3125 Inch Bore Size, 3.875 Inch Outer Diameter, SK Bushing, Ductile Iron
Item: AJ9QNTModel: 1078047Cross Ref: SK 2 5/16
7 In Stock
Ships within 2 days via
€166.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 2 13/16" |
| Bolt Circle Dia. | 3 5/16" |
| Bore Size | 2 5/16" |
| Bushing Series | SK Series |
| Bushing Style | QD |
| Flange Dia. | 3 7/8" |
| Flange Thickness | 9/16" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 5/8" x 5/16" |
| Length Thru Bore | 1.938" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 2.812" |
| Overall Length | 1 3/4" |
| Rated Torque | 7000 lbs.-in. |
| Screw Size | 5/16"-18 |
| Screw Thread Length | 2" |
| System Of Measurement | Imperial |
| Weight | 1.98 lbs. |
Shipping Info:
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 11.18 |
Product Variants
| Product | Model | Overall Length | Bore Size | Keyway Size | Bolt Circle Dia. | Flange Thickness | Outside Dia. | Rated Torque | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1077775 | 1 3/4" | 3/4" | 3/16" x 3/32" | 3 5/16" | 9/16" | 2.812" | 7000 lbs.-in. | - | €86.10 | |
 |
1077783 | 1 3/4" | 13/16" | 3/16" x 3/32" | 3 5/16" | 9/16" | 2.812" | 7000 lbs.-in. | Type SK | €166.45 | |
 |
1077791 | 1 3/4" | 7/8" | 3/16" x 3/32" | 3 5/16" | 9/16" | 2.812" | 7000 lbs.-in. | - | €66.58 | RFQ
|
 |
1077817 | 1 3/4" | 1" | 1/4" x 1/8" | 3 5/16" | 9/16" | - | 7000 lbs.-in. | - | €95.52 | |
 |
1077833 | 1 3/4" | 1 1/8" | 1/4" x 1/8" | 3 5/16" | 9/16" | - | 7000 lbs.-in. | - | €137.36 | |
 |
1077841 | 1 3/4" | 1 3/16" | 1/4" x 1/8" | 3 5/16" | 9/16" | 2.812" | - | - | €66.58 | RFQ
|
 |
1077858 | 1 3/4" | 1 1/4" | 1/4" x 1/8" | 3 5/16" | 9/16" | 2.812" | 7000 lbs.-in. | - | €95.52 |
