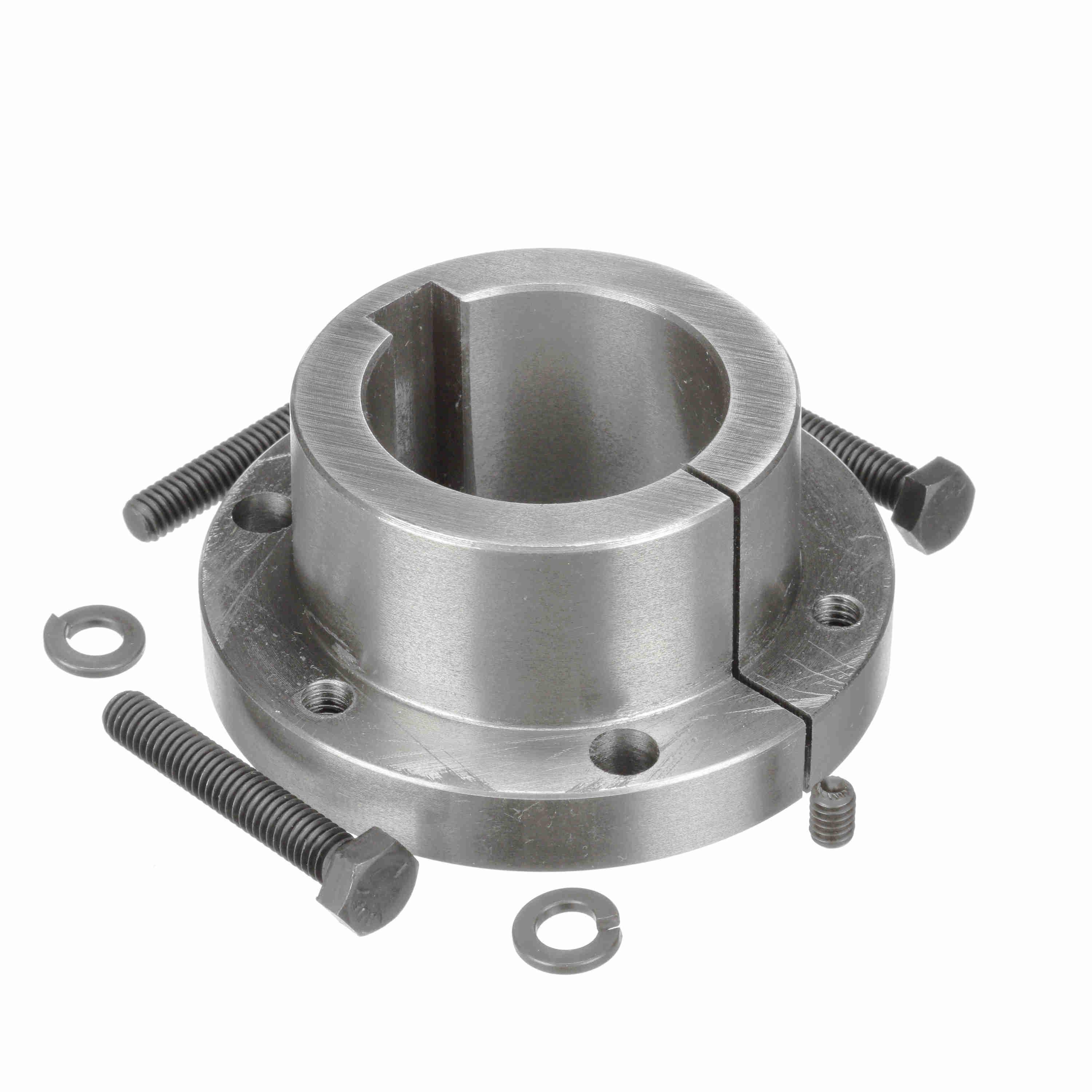

BROWNING 1077981 SK 1 15/16 Q-D Bushing, 1.9375 Inch Bore Size, 3.875 Inch Outer Diameter, SK Bushing, Ductile Iron
Item: AJ9QMQModel: 1077981Cross Ref: SK 1 15/16
7 In Stock
1 15/16"
Ships within 2 days via
€94.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 3 5/16" |
| Bore Size | 1 15/16" |
| Bushing Series | SK Series |
| Bushing Style | QD |
| Flange Dia. | 3 7/8" |
| Flange Thickness | 9/16" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Key Way Size | 1/2" x 1/4" |
| Keyway | Yes |
| Length Thru Bore | 1.938" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 2.812" |
| Overall Length | 1 3/4" |
| Product Datasheet | browning-e-1-7-8.pdf |
| Screw Size | 5/16"-18 |
| Screw Thread Length | 2" |
| System Of Measurement | Imperial |
| Torque | 7000 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 7.14 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 7.14 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Material | Bore Size | Key Way Size | Keyway | Bolt Circle Dia. | Type | No. Of Bolt Holes | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1077783 | Ductile Iron | 13/16" | 3/16" x 3/32" | Yes | 3 5/16" | Type SK | 3 | 5/16"-18 | €166.45 | |
 |
1077817 | Ductile Iron | 1" | 1/4" x 1/8" | - | 3 5/16" | - | 3 | 5/16"-18 | €95.52 | |
 |
1077833 | Ductile Iron | 1 1/8" | 1/4" x 1/8" | - | 3 5/16" | - | 3 | 5/16"-18 | €137.36 | |
 |
1077858 | Ductile Iron | 1 1/4" | 1/4" x 1/8" | Yes | 3 5/16" | - | 3 | 5/16"-18 | €95.52 | |
 |
1077866 | Steel | 1 5/16" | 5/16" x 5/32" | Yes | 3 5/16" | Type SK | 3 | 5/16"-18 | €166.45 | |
 |
1077890 | Ductile Iron | 1 3/8" | 3/4" x 3/16" | Yes | 3 5/16" | - | 3 | 5/16"-18 | €124.84 | |
 |
1077908 | Ductile Iron | 1 7/16" | 3/4" x 3/16" | Yes | 3 5/16" | - | 3 | 5/16"-18 | €94.13 |
