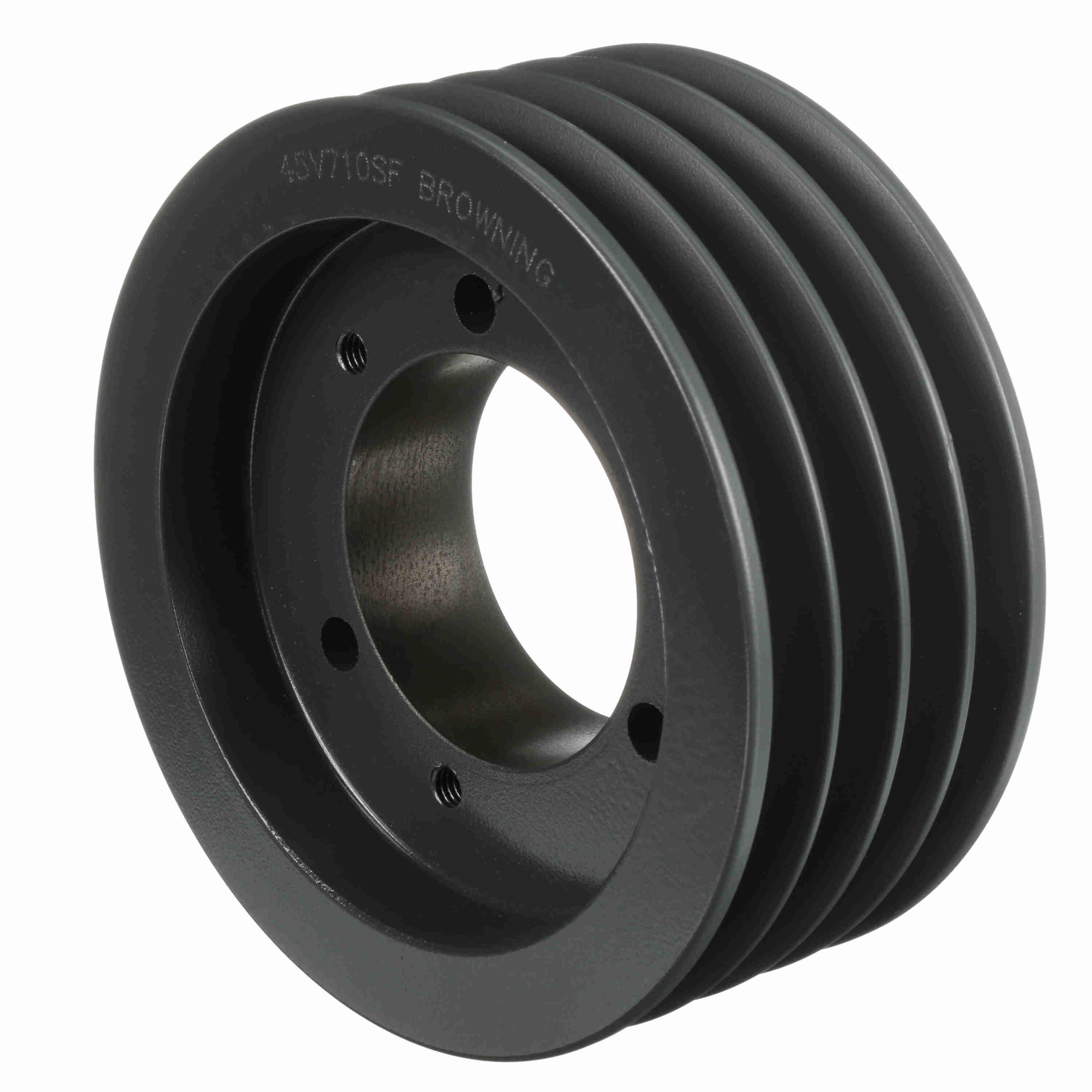

BROWNING 1065929 45V710SF V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
7.1"
Get it by Monday, Dec 22
€621.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 3 1/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 7.1" |
| Pitch Dia. | 7" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Solid |
| Weight | 14.9 lbs. |
Shipping Info:
| Ship weight (kg) | 6.17 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 18.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Type | Bore Type | Material | Face Width | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3063245 | 5.9" | 1/2" to 2" | Type A Solid | QD | Cast Iron | 3 1/16" | - | €702.23 | |
|
3050002 | 5 1/5" | 1/2" to 2" | Type A Solid | QD | Cast Iron | 3 1/16" | - | €690.13 | |
 |
3063401 | 18.7" | 7/8" to 3 1/2" | Type A Arm | QD | Cast Iron | 3 1/16" | - | €1,004.85 | |
 |
3063419 | 23 3/5" | 1" to 4" | Type C Arm | QD | Cast Iron | 3 1/16" | - | €3,151.67 | |
 |
3050085 | 6.3" | 1/2" to 2 5/8" | - | QD | Cast Iron | 3 1/16" | 3 1/16" | €595.29 | |
|
3049954 | 4.9" | 1/2" to 2" | Type A Solid | QD | Cast Iron | 3 1/16" | - | €598.62 | |
 |
1065937 | 7 1/2" | 1/2" to 2 15/16" | Type A Solid | QD | Cast Iron | 3 1/16" | - | €669.37 |
