BROWNING 1064443 13V1900SK V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron, 19 in OD
Get it by Friday, Aug 14
€939.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 1/2" to 2 5/8" |
| Bore Type | QD |
| Bushing Type | SK |
| Face Width | 11/16" |
| Hub Projection | 29/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 19" |
| Overall Length | 1 3/4" |
| Pitch Dia. | 18.95" |
| Suitable For Use With | 3V-Cross Section V-Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 11.51 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 50.17 |
| Ship width (cm) | 50.17 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Hub Projection | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1064427 | 10.55" | 1/2" to 2" | - | - | SDS | 0.73125" | Cast Iron | 11/16" | €627.39 | |
 |

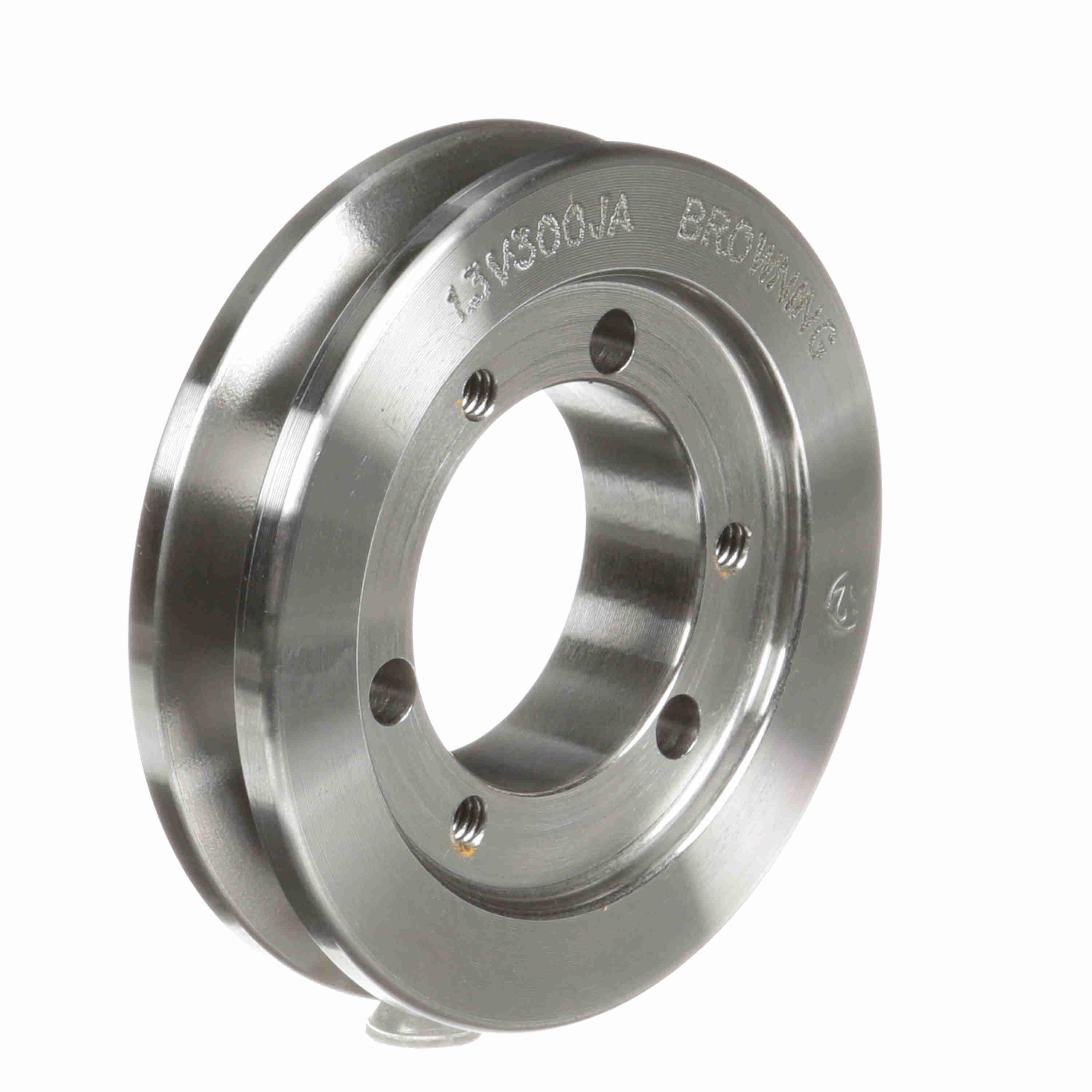

1064260 | 2 3/5" | 1/2" to 1 1/4" | 2 3/5" | 2 3/5" | JA | 0.42375" | Cast Iron | 11/16" | €140.53 | |
 |
3050192 | 2.3" | 1/2" to 1 1/4" | - | - | JA | 1.11125" | Cast Iron | 11/16" | €130.50 | |
 |

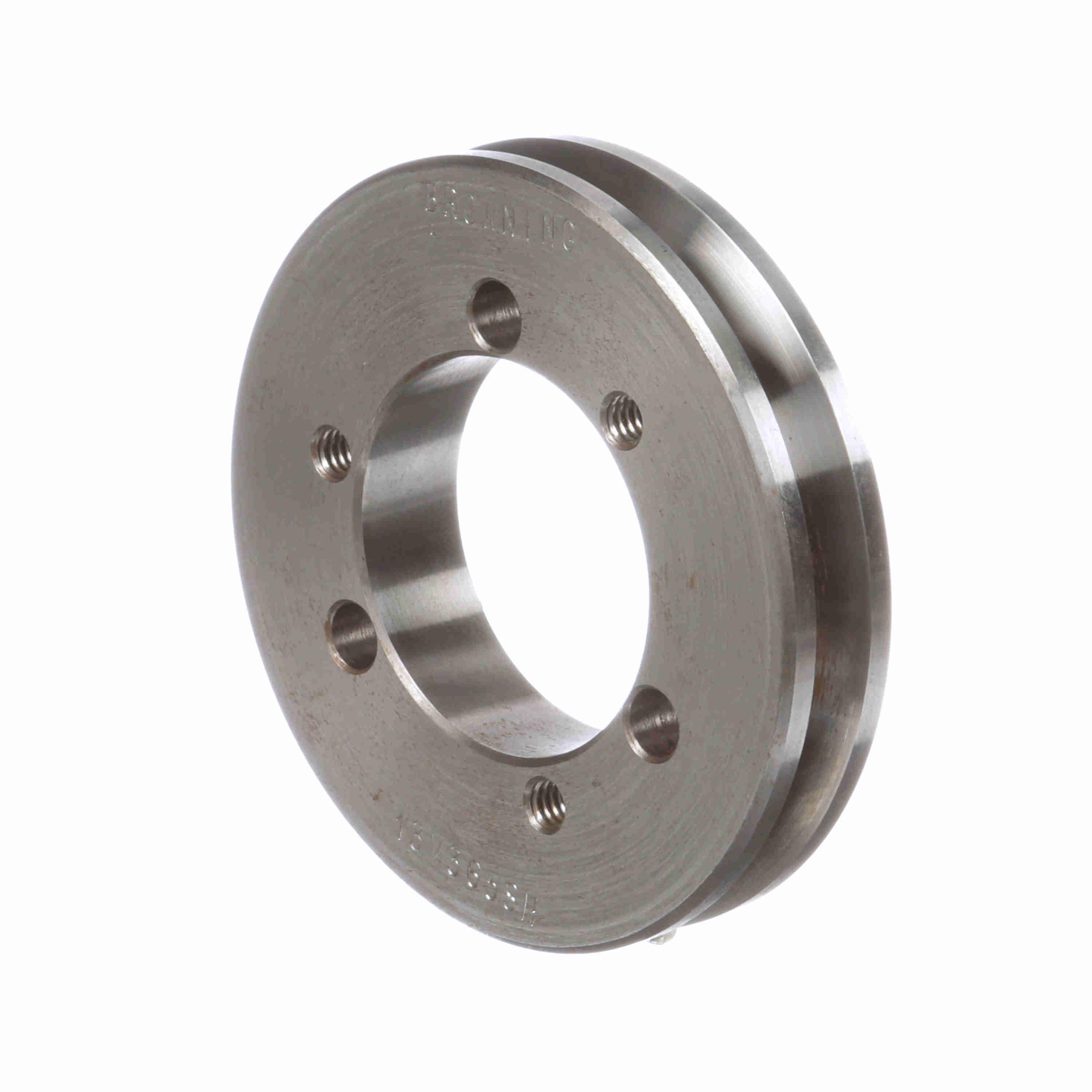

1064310 | 3 3/5" | 1/2" to 1 5/8" | 3 3/5" | 3 3/5" | SH | 0.7" | Cast Iron | 11/16" | €216.48 | |
 |
3050176 | 2.45" | 1/2" to 1 1/4" | - | - | JA | 1.04875" | Cast Iron | 11/16" | €135.51 | |
|
1064278 | 2 3/4" | 1/2" to 1 1/4" | 2 3/4" | 2 3/4" | JA | 0.42375" | Cast Iron | 11/16" | €133.55 | |
 |
3050218 | 2.15" | 1/2" to 1 1/4" | - | - | JA | 1.11125" | Cast Iron | 11/16" | €125.46 |
