MADISON Plastic Single-Point Liquid Level Switches
Madison plastic single-point liquid level switches regulate and monitor the oil or water level in a container. These units float on the top of the liquid surface and notify users when the liquid surface goes up or down. They are used in pumps, valves or alarms.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Float Length | Float Dia. | Body Material | Operating Temp. | Mounting | Float Material | Max. Current | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

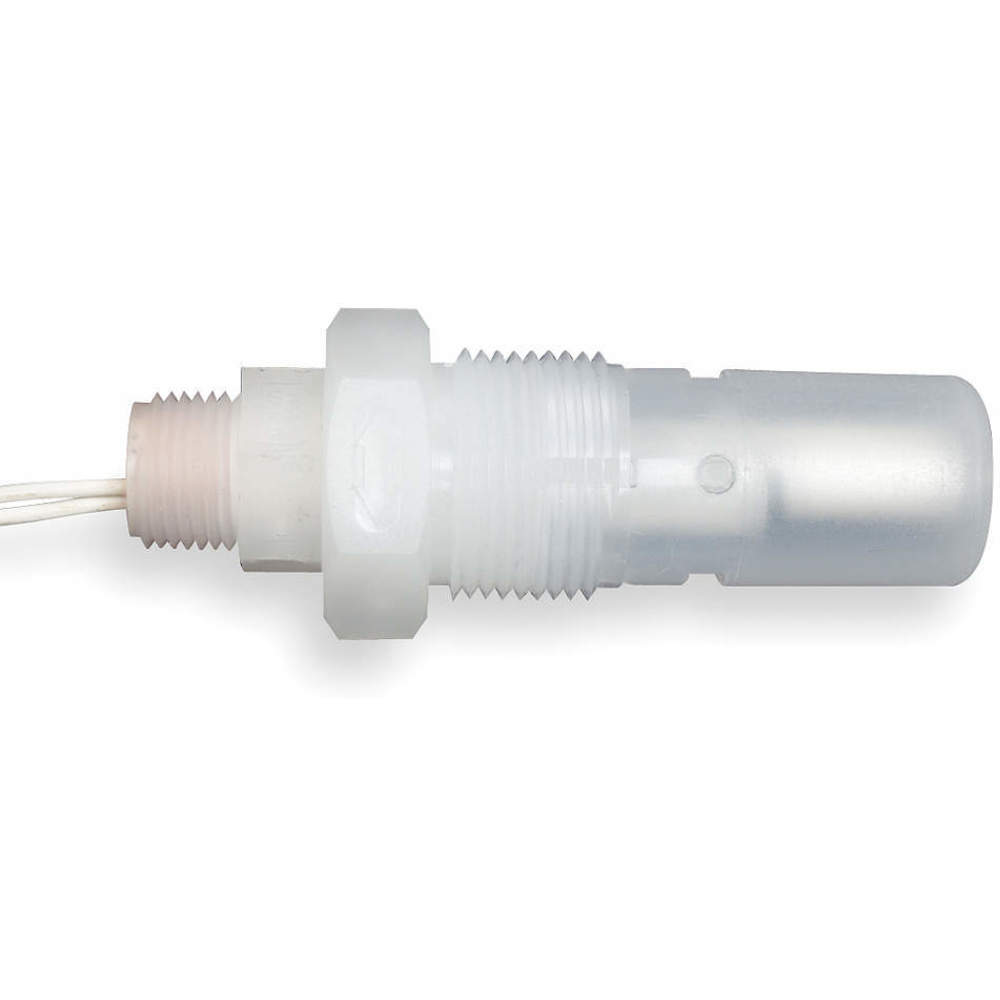

| A | M8705 | 1 3/4" | 1" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | €63.22 | |

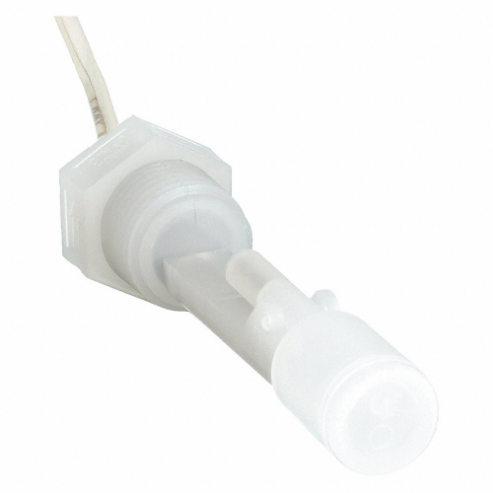

| B | M8750 | 1 3/4" | 1" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | €30.48 | |

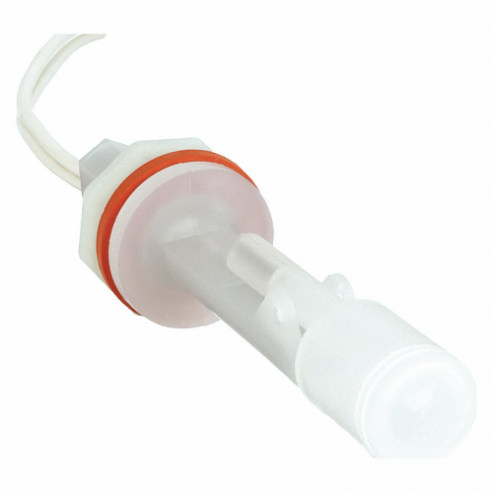

| C | M8790 | 1 3/4" | 1" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | €29.20 | |

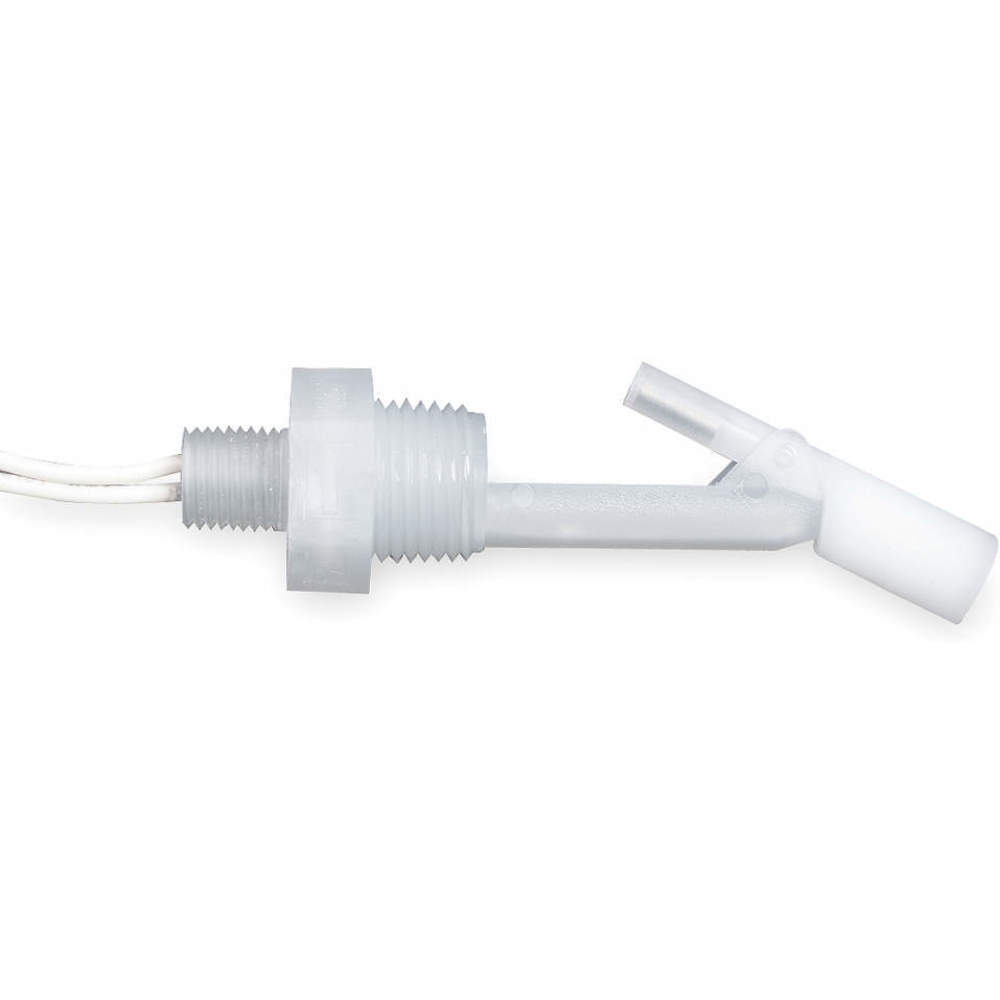

| D | M8710 | 1 3/4" | 1" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | €81.90 | |

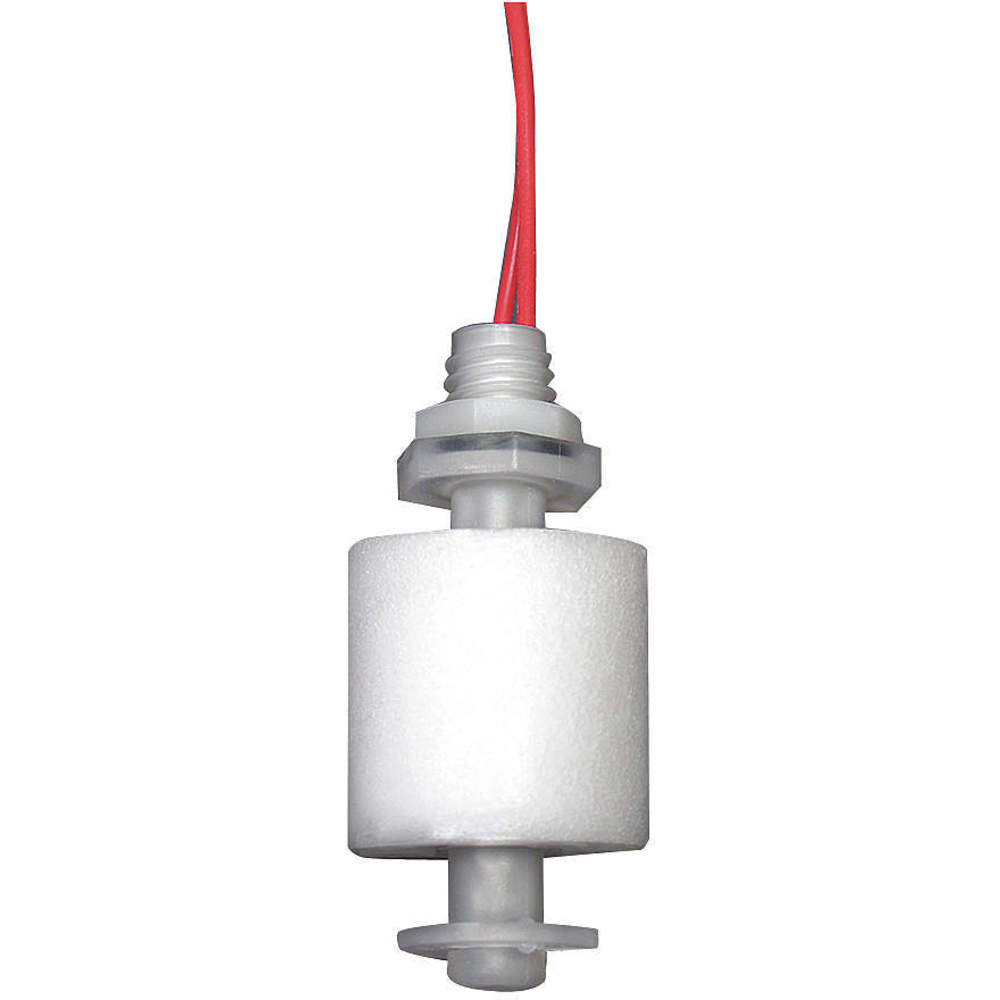

| E | M8000B | 1" | 1" | Polypropylene | 221°F | Vertical Open Tank | Polypropylene | 0.28A | Polypropylene | €49.34 | |

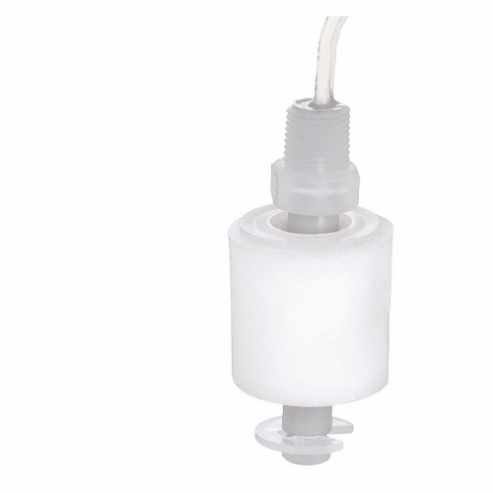

| F | M8000 | 1" | 1" | Polypropylene | 221°F | Vertical Open Tank | Polypropylene | - | Polypropylene | €23.76 | |

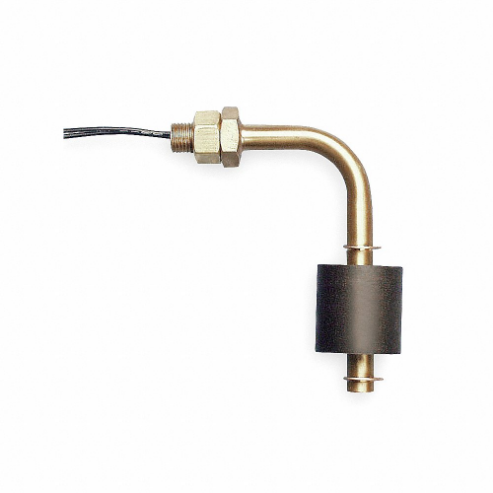

| G | M4010 | 1" | 1" | Brass | 221°F | Side | Buna N | 0.28A | Brass | €89.95 | |

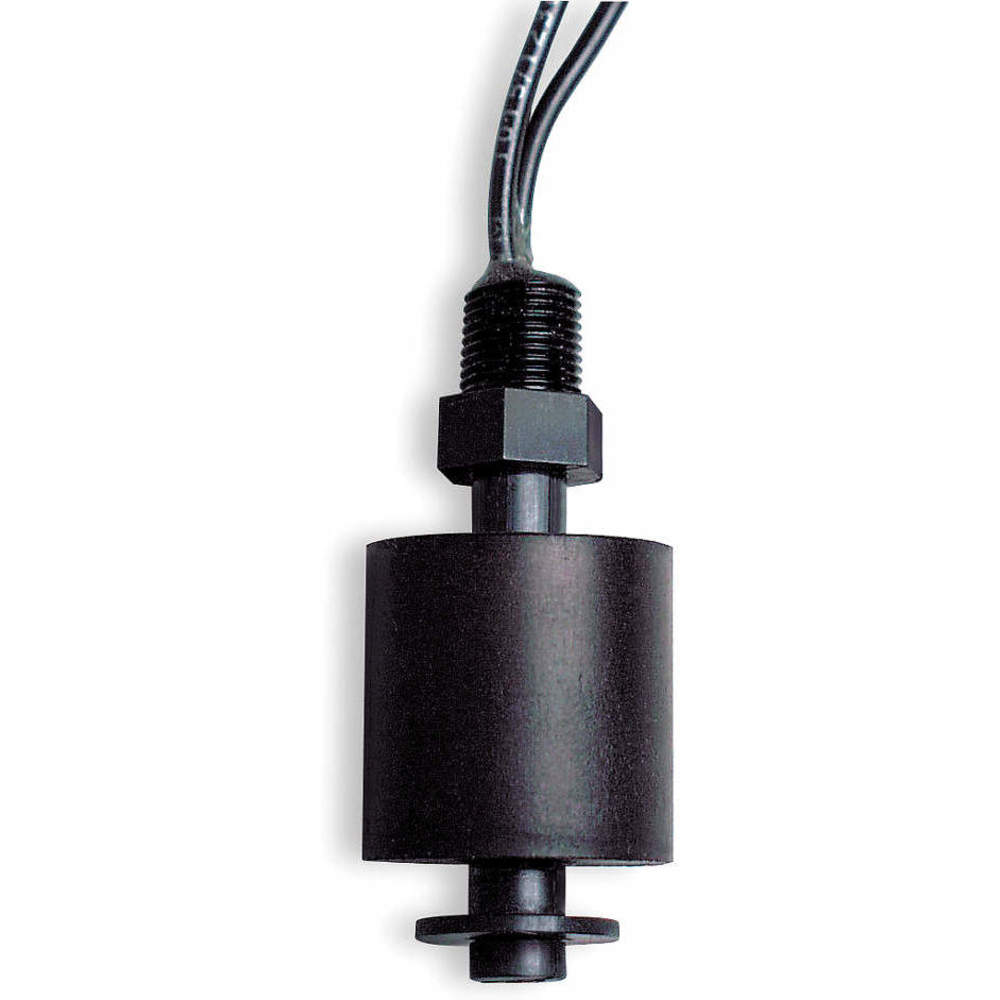

| H | M7000 | 1" | 1" | PBT | 221°F | Vertical Open Tank | Buna N | 0.28A | PBT | €28.27 | |
| I | M5970 | 1" | 1" | Stainless Steel | 392°F | Side | Stainless Steel | 0.28A | Stainless Steel | €188.76 | |

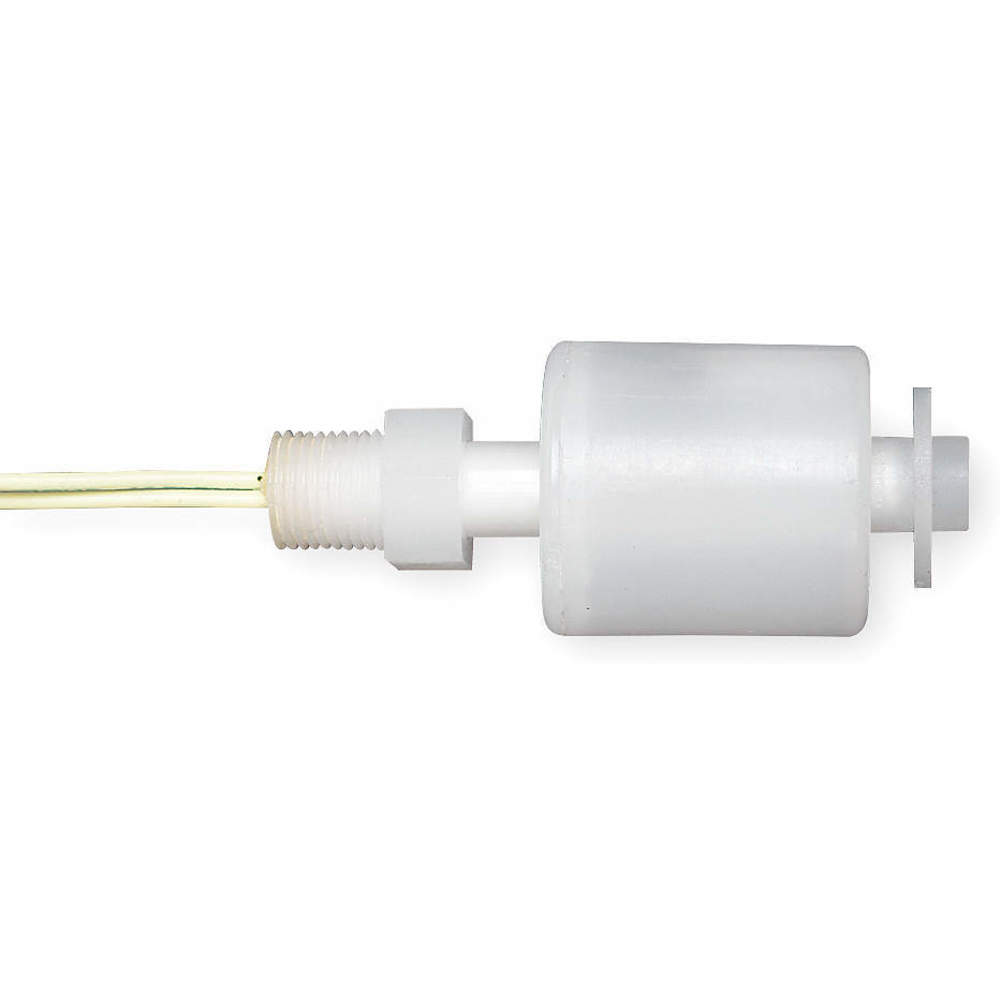

| J | M9000 | 1" | 1" | Kynar | 221°F | Vertical Open Tank | Kynar | 0.28A | Kynar | €46.82 | |

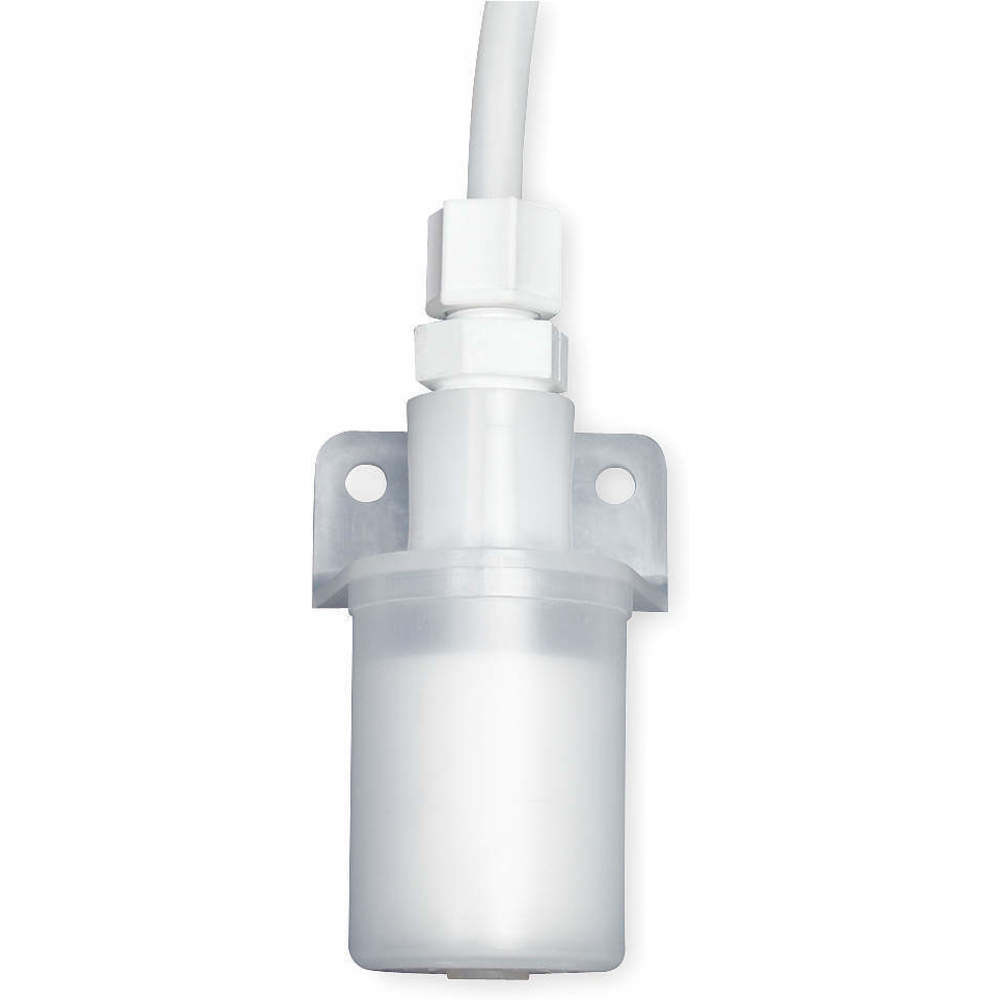

| K | MSB8800 | 2" | 1 1/2" | Polypropylene | 221°F | Vertical Open Tank | Polypropylene | 0.5A | Polypropylene | €150.95 | |
| L | M8800 | 2" | 1 1/2" | Polypropylene | 221°F | Vertical Open Tank | Polypropylene | 0.5A | Polypropylene | €86.81 | |
| M | M5910 | 2" | 0.63" | Stainless Steel | 392°F | Side | Stainless Steel | 0.28A | Stainless Steel | €235.04 | |
| N | M4300 | 2" | 1 1/4" | Brass | 221°F | Vertical Open Tank | Buna N | 0.5A | Brass | €86.63 | |

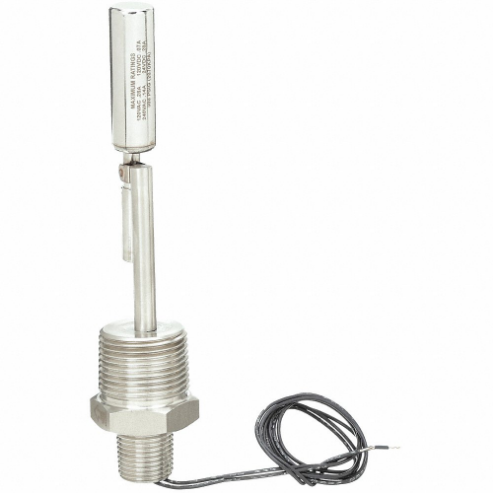

| O | M5900 | 2" | 0.63" | Stainless Steel | 392°F | Side | Stainless Steel | 0.28A | Stainless Steel | €236.38 | |

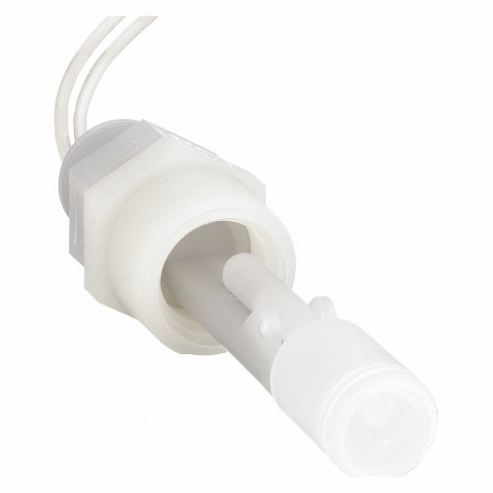

| P | M8700-C | 2.06" | 1/2" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | €31.15 | |

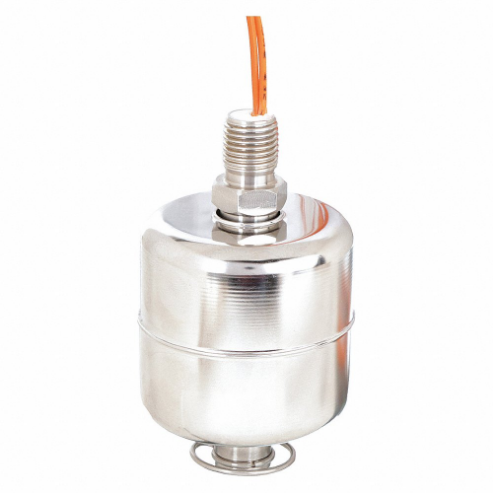

| Q | M5917 | 2.08" | 2.13" | Stainless Steel | 482°F | Vertical Open Tank | Stainless Steel | 0.5A | Stainless Steel | €154.83 | |

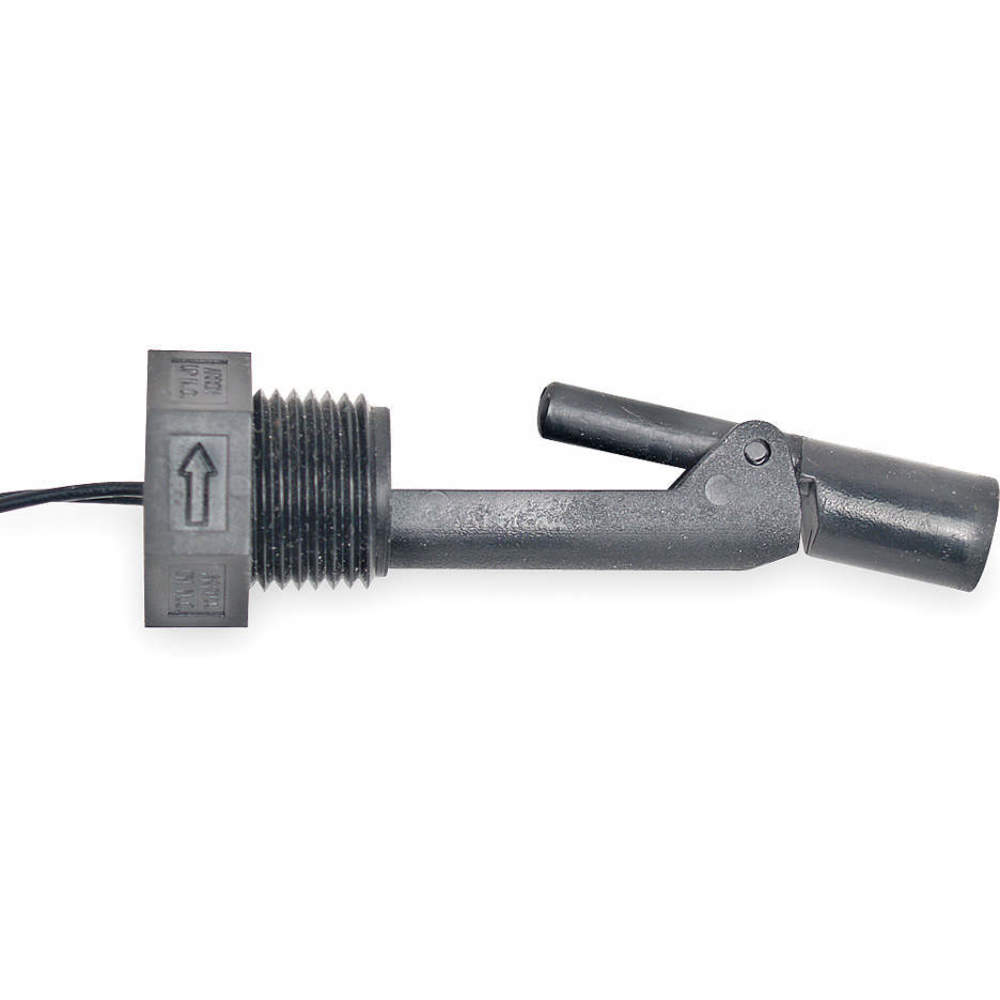

| R | M7750 | 2.11" | 0.65" | PBT | 266°F | Side | - | 0.28A | PBT | €38.11 | |

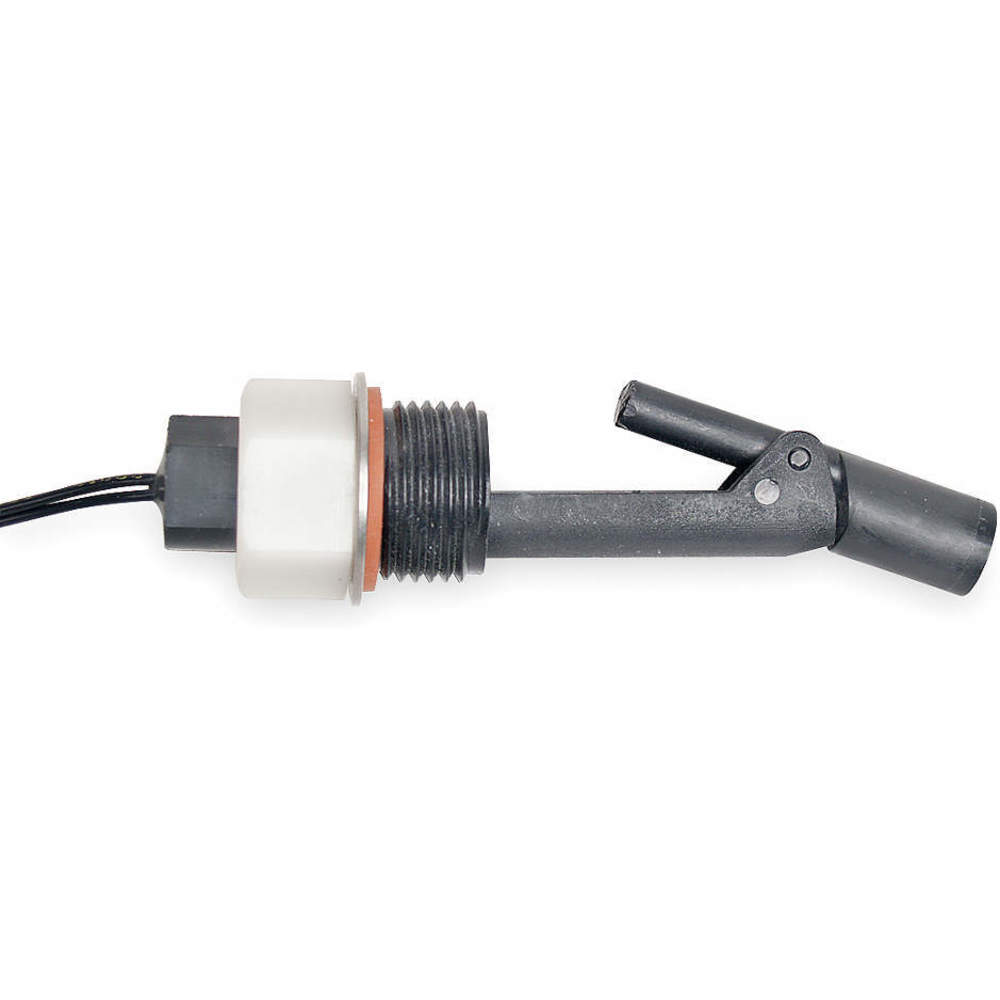

| S | M7740 | 2.11" | 0.65" | PBT | 266°F | Side | PBT | 0.28A | PBT | €38.61 | |

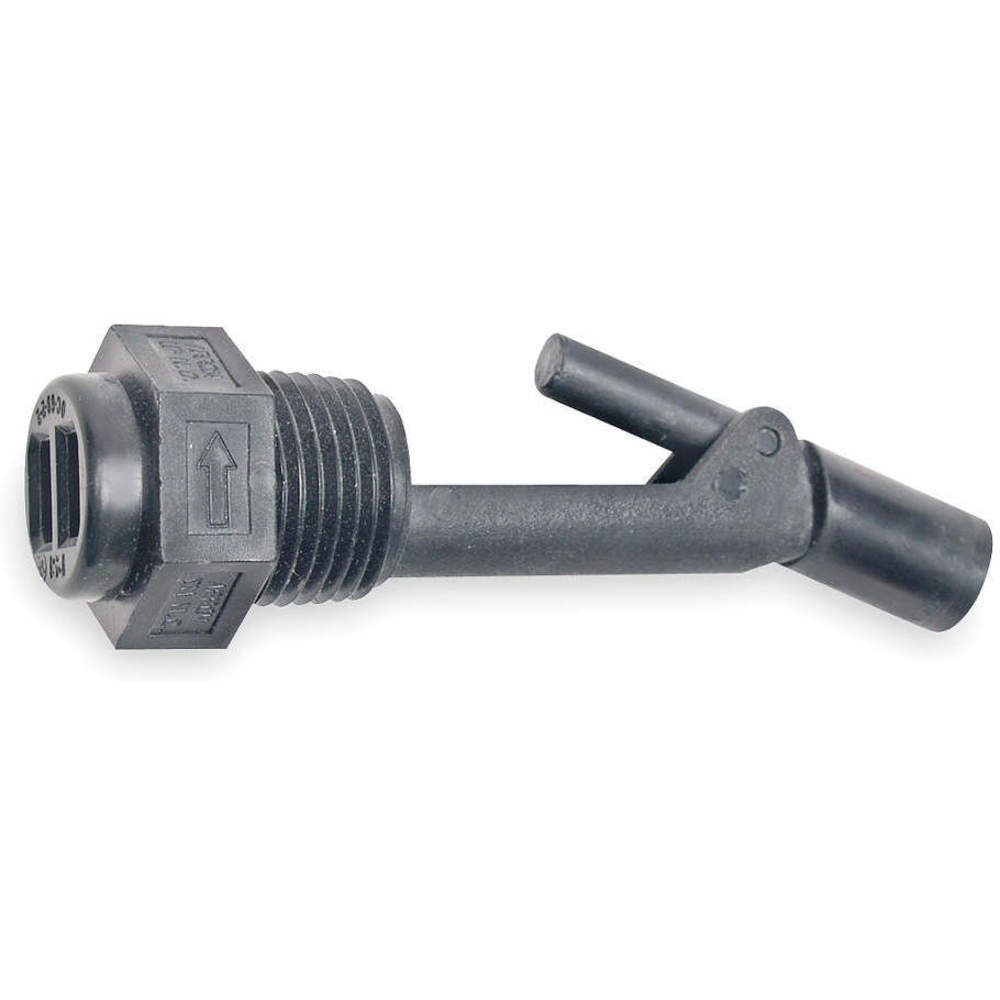

| T | M7725 | 2.11" | 0.65" | PBT | 266°F | Side | PBT | 0.28A | PBT | €41.38 | |

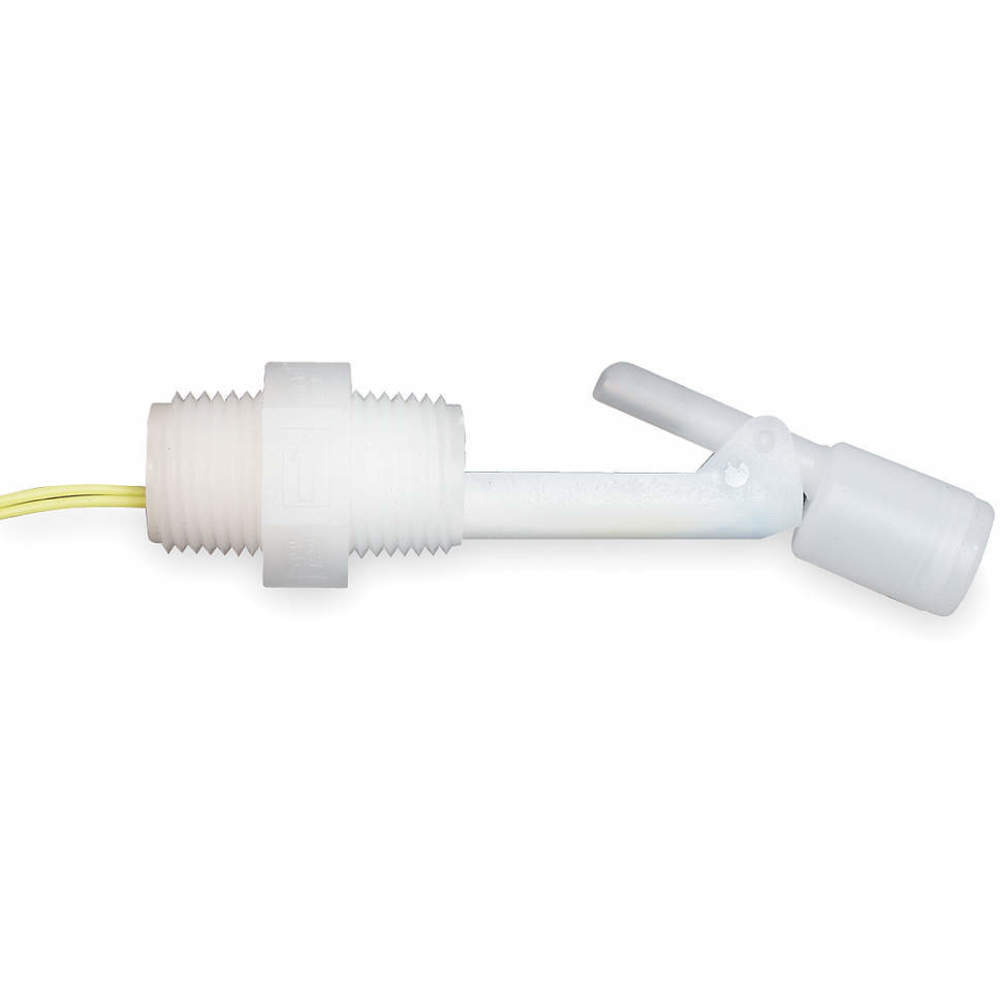

| U | M9700 | 2.11" | 0.65" | Kynar | 221°F | Side | Kynar | 0.28A | Kynar | €52.31 | |
| V | M9705 | 2.11" | 0.65" | Kynar | 221°F | Side | Kynar | 0.28A | Kynar | €87.01 | |

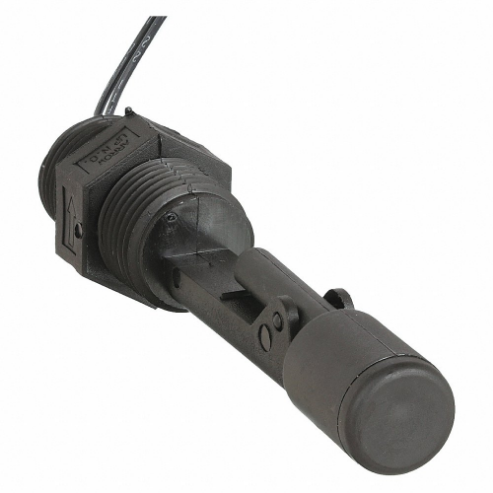

| W | M7700 | 2.11" | 0.65" | PBT | 149°F | Side | PBT | 0.28A | PBT | €32.73 | |

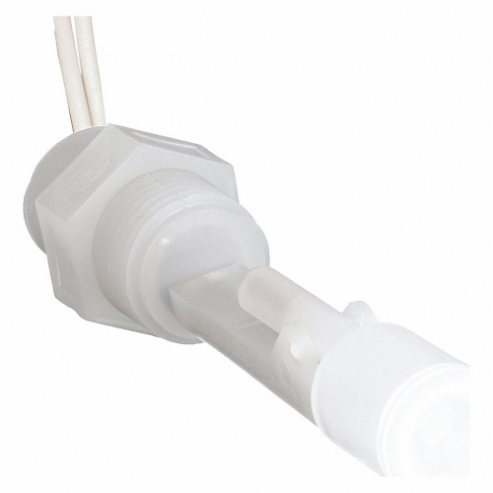

| X | M8700 | 2.11" | 0.65" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | €21.75 | |

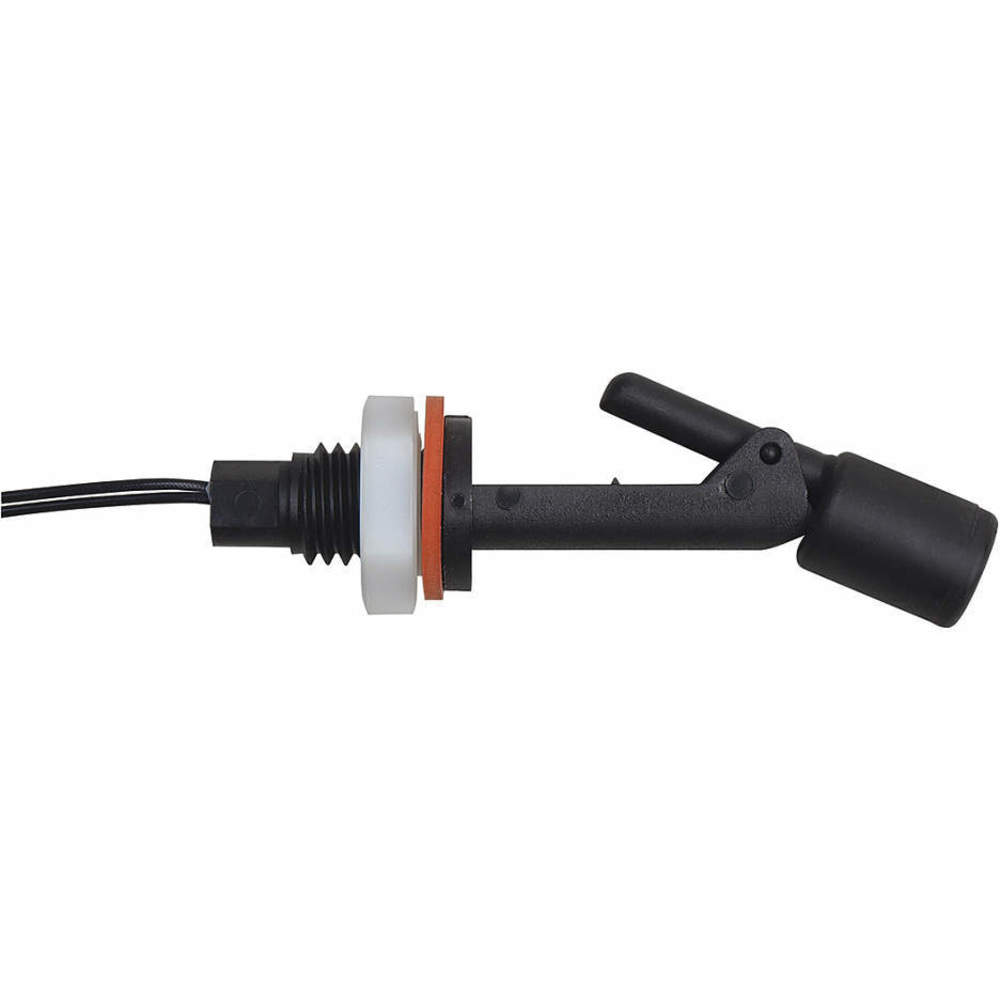

| Y | M7790 | 2.11" | 0.65" | PBT | 266°F | Side | PBT | 0.28A | PBT | €41.08 |
Working Mechanism
- Install the liquid level switch in the desired tank or container, ensuring proper positioning and mounting to allow free movement of the float with the liquid level changes.
- Connect the electrical contacts of the liquid level switch to the appropriate circuit or control system.
- Set the desired level thresholds for the switch by adjusting the positioning of the float.
- When the process liquid displaces the float, the float lever pivots within the body.
- The magnet on the float lever's opposite end controls a second magnet on the switch actuating lever in the switch housing.
Features
- Madison plastic single-point liquid level switches feature a selectable switch function, allowing for versatile application adaptability.
- They come with a vertical / horizontal open tank mounting design, optimising liquid level monitoring in various industrial contexts.
- These liquid level switches are equipped with a Buna N float material, enhancing durability and reliability in liquid environments.
- They feature an SPST / SPDT contact form, providing a reliable single-pole, single-throw electrical connection.
- These liquid level switches have an operating temperature of up to 149 / 221 / 266 / 392 / 482 degrees F, ensuring performance in diverse temperature conditions.
Frequently Asked Questions
What is the purpose of the float level sensor?
These continuous-level sensors feature a magnetic float that can rise and fall as liquid levels change. The float movement creates a magnetic field that actuates a hermetically sealed reed switch (located in the stem of the liquid sensor), thereby triggering the switch to open / close.
What are side mount level switches used for?
The side mount level switches can rotate 180 degrees and monitor liquid rise or fall in a tank. These encapsulated, magnetically coupled dry reed units can deliver more than 5 million switching cycles to control motor starters, solenoids, contractors and relays.
