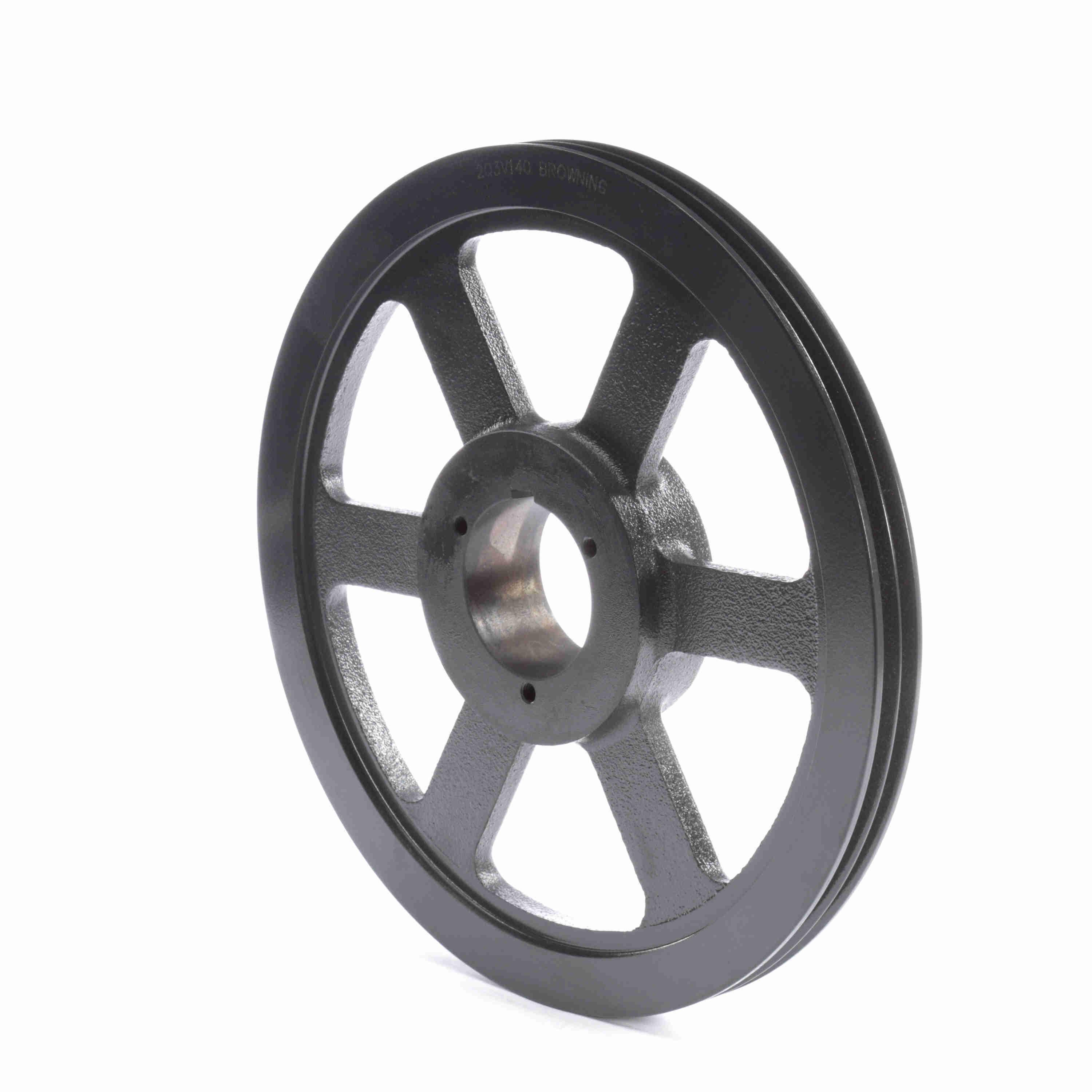

BROWNING 1060896 2Q3V140 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron, 14 in OD, 3/4 to 2-11/16 in Bore Dia, 13.94 in Pitch Dia, Q1 Bushing Type
Get it by Friday, Aug 14
€695.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1 3/32" |
| Hub Projection | 0.32813" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 13.95" |
| Min. Pitch Dia. | 13.95" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 14" |
| Overall Length | 2 25/32" |
| Pitch Dia. | 13.94" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 16 Arm |
Shipping Info:
| Ship weight (kg) | 10.49 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Hub Projection | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1059369 | 3.3" | 3/8" to 1 1/2" | Type H2 | - | - | H | 13/32" | - | €252.22 | |
 |
1059955 | 4.07" | 0.38" to 1.5" | Type H-4 | - | - | H | - | 3/8" to 1 1/2" | €224.31 | |
 |
1060292 | 5 1/4" | 1/2" to 1 3/4" | Type 2 | 5 1/4" | 5 1/4" | P1 | - | - | €266.98 | |
 |
1060011 | 4.45" | 0.38" to 1.5" | Type H-4 | - | - | H | - | 3/8" to 1 1/2" | €317.15 | |
 |
1060573 | 6.45" | 3/4" to 2 11/16" | Type 16 Arm | - | - | Q1 | 0.32813" | - | €267.78 | |
 |
1060813 | 10.55" | 3/4" to 2 11/16" | Type 16 Arm | - | - | Q1 | 0.32813" | - | €453.85 | |
 |
1060037 | 4.45" | 1/2" to 1 3/4" | Type 2 | - | - | P1 | - | - | €237.75 |
