BROWNING 1060292 2P3V53 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Item: AZ9BMJModel: 1060292Cross Ref: 2P3V53
7 In Stock
Ships within 2 days via
€266.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1 3/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 1/4" |
| Min. Pitch Dia. | 5 1/4" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 5.3" |
| Overall Length | 2 3/16" |
| Pitch Dia. | 5 1/4" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 2 |
| Weight | 2.54 Kg |
Shipping Info:
| Ship weight (kg) | 2.51 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 13.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Type | Overall Length | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1059369 | 3.35" | 3/8" to 1 1/2" | Type H2 | 1 21/32" | Split Taper | Cast Iron | 1 3/32" | €252.22 | |
 |

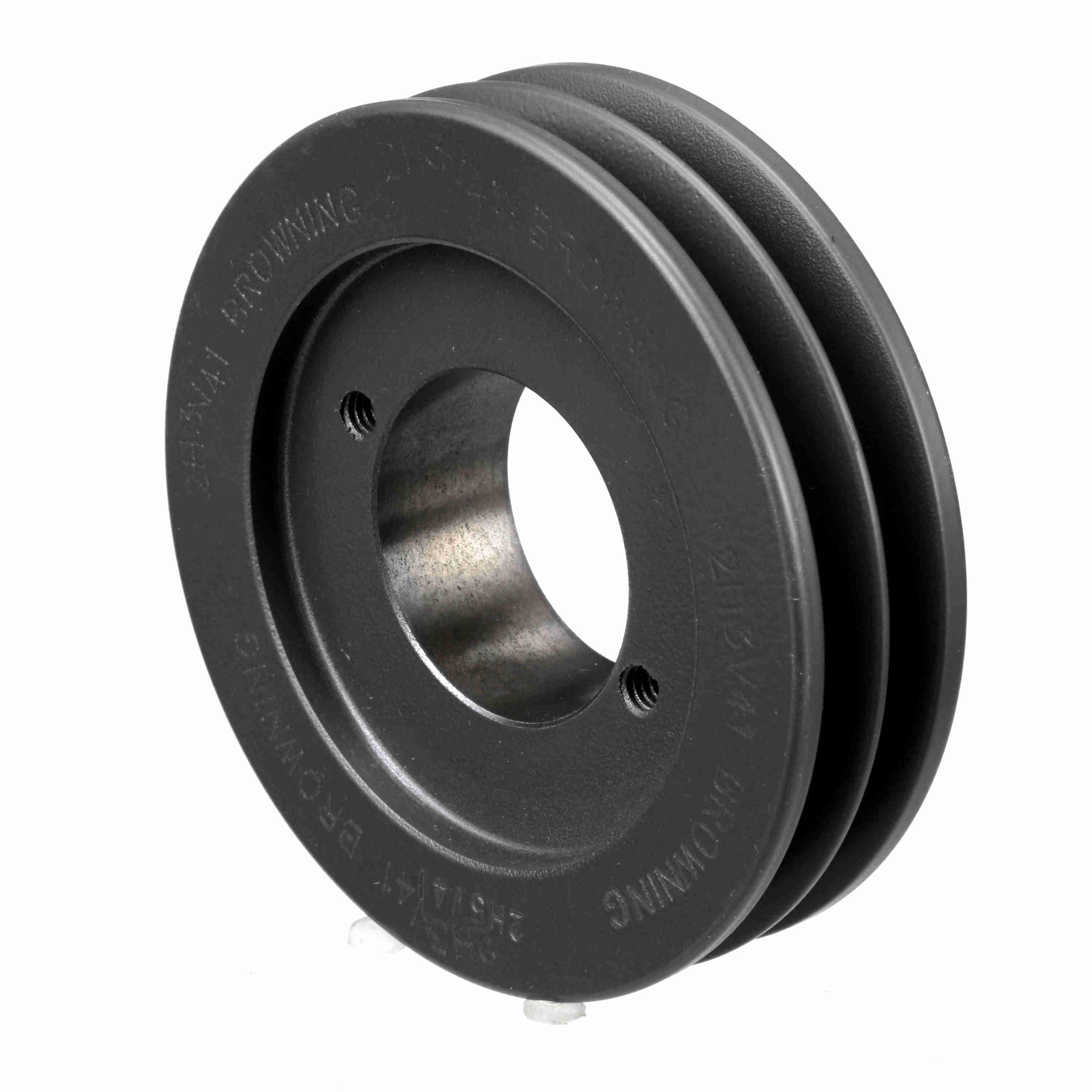

1059955 | 4 3/25" | 0.38" to 1.5" | Type H-4 | 1 1/2" | Split Taper | Cast Iron | 1 3/32" | €224.31 | |
 |

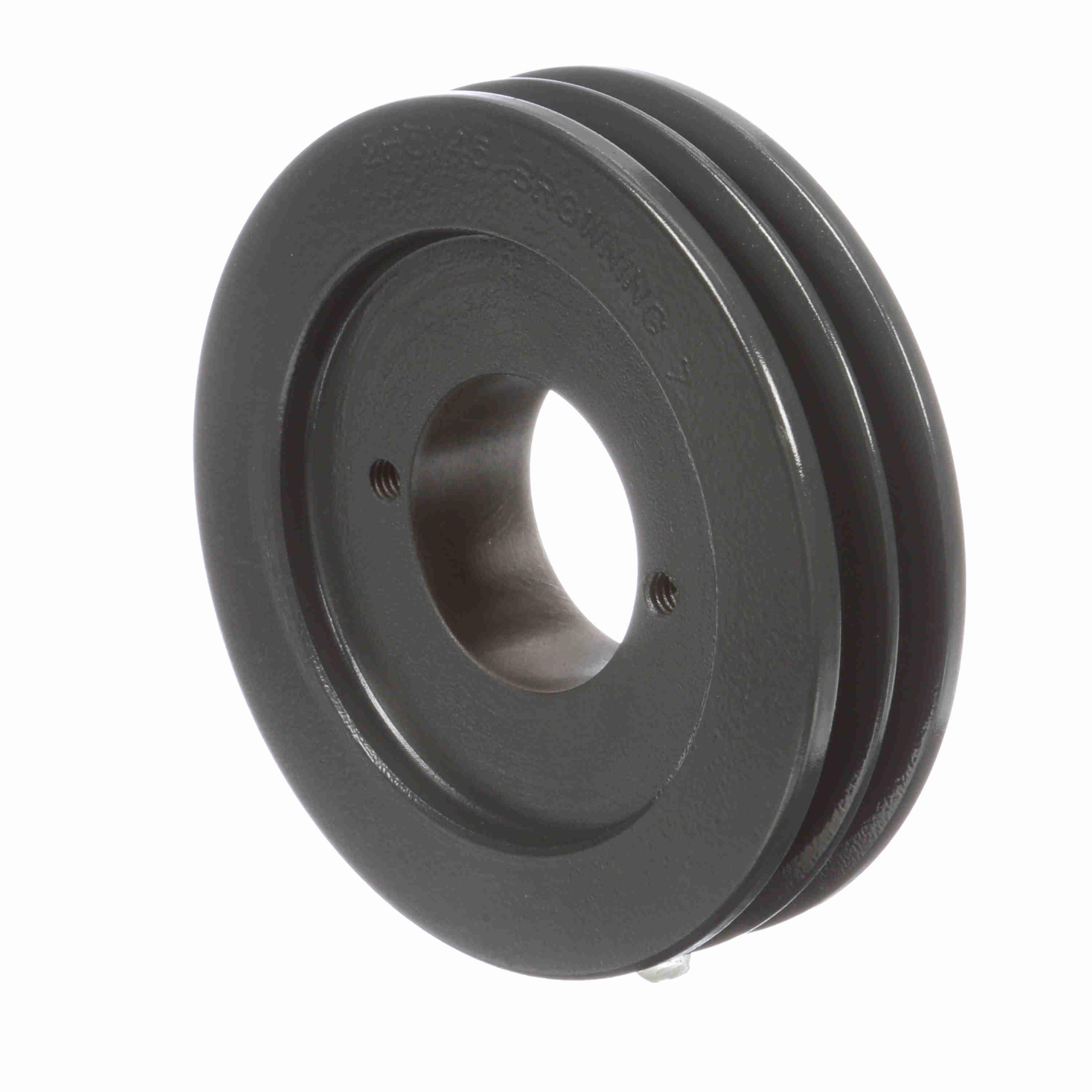

1060011 | 4 1/2" | 0.38" to 1.5" | Type H-4 | 1 1/2" | Split Taper | Cast Iron | 1 3/32" | €317.15 | |
 |
1060573 | 6 1/2" | 3/4" to 2 11/16" | Type 16 Arm | 2 25/32" | Split Taper | Cast Iron | 1 3/32" | €267.78 | |
 |

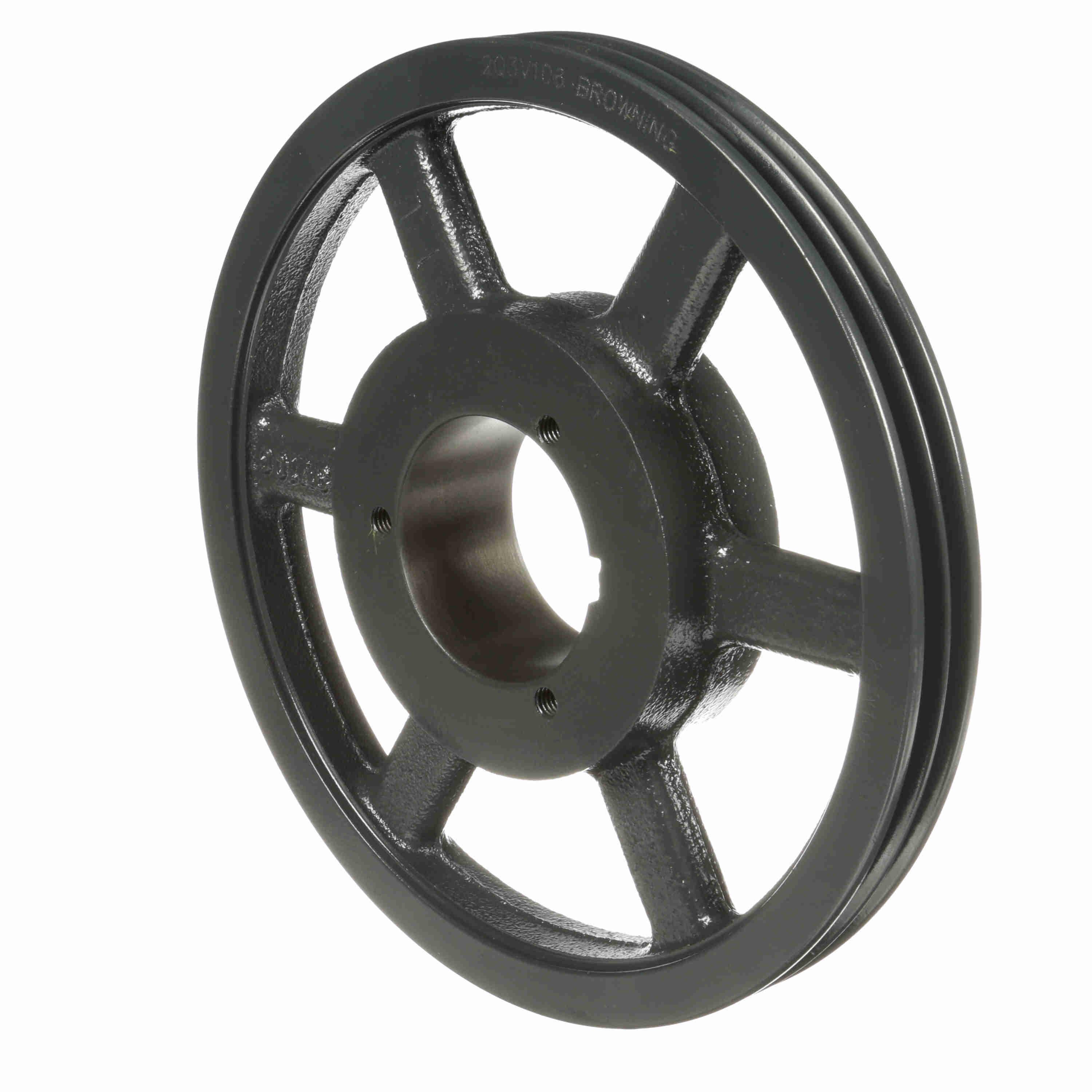

1060813 | 10 3/5" | 3/4" to 2 11/16" | Type 16 Arm | 2 25/32" | Split Taper | Cast Iron | 1 3/32" | €453.85 | |
 |

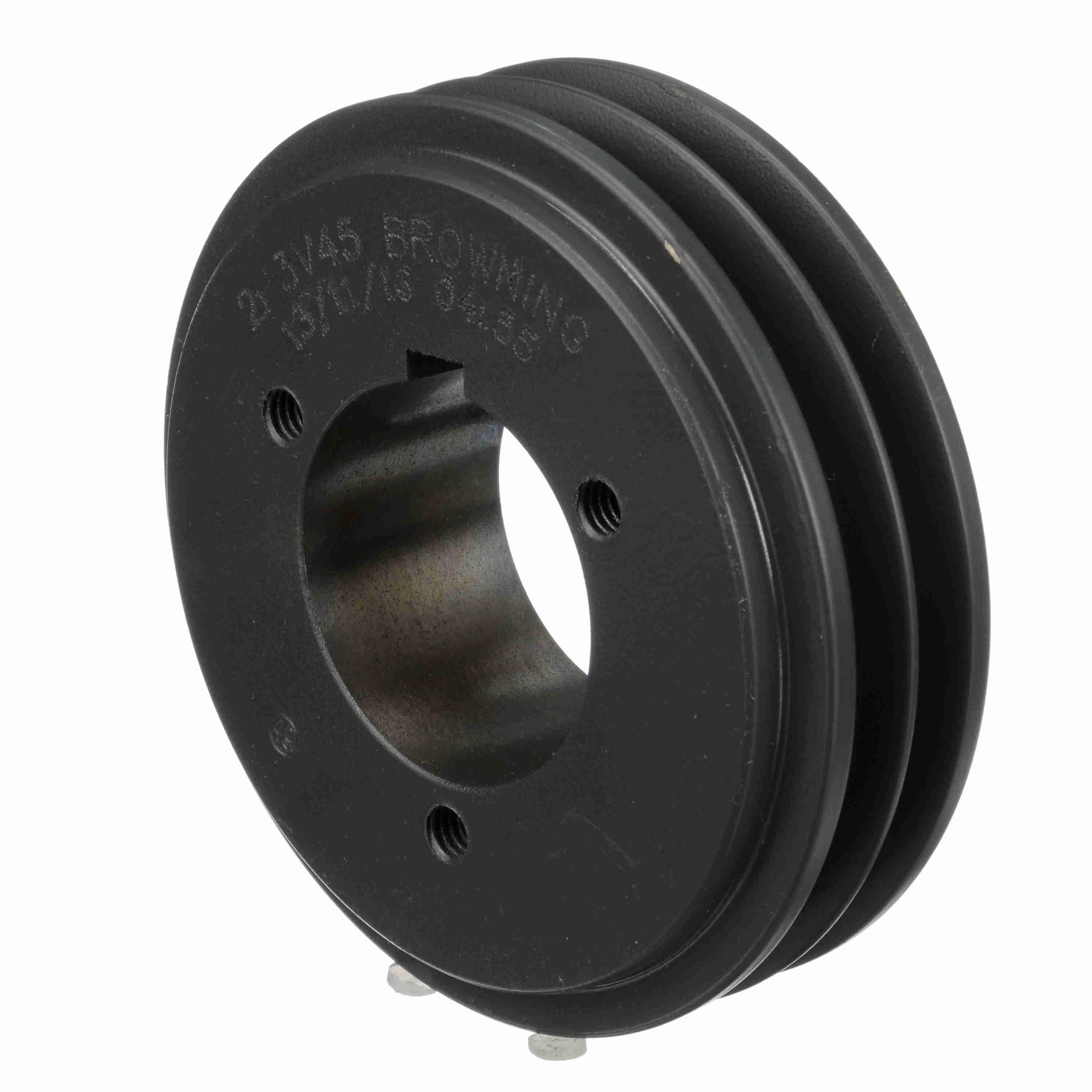

1060037 | 4 1/2" | 1/2" to 1 3/4" | Type 2 | 2 3/16" | Split Taper | Cast Iron | 1 3/32" | €237.75 | |
 |

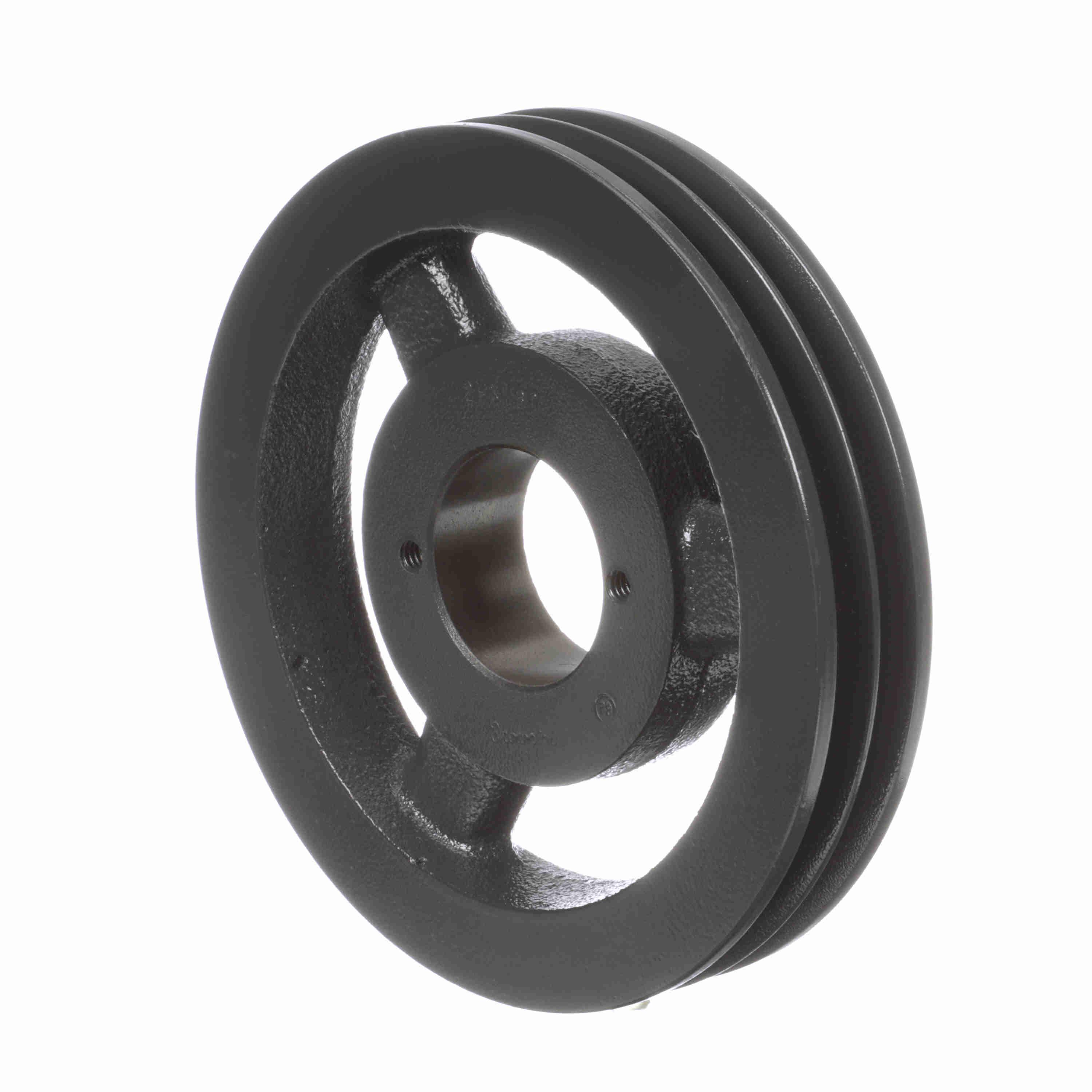

1060474 | 6" | 0.38" to 1.5" | Type H-4 | 1 1/2" | Split Taper | Cast Iron | 1 3/32" | €390.06 |
