Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 11/16" |
| Hub Dia. | 2 1/2" |
| Hub Projection | 21/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 4 1/2" |
| Overall Length | 1 1/2" |
| Pitch Dia. | 4.45" |
| Suitable For Use With | 3V-Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type H3 |
| Weight | 1.086 Kg |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Bore Type | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1059963 | 4 3/25" | 1/2" to 1 3/4" | 2 9/64" | Type 2 | Cast Iron | Split Taper | 11/16" | €136.50 | |
![]() |
1060185 | 5" | 1/2" to 1 3/4" | 2 9/64" | Type 2 | Cast Iron | Split Taper | 11/16" | €157.95 | |
![]() |
1060722 | 8" | 1/2" to 1 3/4" | 2 9/64" | Arm Type 16 | Cast Iron | Split Taper | 11/16" | €277.13 | |
![]() |
1060169 | 5" | 3/8" to 1 1/2" | 1 1/2" | Type H3 | Cast Iron | Split Taper | 11/16" | €177.37 | |
![]() |
1059906 | 3.65" | 1/2" to 1 3/4" | 2 9/64" | Type 2 | Cast Iron | Split Taper | 11/16" | €213.99 | |
![]() |
1060805 | 10 3/5" | 1/2" to 1 3/4" | 2 9/64" | Arm Type 16 | Cast Iron | Split Taper | 11/16" | €612.30 | |
![]() |
1059880 | 3.65" | 3/8" to 1 1/2" | 1 1/2" | Type H3 | Cast Iron | - | 11/16" | €146.83 |
Explore Products
- GATES 42195651 Fuel Hose, 0.25 Inch I.D, 0.5 Inch O.D, 225 PSI, Black
- EATON 78163-RBA-03
- MAIN FILTER INC. MF0109878 920090001 Interchange Spin-On Filter, Cellulose, 10 Micron Rating, Buna Seal, 7.02 Inch Height
- BAYCO PRODUCTS SL-513-BULB Work Light Lamp
- CLEVELAND C60589 0 Corner Radius End Mill, 5 Flutes, 3/4 Inch Milling Dia, 1 Inch Length Of Cut
- FASCO D202 Fan and Blower Motor, 1/85 HP, 1 Phase, 60 Hz, 115 V, 3000 RPM, 1 Speed, 3.3 Inch Diameter
- APOLLO VALVES 4ALF70EG10 RPDALF4AOFPIGLM8 Backflow Preventers RPDA, 8 Inch Size, OS and YXPIV, FXG, NO MTR
- AIGNEP 50925N-12-3/8 Flow Control Needle Valve, Knob, 12mm Tube x 3/8 Inch Swift-Fit
Explore More
- BAYCO PRODUCTS
- DOMINATOR
- KEYSHAFT
- BLUE WAVE PRODUCTS
- KTI
- Electronic Siren Systems
- Pilot and Ignition Components
- Pipe Locators
- Below-the-Hook Pallet Lifters
- Fork Covers
- DWYER INSTRUMENTS TS-PROBES Series Digital Temperature Switch Probes
- CONDOR Goatskin Leather Gloves, White
- DESTACO 207 Series Vertical Hold Down Clamps, Straight Base, U Bar
- JOHN GUEST Metric Male Connectors, BSPP Thread, Acetal Black
- AMERICAN WELDQUIP Welding Gooseneck
- PARKER Reservoir Isolators
- BALDOR / DODGE Tigear-2 Standard Reducer With Separate Input,Size 40
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

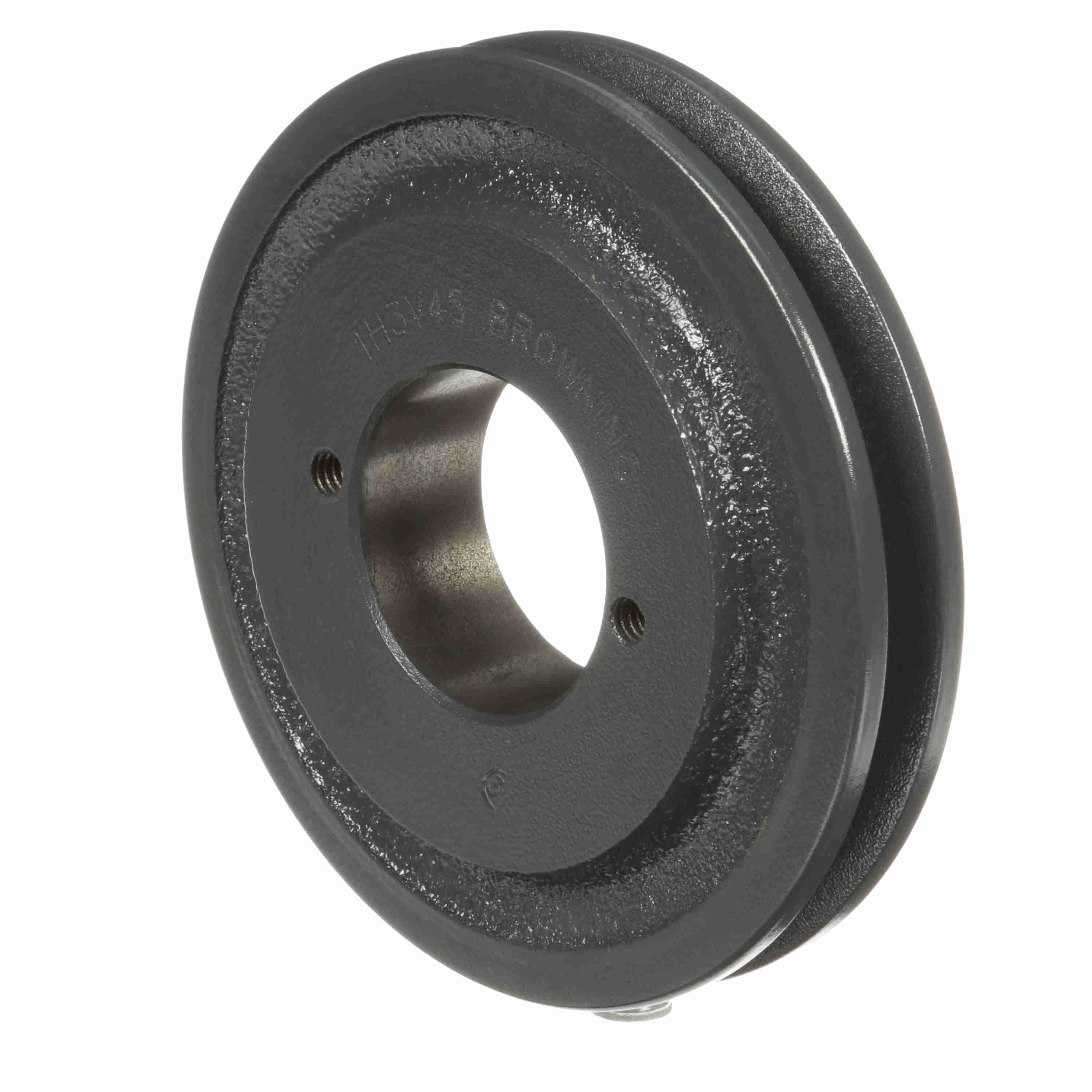

BROWNING 1060003 1H3V45 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
