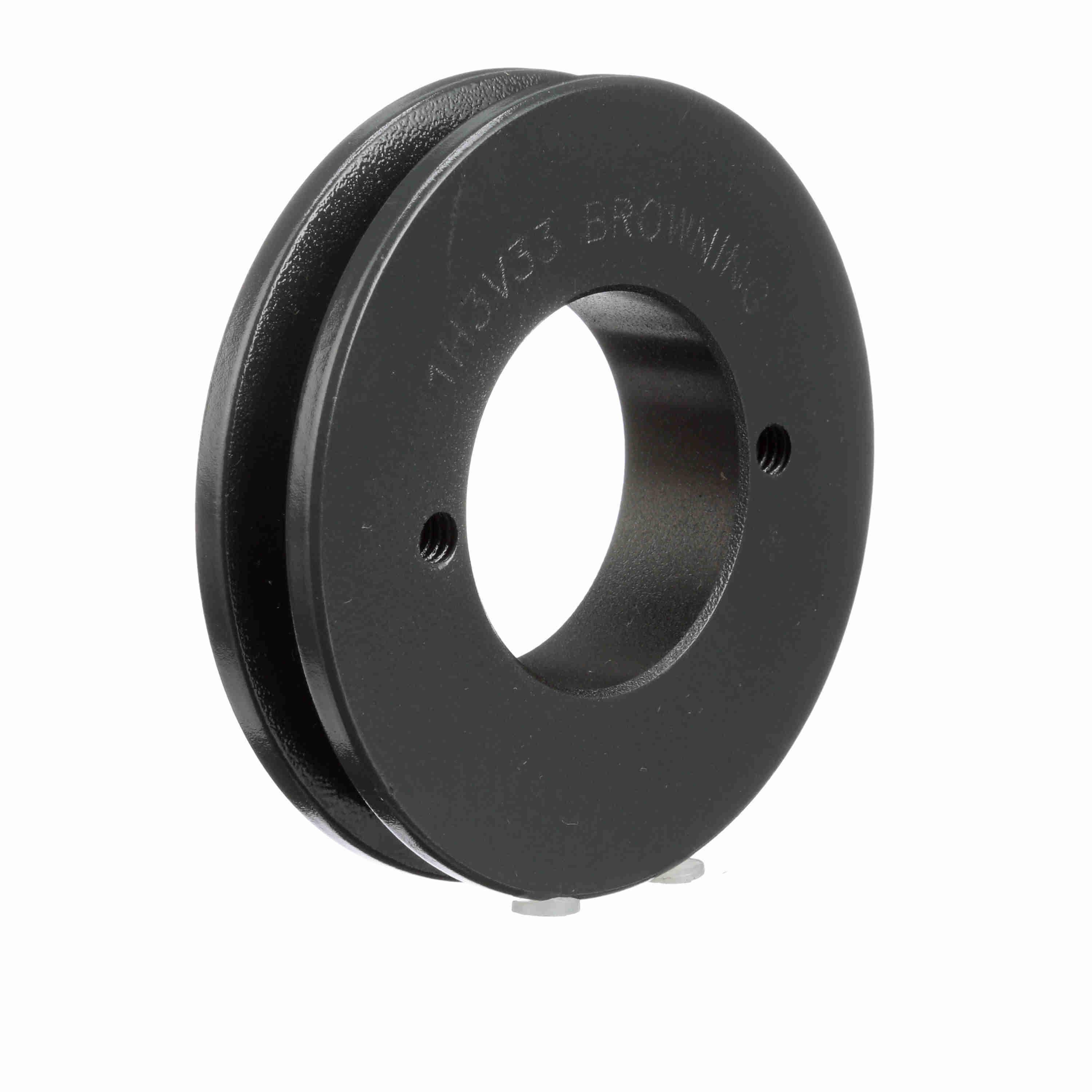

BROWNING 1059351 1H3V33 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
Item: BA3LTJModel: 1059351Cross Ref: 1H3V33
7 In Stock
Ships within 2 days via
€140.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 11/16" |
| Hub Dia. | 2 1/2" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 3.35" |
| Overall Length | 1 5/16" |
| Pitch Dia. | 3.3" |
| Suitable For Use With | 3V-Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type H1 |
| Weight | 0.41 Kg |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 9.04 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Bore Type | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1059963 | 4 3/25" | 1/2" to 1 3/4" | 2 9/64" | Type 2 | Cast Iron | Split Taper | 11/16" | €136.50 | |
 |
1060185 | 5" | 1/2" to 1 3/4" | 2 9/64" | Type 2 | Cast Iron | Split Taper | 11/16" | €157.95 | |
 |
1060722 | 8" | 1/2" to 1 3/4" | 2 9/64" | Arm Type 16 | Cast Iron | Split Taper | 11/16" | €277.13 | |
 |
1060169 | 5" | 3/8" to 1 1/2" | 1 1/2" | Type H3 | Cast Iron | Split Taper | 11/16" | €177.37 | |
 |
1059906 | 3.65" | 1/2" to 1 3/4" | 2 9/64" | Type 2 | Cast Iron | Split Taper | 11/16" | €213.99 | |
 |
1060805 | 10 3/5" | 1/2" to 1 3/4" | 2 9/64" | Arm Type 16 | Cast Iron | Split Taper | 11/16" | €612.30 | |
 |
1059880 | 3.65" | 3/8" to 1 1/2" | 1 1/2" | Type H3 | Cast Iron | - | 11/16" | €146.83 |
