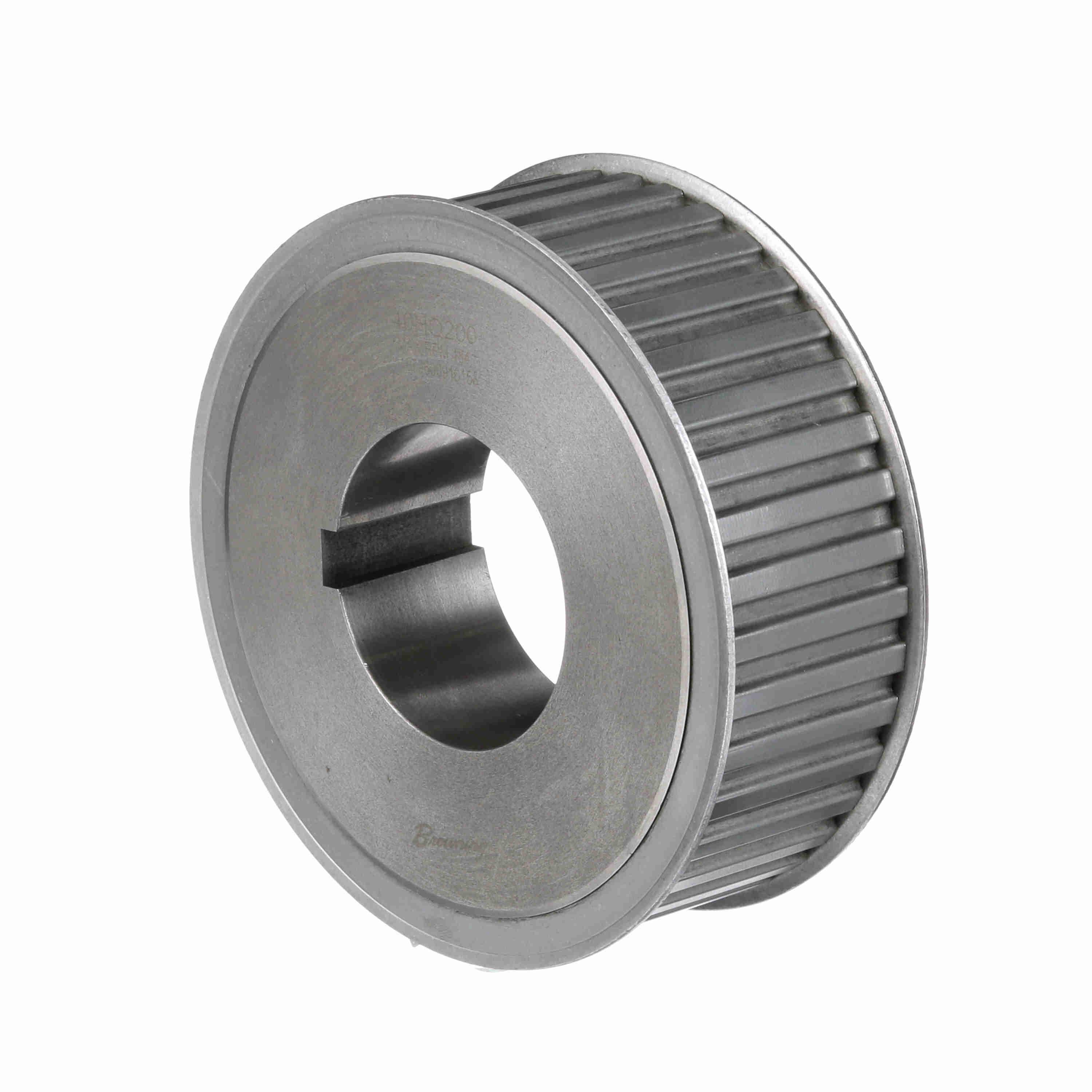

BROWNING 1057371 40HQ200 Gearbelt Pulley, Bushed Bore, Steel, 6.312 in OD, 3/4 to 2-11/16 in Bore Dia, 6.366 in Pitch Dia, Type 11, Q1 Bushing Type, 2.281 in Face Width
Get it by Tuesday, Jun 30
€637.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2.344" |
| Flange | Yes |
| Flange Dia. | 6 9/16" |
| For Belt Width | 2" |
| For Use With | 2 Inch Width Type H200 Belt |
| Hub Dia. | 4 1/8" |
| Hub Projection | 0.219" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Teeth | 40 |
| Other Features | Heavy, Split Taper Bushing, Type 11 |
| Outside Dia. | 6.312" |
| Overall Length | 2 25/32" |
| Pitch Dia. | 6.366" |
| System Of Measurement | Imperial |
| Type | Type 11 |
Shipping Info:
| Ship weight (kg) | 5.69 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 16.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1057306 | 3.501" | 3.447" | 3/4" to 1 3/4" | Type 6 | 3" | 5/8" | 3 13/16" | Split Taper | €402.24 | |
 |
1057314 | 3.82" | 3.766" | 3/4" to 1 3/4" | Type 6 | 3" | 5/8" | 4.166667" | Split Taper | €435.95 | |
 |
1057322 | 4.138" | 4.084" | 3/4" to 1 3/4" | Type 6 | 3" | 5/8" | 4 3/8" | Split Taper | €489.73 | |
 |
1057389 | 7.003" | 6.949" | 3/4" to 2 11/16" | Type 11 | 4 1/8" | 7/32" | 7 1/4" | Split Taper | €513.31 | |
 |
1057397 | 7.639" | 7.585" | 3/4" to 2 11/16" | Type 11 | 4 1/8" | 0.219" | 7 7/8" | Split Taper | €575.56 | |
 |
1057439 | 15.279" | 15.225" | 1 1/8" to 3 3/4" | Type 14 | 5 3/8" | 0.734" | - | Split Taper | €1,234.92 | |
 |
1057363 | 5.73" | 5.676" | 3/4" to 2 11/16" | Type 11 | 4 1/8" | 0.219" | 6" | Split Taper | €508.05 |
