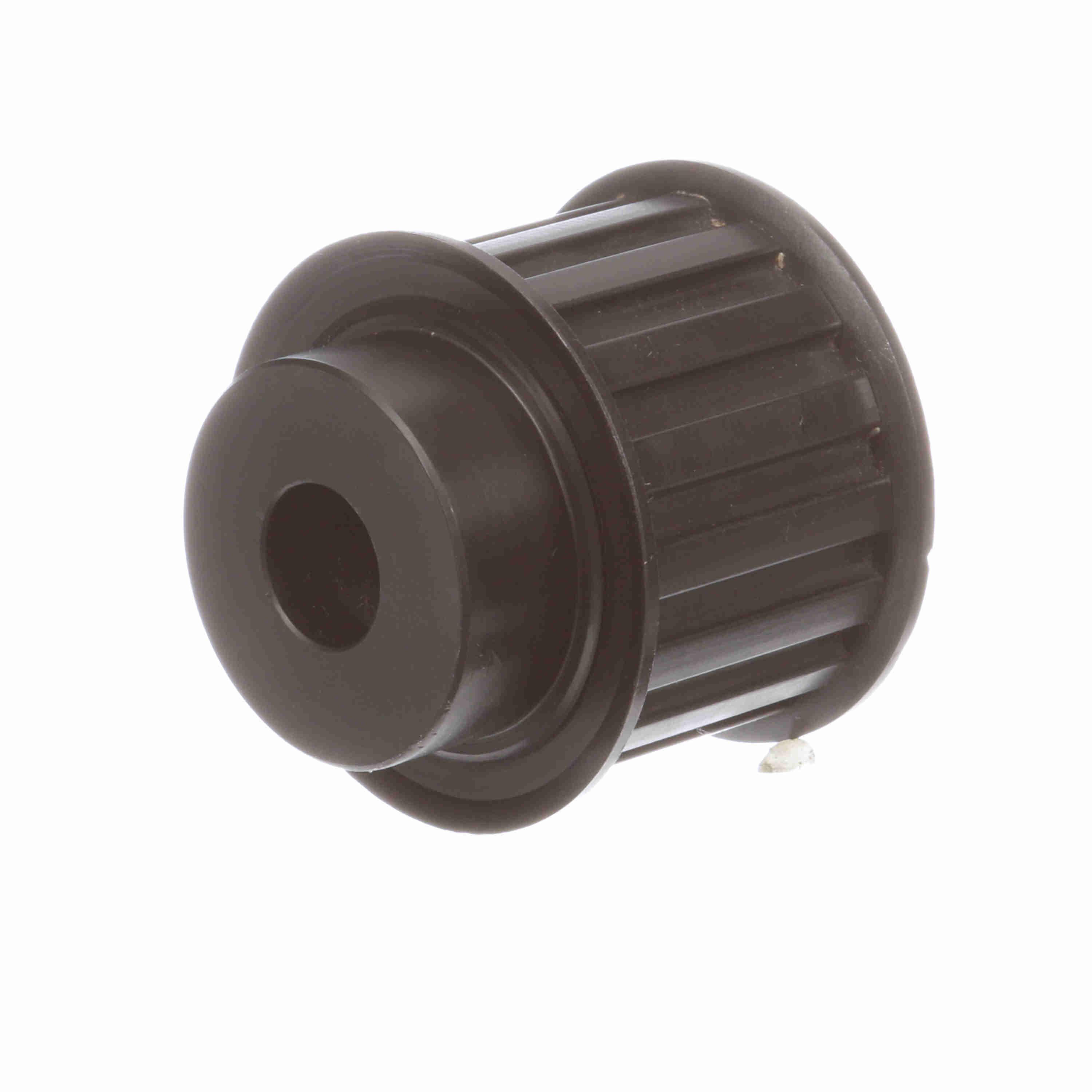

BROWNING 1055532 16HB150 Gearbelt Pulley, Rough Bore, Steel
Item: AX3WRVModel: 1055532Cross Ref: 16HB150
7 In Stock
Ships within 2 days via
€314.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 3/4" to 1 1/8" |
| Bushing Type | MPB |
| Face Width | 1.813" |
| Flange | Yes |
| Flange Dia. | 2 7/8" |
| For Belt Width | 1 1/2" |
| For Use With | 1-1/2 Inch Width Type H150 Belt |
| Hub Dia. | 1 7/8" |
| Hub Projection | 3/4" |
| Keyway | No |
| Max. Bore | 1 1/8" |
| Min. Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 16 |
| Other Features | Heavy, Type 2 |
| Outside Dia. | 2.492" |
| Overall Length | 2 1/2" |
| Pitch Dia. | 2.546" |
| System Of Measurement | Imperial |
| Type | Type 2 |
| Weight | 1.209 Kg |
Shipping Info:
| Ship weight (kg) | 1.19 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 7.87 |
| Ship width (cm) | 8.13 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Flange Dia. | Hub Dia. | Hub Projection | Max. Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1055565 | 19 | 3.024" | 2.97" | 3/4" to 1 1/2" | 3 3/8" | 2 3/8" | 3/4" | 1 1/2" | €526.98 | |
 |
1055573 | 20 | 3.183" | 3.129" | 3/4" to 1 5/8" | 3 3/8" | 2 1/2" | 7/8" | 1 5/8" | €306.09 | |
 |
1055607 | 24 | 3.82" | 3.766" | 3/4" to 1 7/8" | 4 1/16" | 3" | 1" | 1 7/8" | €404.42 | |
 |
1055623 | 28 | 4.456" | 4.402" | 3/4" to 2 5/16" | 4 11/16" | 3 1/2" | 1 1/8" | 2.313" | €442.46 | |
 |
1055631 | 30 | 4.775" | 4.721" | 3/4" to 2 3/8" | 5" | 3 5/8" | 1 1/8" | 2 3/8" | €393.37 | |
 |
1055557 | 18 | 2.865" | 2.811" | 3/4" to 1 3/8" | 3 3/8" | 2 1/4" | 3/4" | 1 3/8" | €400.18 | |
 |
1055599 | 22 | 3.501" | 3.447" | 3/4" to 1 3/4" | 3 13/16" | 2 3/4" | 1" | - | €775.96 |
