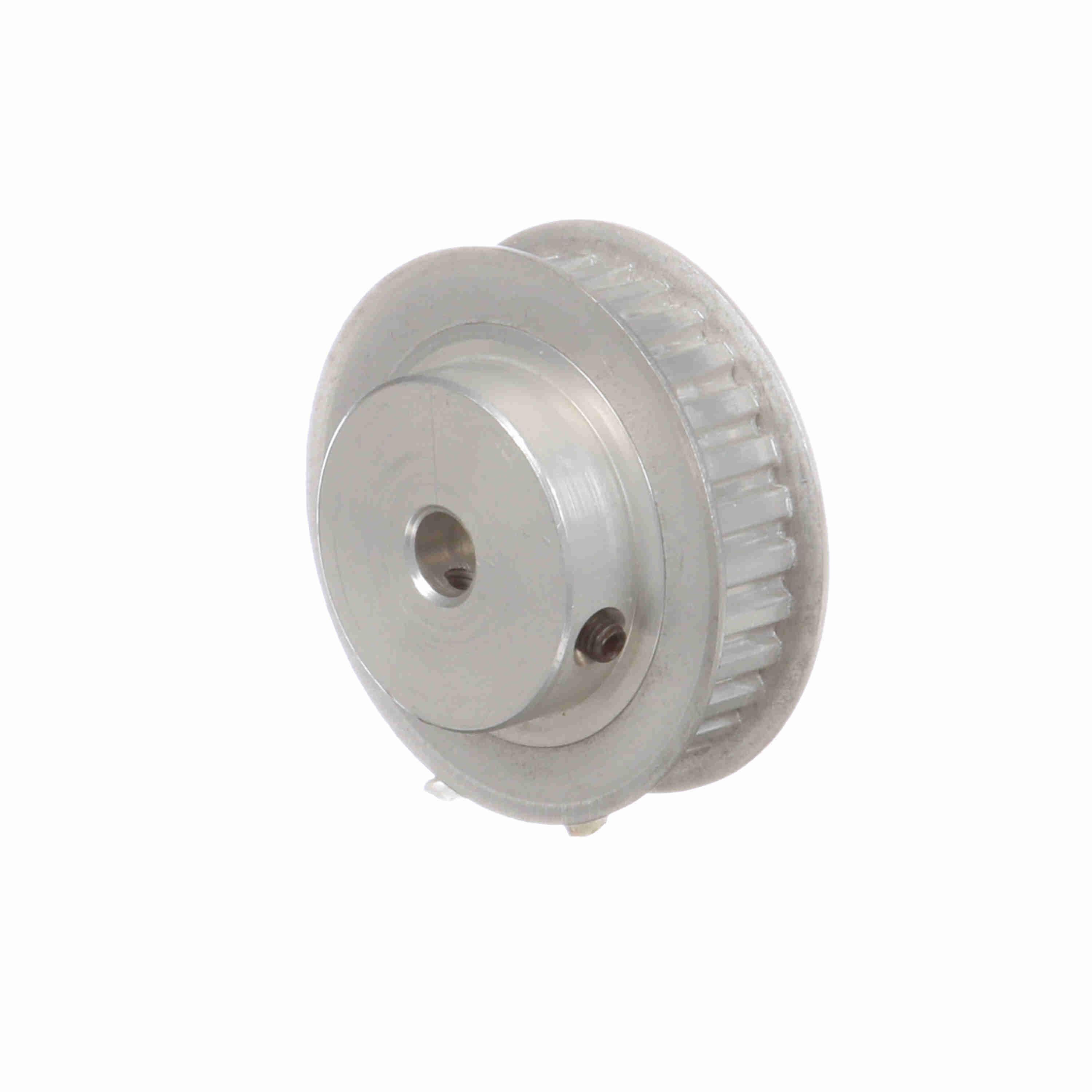

BROWNING 1054956 30XLB037 Gearbelt Pulley, Rough Bore, Steel
Item: AX3XNQModel: 1054956Cross Ref: 30XLB037
7 In Stock
30
Ships within 2 days via
€130.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/5" |
| Belt Style | XL |
| Bore Dia. | 1/4" to 15/16" |
| Bushing Type | MPB |
| Face Width | 0.563" |
| Flange | Yes |
| Flange Dia. | 2 1/8" |
| For Belt Width | 3/8" |
| For Use With | 3/8 Inch Width Type XL Belt |
| Hub Dia. | 1 3/8" |
| Hub Projection | 11/32" |
| Keyway | No |
| Material | Aluminum |
| Max. Bore | 0.938" |
| Min. Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 30 |
| Other Features | Extra Light, Type 2 |
| Outside Dia. | 1.89" |
| Overall Length | 29/32" |
| Pitch Dia. | 1.91" |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 6.6 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Bore Dia. | Material | Outside Dia. | Type | Hub Dia. | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1054964 | 32 | 2.037" | 5/16" to 1" | Aluminum | 2.017" | Type 2A | 1 1/2" | 7/16" | €185.72 | |
 |
1054972 | 36 | 2.292" | 5/16" to 1" | Aluminum | 2.272" | Type 2A | 1 1/2" | 7/16" | €271.61 | |
 |
1055037 | 72 | 4.584" | 3/8" to 1" | Aluminum | 4.564" | Type 2A | 1 1/2" | 0.438" | €296.67 | |
 |
1430701 | 10 | 0.637" | 3/16" | Steel | 0.617" | Type 2 | 7/16" | 1/4" | €102.89 | |
 |
1055029 | 60 | 3.82" | 3/8" to 1" | Aluminum | - | Type 2A | 1 1/2" | 7/16" | €236.78 | |
 |
1430735 | 14 | 0.891" | 1/4" | Steel | 0.871" | Type 2 | 9/16" | 1/4" | €59.64 | |
 |
1054923 | 22 | 1.401" | 1/4" to 5/8" | Aluminum | 1.381" | Type 2 | 1" | 11/32" | €123.68 |
